Digital Media Receiver featuring 6.8" Clear Resistive Touch Monitor / Wireless Apple CarPlay / Wireless Android Auto / 4-Cam Input / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ
SMARTPHONE
INTEGRATION
JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favourite apps and view content on a big screen, in comfort and safety.

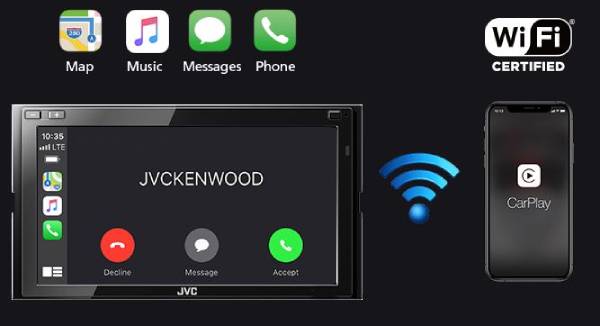

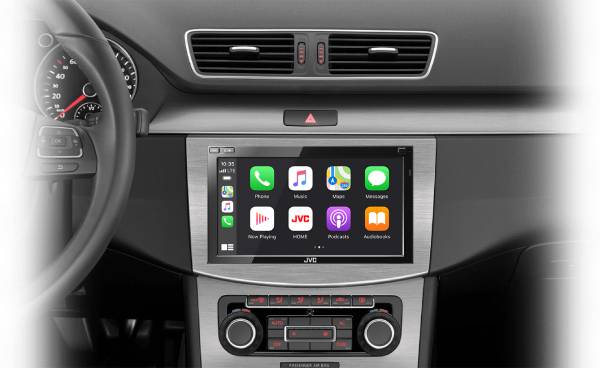

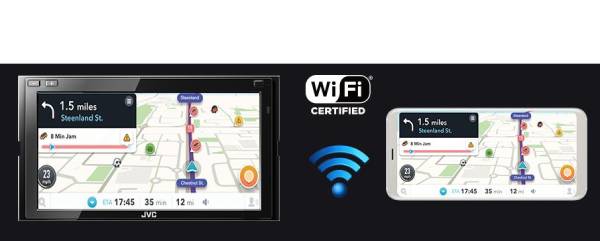

Apple CarPlay™ – Connect Wirelessly
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported

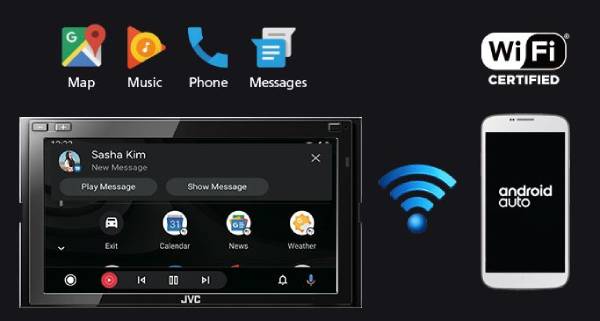

Android Auto™ – Connect Wirelessly
Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road. With the latest ANDROID OS version (PIE and higher), Google Maps™ and Waze™ are also supported.
Mirroring for Android Phones –
Connect Wirelessly
Wireless Mirroring for Android Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

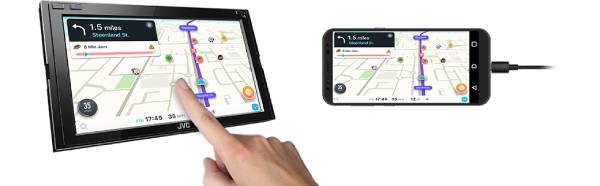

Mirroring for iPhone and Android Phones –
Connect via USB
By installing the “Mirroring for JVC” app, your iPhone or Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
Highlights

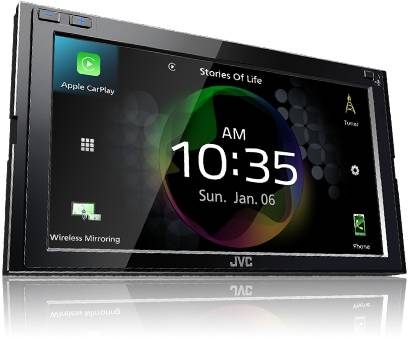

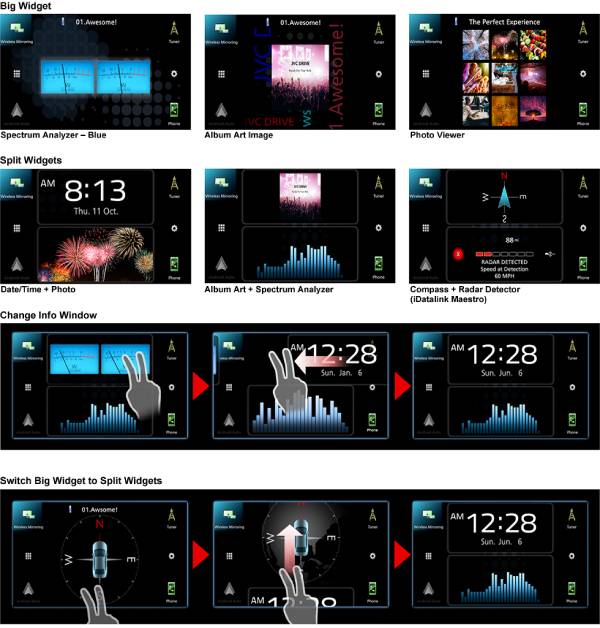

Dynamic GUI
Various information including time, photos, album art images, or iDatalink Maestro and more, can be displayed on the home screen in a big, easy-to-view way. Swiping the monitor with two fingers lets you split the screen or change the information window.

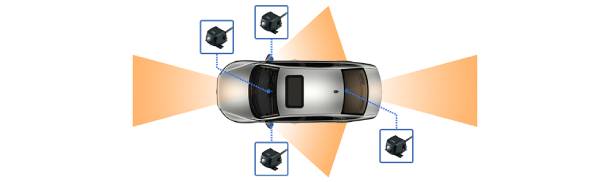

4-Camera Input
Enable users to add a reverse (rear facing) camera, front camera and an additional 2 blindspot cameras, further enhancing driver safety and convenience.

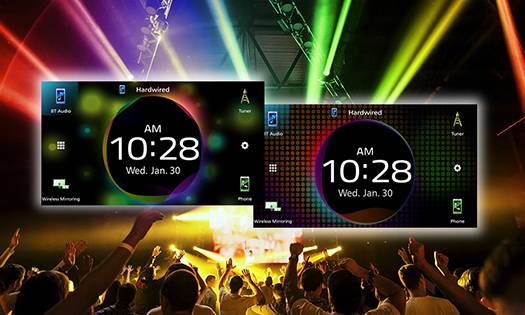

Live Wallpaper
Synchronize background visual and color with music.
Clear Resistive Touch Panel Display
The clear resistive touch panel with high transparency and high luminance provides bright images with vivid colors.
SOUND OPTIMIZATION
From advanced technologies that enable playback of premium High-Resolution Audio sources, to the vast array of sound adjustment functions to fine-tune and customize the acoustics exactly the way you want — count on JVC to deliver the music to your ears.
High-Resolution Audio Playback
You can enjoy playback of 96kHz/24bit audio which contains about 3 times the musical information of music CDs (44.1kHz/16bit), or even 192kHz/24bit High-Resolution Audio files with their approx. 6.5 times data volume. With high sound quality approaching the original master recording itself, you will experience the presence and ambience of a tune the way CD simply cannot.

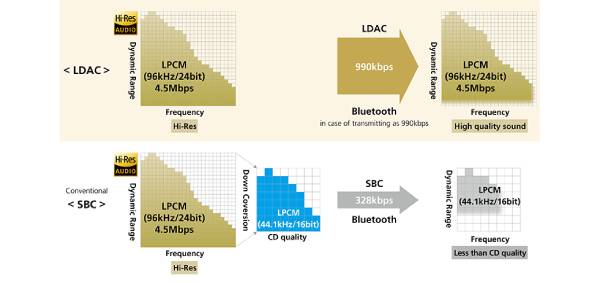

High-Quality Bluetooth® Streaming with LDAC™
LDAC™ sends approximately three times more data (at the maximum 990 kbps transfer rate) than conventional Bluetooth® audio for superior wireless listening. Unlike other Bluetooth compatible coding technologies such as SBC, it operates without any down-conversion of the Hi-Res Audio content *1, and allows approximately three times more data *2 than those other technologies to be transmitted over a Bluetooth wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.

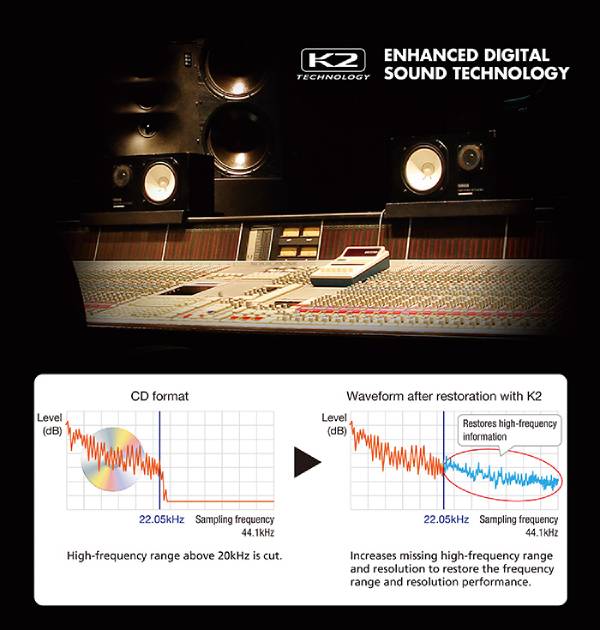

K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting

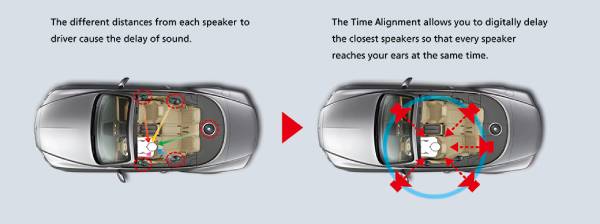

Time Alignment
By selecting the speaker type and the distance to the centre of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Sound Response
Cancels time distortion to create clearer sound during the playback of compressed audio files.
Space Enhancement
Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the receiver automatically adjusts the sound effectively.

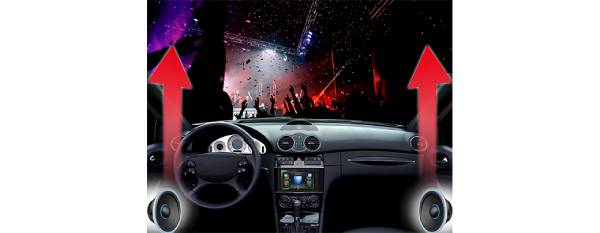

Sound Lift
Virtually manipulate the height of the speakers by adjusting the sound frequencies.

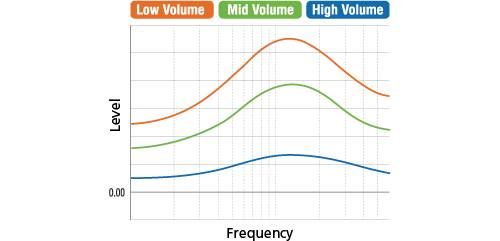

Volume Link EQ
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Bluetooth® Wireless Technology
2 Phones Full-Time Connection
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.
iPhone®/Android™ Bluetooth Automatic Pairing
Just connect your iPhone or Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.
Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.6 Wideband Speech
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Bluetooth AVRCP1.6 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
JVC Streaming DJ
Connect up to 5 Bluetooth devices simultaneously, so you and your friends can take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.
Internet Radio/Digital Radio
SiriusXM Ready
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
General

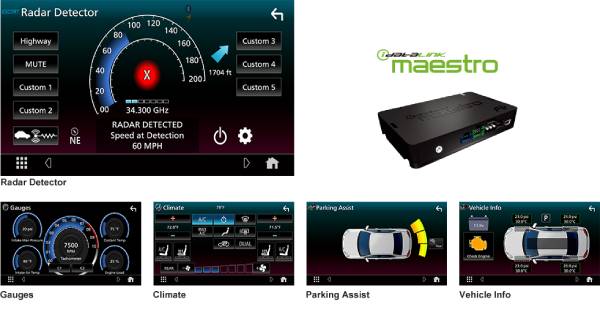

iDatalink Maestro – Advanced Vehicle Integration
iDatalink Maestro RR (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles.

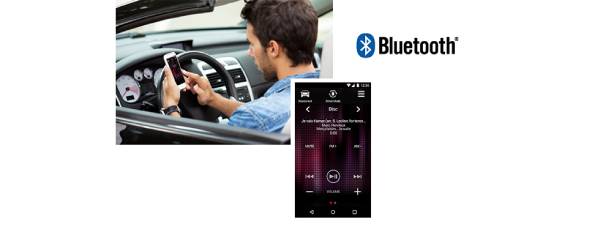

Remote Control App
Control the music directly from the smartphone using simple finger gestures with "JVC Remote S" app* now available for both iOS and Android.
Dual USB with High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A. Two USB ports are available.
5.0V High-Voltage 3 Pre-Outs
Equipped with three RCA terminals for pre-outs with 5.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

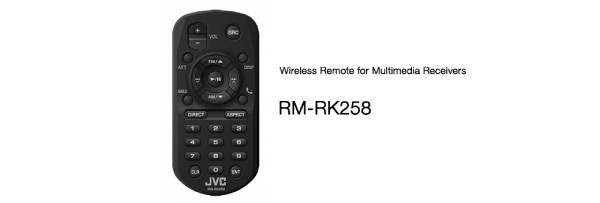

Remote Control (Optional)
Remote control (RM-RK258) is optionally available.
MONITOR | |
---|---|
Monitor Touch Control | Yes |
Media Playback | |
WAV Compatible with Tag | USB |
WMA Compatible with Tag | USB |
MP3 Compatible with Tag | USB |
MONITOR | |
Live Wallpaper | Yes |
Wallpaper Capture | Yes |
Multilingual Display | Yes[4] |
Dimmer | Yes |
Key Illumination Color | Blue |
Screen Size | 6.8"W VGA Screen |
Touch Panel | Clear Resistive |
Customizable GUI | Yes |
Bluetooth Control | |
Built-in Bluetooth[1] | Yes (Version 5.0, Wired-Mic included) |
Media Playback | |
BMP File Playback | USB |
PNG File Playback | USB |
JPEG File Playback | USB |
AVI/MKV Compatible | USB |
MPEG 4 Compatible | USB |
MPEG 1/2 Compatible | USB |
WMV Compatible | USB |
H.264 Compatible | USB |
FLAC Compatible with Tag | USB( Up to192kHz/24bit ) |
AAC Compatible with Tag | USB |
Android Control | |
iHeartRadio Control | Yes (Android Auto / Mirroring) |
Pandora Control | Yes (Android Auto / Mirroring) |
Android Music Playback | Yes (via Bluetooth(R)) |
Mirroring for Android | Yes (via Wi-Fi or USB*) *via USB : Need mirroring App |
Android Auto[2] | Yes (via Wi-Fi or USB) |
Wi-Fi Control | |
Built-in Wi-Fi | Yes |
Bluetooth Control | |
Auto Pairing for iPhone/Android | Yes |
Alphabetical Search for Phone Book | Yes |
Phone Book Access Profile (PBAP) | Yes |
Voice Dialing (voice recognition compatible mobile phone required) | Yes |
5 BT-Audio Connection | Yes |
Supported Audio Formats | AAC / SBC |
Audio Streaming & Control (A2DP, AVRCP) | Yes |
Hands Free Call | Yes (HFP1.7 Wideband Speech) |
2 Phones Full-Time Connection | Yes |
Radio Tuner | |
Radio Broadcast Data System (RBDS) | Yes |
SiriusXM Ready | Yes |
USB | |
Drive Change Mode for Mass Storage Class (selectable from internal/external memory) | Yes |
USB Power Supply | Yes (1.5A High Current Charging) |
Position | Rear |
USB Port | x 2 (High Speed) |
iPod/iPhone Control | |
Spotify Control | Yes (CarPlay / Mirroring) |
iHeartRadio Control | Yes (CarPlay / Mirroring) |
Pandora Control | Yes (CarPlay / Mirroring) |
iPod/iPhone Music Playback | Yes (via USB or Bluetooth(R)) |
Mirroring for iPhone | Yes (via USB) *Need mirroring App |
CarPlay[3] | Yes (via Wi-Fi or USB) |
Android Control | |
Spotify Control | Yes (Android Auto / Mirroring) |
Radio Tuner | |
Automatic Presetting (Strong Station Sequential Memory) | Yes |
Preset Stations | 20(FM:15ch, AM:5ch) |
Connectivity | |
Space Enhancement | Yes |
K2 Technology | Yes |
3-Way X'over | Yes |
High-Resolution Audio | Yes |
High-Pass Filter/Low-Pass Filter | Yes/Yes |
Bass Boost | Yes |
Preset EQ | Yes (8Preset + 4user) |
EQ | Yes (13-Band Graphic EQ) |
Full Bandwidth Power (Front & Rear) | 22W x 4 (Full Bandwidth Power, at less than 1% THD) |
Maximum Power Output (Front & Rear) | 50Wx4 |
Radio Tuner | |
AM - Frequency Range | 530-1,700kHz |
FM - Frequency Range | 87.9 - 107.9MHz |
General | |
Dimensions (W x H x D) - Installation Size | 7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm) |
Face Type -Steering Remote Control Ready | Yes |
Face Type - Wireless Remote Control | Ready (RM-RK258 required) |
Face Type - Viewing Angle Adjustment | Yes (0 - 20 degree, default : 0 degree) 4 steps |
Back Up Memory | Yes |
Remote Control Application | Yes |
iDatalink Maestro Ready | Yes |
Inputs and Outputs | |
Subwoofer Output with Level/Frequency Control | Yes |
Pre-output Level/Impedance | 5.0V / 10k ohms |
Line Output Terminals | 3 Pairs (Front + Rear + Subwoofer) |
3rd Camera Input | Yes |
Front view camera Input | Yes |
Rear view camera Input | Yes |
Video Out | RCA |
AV Input | mini jack (AV-IN or CAM4 switchable) |
Connectivity | |
Sound Response | Yes |
Sound Lift | Yes |
Volume Link EQ | Yes |
Time Alignment | Yes |
Dual-Zone Function | Yes |
General | |
Dimensions (W x H x D) - Unit weight in individual package | 2.5kg |
Dimensions (W x H x D) - Weight | 3.75 lbs. (1.7kg) |
