- 255 Segment 1.5 Line Text Display
- Amazon Alexa Ready
- Spotify Ready
- Bluetooth Direct Access Button
- Variable Color Illumination
- Conformal Coating
- 3 Preouts 4.0V
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.
Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

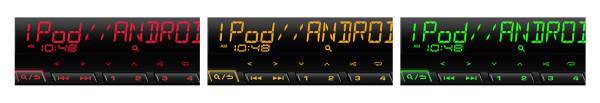

Match Your Mood with Variable Color Illumination
Bright variable color LED's can be adjusted to match any color dash lighting.
Short Chassis Design
With audio receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
Spanish and French Text Display
On-screen display menu now available in Spanish and French.

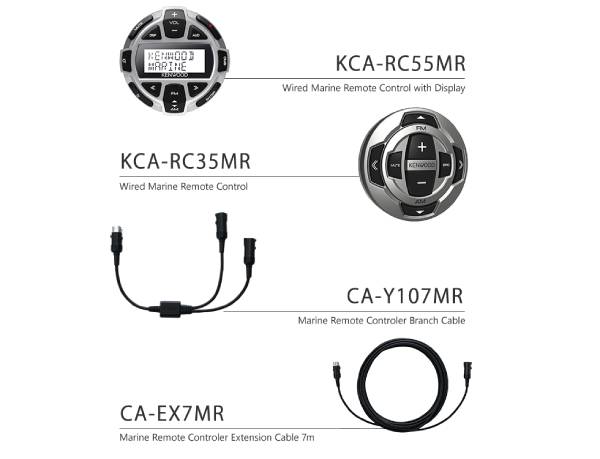

Wired Remote Control (Optional)
Remote control and extensional remote cable are optionally available.
| USB I/F | |
|---|---|
| Frequency Response | 20Hz to 20kHz(±1dB) |
| Maximum Supply current | DC5V(DC logo) 1.5A |
| File System | FAT12 / 16 / 32 |
| AM | |
| Speaker Impedance(Ω) | 4 to 8Ω |
| USB I/F | |
| USB | USB 1.1 / 2.0 High Speed |
| AM | |
| Preout Level(mV)/Load-Unbalanced | 4000mV/10kΩ |
| Preout Impedance(Ω) | ≦600Ω |
| Frequency Range(Frequency step) | 530kHz to 1700kHz(10kHz) |
| Usable SensitivityS/N:20dB | 29dBμ (28.2μ) |
| FM | |
| Stereo Separation | 40dB(1kHz) |
| S/N | 64.0dB(MONO) |
| Frequency Response (±3.0dB) | 30Hz to 15kHz |
| Quieting SensitivityDIN S/N 46dB | 17.2dBf(2.0μV/75Ω） |
| Usable SensitivityS/N30dB | 8.2dBf(0.71μV/75Ω） |
| Frequency Range(Frequency step) | 87.9MHz to 107.9MHz(200kHz) |
| TONE | |
| Band11 | 6.3kHz ±9dB |
| Band10 | 4kHz ±9dB |
| Band9 | 2.5kHz ±9dB |
| Band8 | 1.6kHz ±9dB |
| Band7 | 1kHz ±9dB |
| Band6 | 630Hz ±9dB |
| Band5 | 400Hz ±9dB |
| Band4 | 250Hz ±9dB |
| Band3 | 160Hz ±9dB |
| Band2 | 100Hz ±9dB |
| Band1 | 62.5Hz ±9dB |
| AMP | |
| Full Bandwidth Power (at less than 1%THD) | 22Wx4 |
| Maximum Power | 50Wx4 |
| Input | |
| Input Impedance | 30kΩ |
| Input Maximum Voltage | 1000mV |
| AUX | |
| Frequency Response | 20Hz to 20kHz ±3dB |
| USB I/F | |
| FLAC Decode | FLAC file (Up to 96kHz/24bit) |
| WAV Decode | Linear-PCM |
| AAC Decode | AAC-LC ".aac", ".m4a" files |
| WMA Decode | Compliant with Windows Media Audio |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| Channel Separation | 92dB |
| Dynamic Range | 93dB |
| S/N Ratio (dB) | 98dB(1kHz) |
| GENE | |
| Net Weight (Trim plate and Mounting sleeve: Included) | 0.7(kg) 1.5(lbs) |
| Installation Size (W)(H)(D) | 182(mm) 7-3/16(in)53(mm) 2-1/16(in)100(mm) 3-15/16(in) |
| Operating voltage | 12V DC car battery |
| Bluetooth | |
| Profile | AVRCP 1.6.1 (Audio/Video Remote Control Profile) |
| Profile | A2DP(Advanced Audio Distribution Profile) |
| Profile | PBAP(Phonebook Access Profile) |
| Profile | SPP(Serial Port Profile) |
| Profile | HFP 1.7.1 (Hands Free Profile) |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Frequency Range | 2.402 to 2.480GHz |
| Version | Bluetooth 4.2 |
| TONE | |
| Band13 | 16kHz ±9dB |
| Band12 | 10kHz ±9dB |
