Kicker 10 Inch CompQ Series Subwoofer with Dual 2 Ohm Voice Coils - 42CWQ102
42CWQ102
Literature

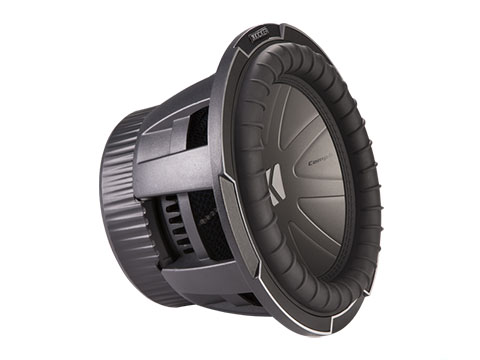

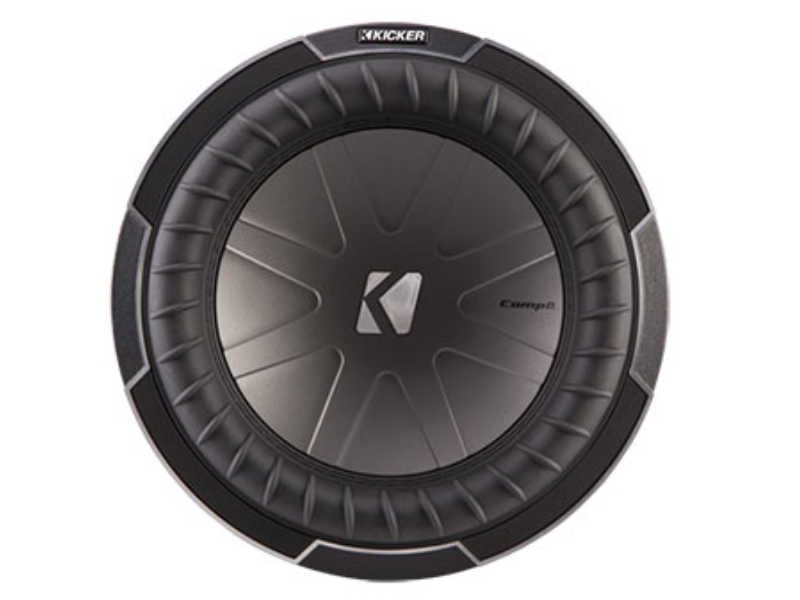

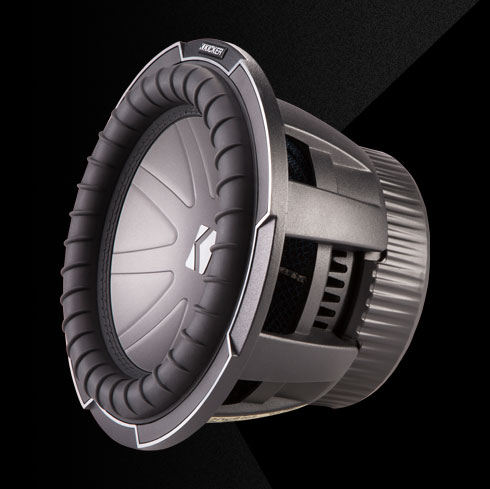

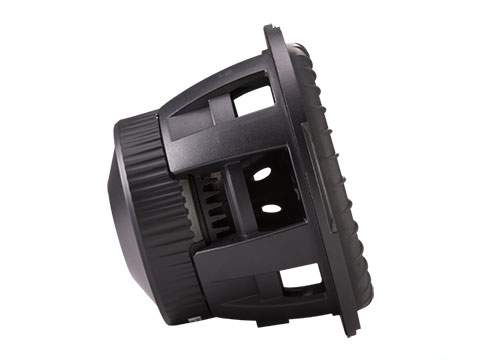

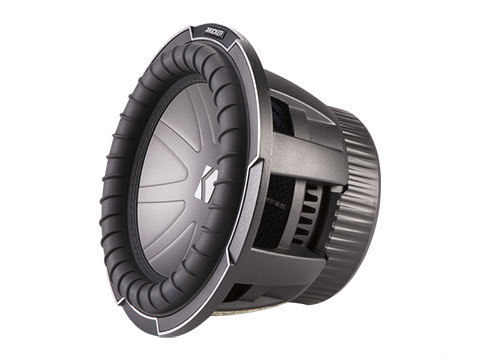

The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.
The 10" CompQ 2 Ohm
The CompQ 10” Subwoofer is a perfect selection for strong, tight bass that deliver unparalleled accuracy, with extremely musical bass.An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion.The CompQ 10-Inch Subwoofer works best with a sealed or ported enclosure with 700 watts of recommended power. See below for more details.
| Specifications | |
|---|---|
| Thiele/Small Parameters | 42CWQ102 T/S Parameters |
| Product Dimension Sheet | 42CWQ10 Dimensions |
| Rated Impedance [Ω] | 2 |
| Sensitivity [1W, 1m] | 85.7 |
| Frequency Response [Hz | 24 – 100 |
| Recommended Amplifier Power (watts RMS) | 700 |
| Outer Frame Dimension [in, cm] | 10-11/16, 27.2 |
| Mounting Depth [in, cm] | 6-3/8, 16.2 |
| Mounting Cutout [in, cm] | 9-3/16, 23.4 |
| Minimum Sealed Volume ft3 (L) | .66 (18.7) |
| Maximum Sealed Volume ft3 (L) | 1.25 (35.4) |
| Box Volume [ft³, L] | .66 (18.7) |
| Panel A [in, cm] | 12x12, 30.5x30.5 |
| Panel B [in, cm] | 12x10.5, 30.5x26.7 |
| Panel C [in, cm] | 10.5x10.5, 26.7x26.7 |
| Box Volume, ft³ (L) + port displacement | 1.25, 35.4 |
| Port Opening Size, in x in (cm x cm) | 2.5x11.25, 6.4x29 |
| Port Length, in (cm) | 19.75, 50 |
| Box Volume, ft³ (L) | 2.25, 63.7 |
| Port Opening, in x in (cm x cm) | 3x11.25, 7.6x29 |
| Port Length, in (cm) | 18, 46 |
| Warranty | When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. |
