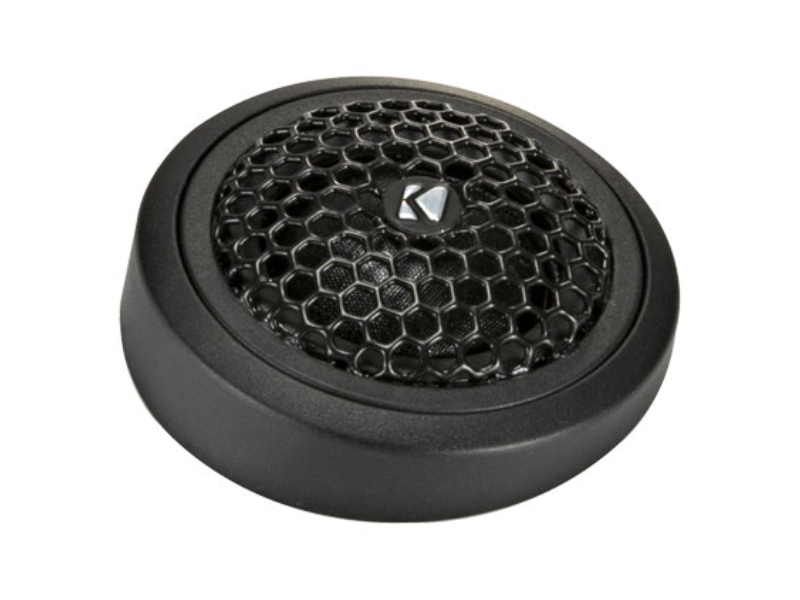

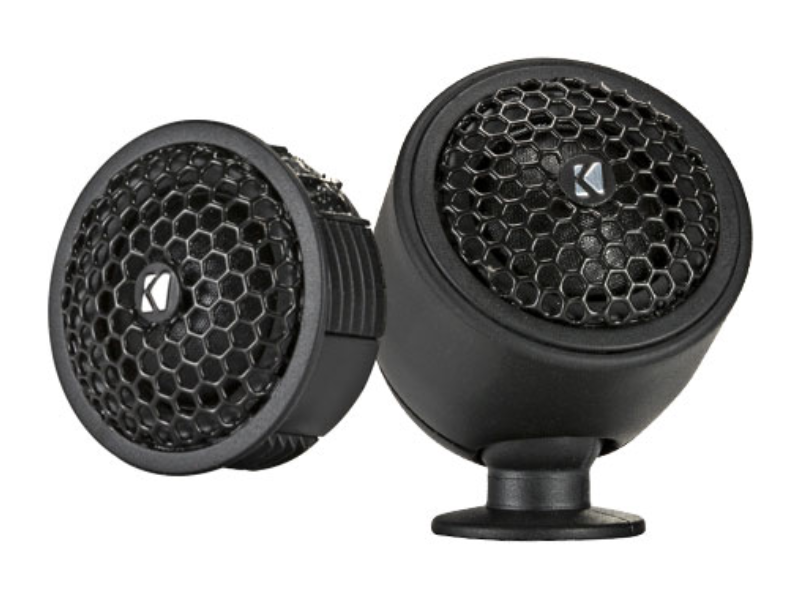

KICKER’s® elite KS tweeter upgrade has extended frequency range and high power handling, making it an excellent addition when you crave more volume and realism.
RE-DEFINE REALITY

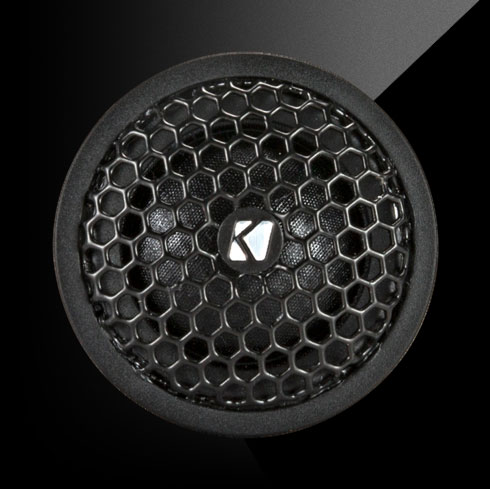

- Silk-dome tweeters for a smooth, natural sound
- Four tweeter mounting options (hardware included)
- Extended frequency response for ultimate listening
- Lightweight neodymium magnets provide efficient highs

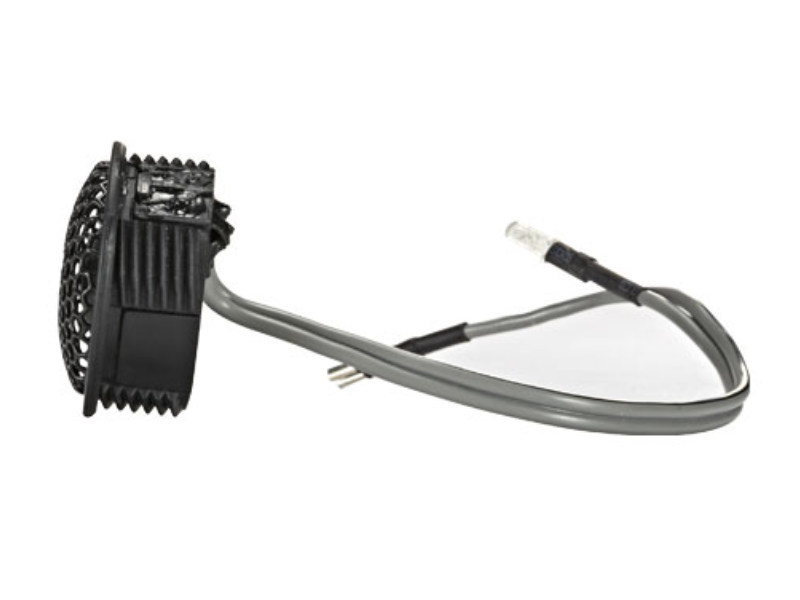

- In-line 12dB crossover included
- Poly-switch protection
- Grilles included

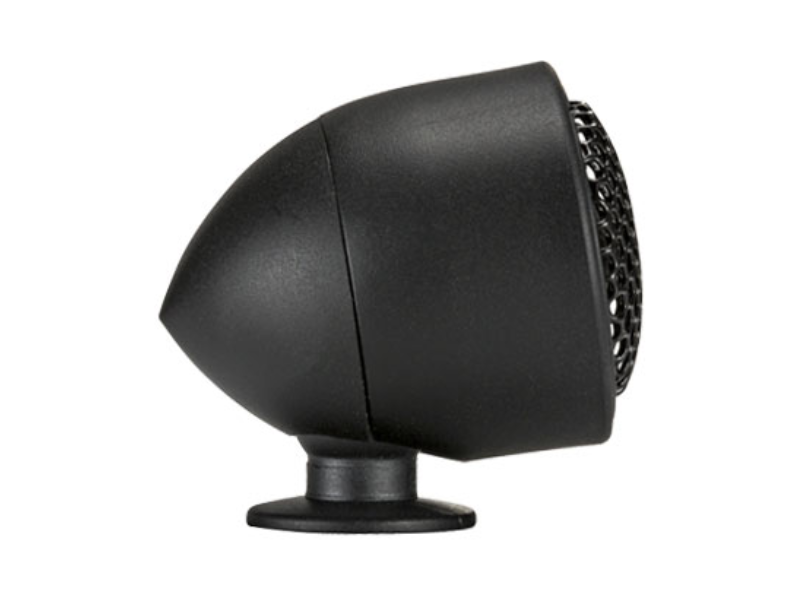

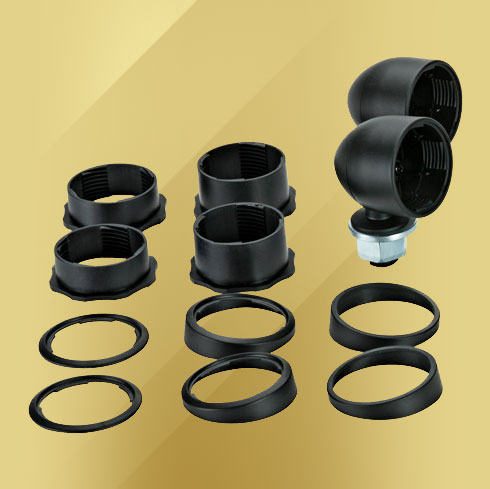

Mounting Options
When it comes to mounting your tweeters, the KS Series ¾" Tweeter gives you plenty to choose from!
| Specifications | |
|---|---|
| Tweeter [in,mm] | ¾, 20 |
| Tweeter Dome Material | Silk |
| Rated Impedance [Ω] | 4 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 195 |
| Recommended Amplifier Power (watts RMS) | 10-65 |
| Sensitivity [1W, 1m] | 92 |
| Frequency Response [Hz] | 4500-21k |
| Flush Mount Tweeter Depth [in, mm] | 9⁄16 , 14 |
| Flush Mount Tweeter Hole Diameter [in, mm] | 1-9⁄16 , 40 |
| High Pass [dB], at Frequency [Hz] | 12, 4500 |
| Warranty | When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. |
