- Peak Power 320W

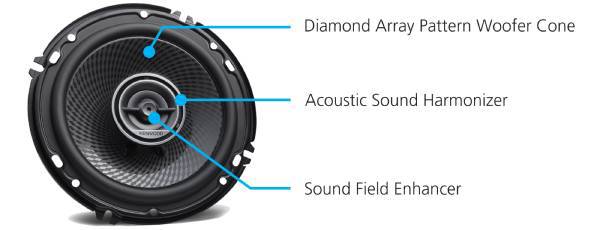

- Diamond Array Pattern Woofer Cone
- Acoustic Sound Harmonizer
- Sound Field Enhancer

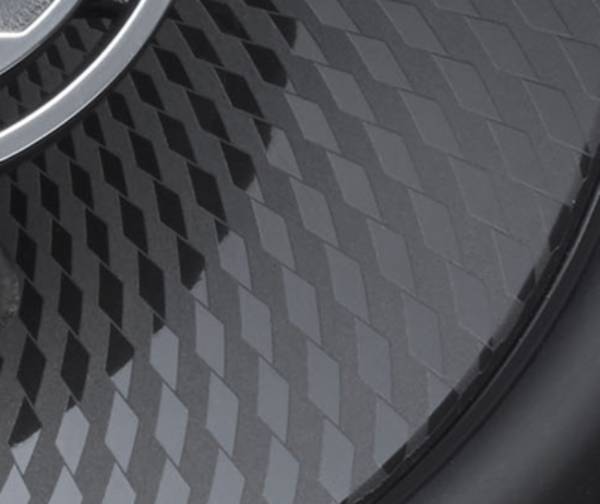

Diamond Array Pattern Woofer Cone
This technology enhances sound and reduces distortion.

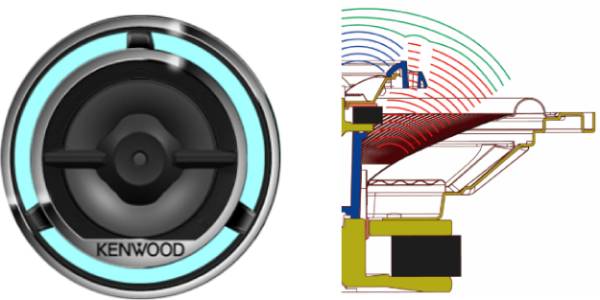

Sound Field Enhancer
This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
Acoustic Sound Harmonizer
Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

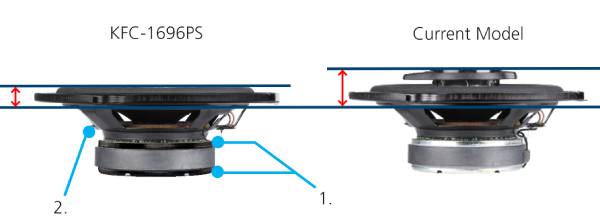

Factory Location Fit
The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
1. Black Painted Yoke and Plate
By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

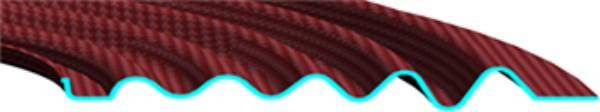

2. New Woofer Damper Shape
Stress leveling points increase durability and provide a smoother sound response.

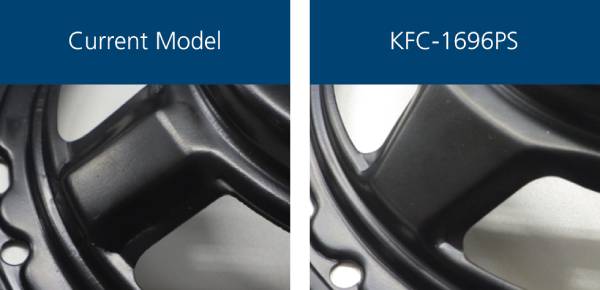

New Frame Design
Enlarged open area provides more bass and cleaner sound.
| Dimension | |
|---|---|
| Mounting Depth | 48 mm 1-7/8 in. |
| Cutout Diameter | 123.6 mm 4-7/8 in. |
| Top Height | 9 mm 3/8 in. |
| Height (w/o_Gr) | 157.7 mm 6-3/16 in. |
| Height (w_Gr) | 170 mm 6-11/16 in. |
| Width (w/o_Gr) | 157.7 mm 6-3/16 in. |
| Width (w_Gr) | 170 mm 6-11/16 in. |
| Tweeter | |
| Magnet | Neodynium |
| Size | 30mm 1-3/16 inch |
| Diaphragm / Color | Balanced Dome Matte Black |
| Woofer | |
| Magnet | Ferrite φ85xt12 |
| Basket | Steel |
| Surround | Rubber |
| Size | 160mm 6-1/2 inch |
| Diaphragm / Color | PP Cone Black |
| ELECTRICAL | |
| Frequency Response(Hz) CTA standards | 75-24000Hz |
| Sensitivity (dB at 1m) CTA standards | 88dB |
| RMS Input Power（W) CTA standards | 100W |
| Peak Input Power(W) | 320W |
| Impedance(Ω） | 4Ω |
| Weight | |
| with Grille (pc.) | 823g 1.8 lb |
| without Grille (pc.) | 748 g 1.6 lb |
| Weight of Woofer Magnet | 270 g 9.5 oz |
| Net Weight | 1.60 ㎏ 3.6 lb |
| Accessory | |
| Tapping Screw | φ4x25*8pcs |
| Speed Nut | 8pcs |
| Speaker Cord | 0.5m*2 |
| Adhesive Tape | 1set |
| Grille Assy | 2pcs |
