Audison 4 ohm 300 W Peak Power Subwoofer - APBMWS84.2
APBMWS84.2
Literature
The 200 mm (8 in.) APBMW S subwoofers allow a direct replacement of the OEM speakers underneath the front seats, making the most of the factory acoustic load and generating deep and crisp low frequencies. The Neodymium magnet allows for greater power and control than ferrite while maintaining the depth of installation unaltered.
Features
- Developed with electroacoustic parameters customized for BMW-Mini to increase listening engagement, through powerful and crisp low frequencies, exploiting the acoustic load provided by the factory box.

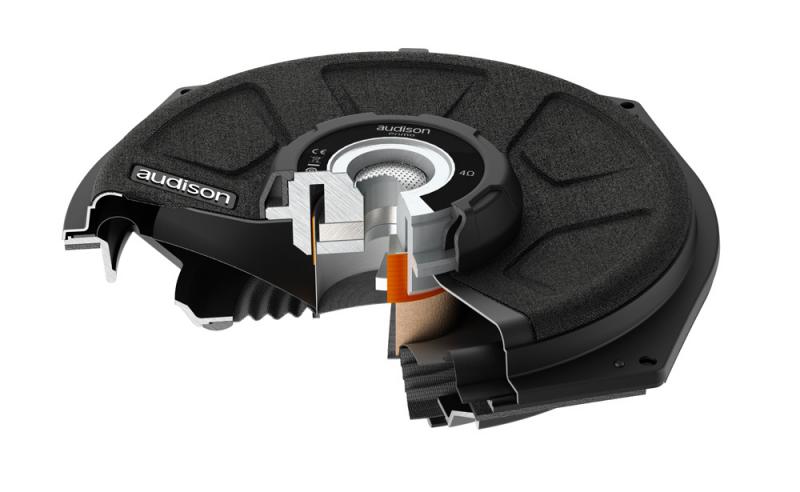

- Neodymium Magnetic group with an inverted acoustic structure featuring an internal cone, to maximize performance while minimizing bulk and weight.
- 38 mm voice coil wound on aluminum support for considerable power dissipation and stability even during high excursions.
- Two 5 mm gaskets were provided for OEM placements.
- 2-ohm configuration for maximum output in combination with AP 8.9 bit in active multi-amplification.
| TECHNICAL SPECS | |
|---|---|
| Size | 200 mm |
| Power Handling - Peak | 300 W |
| Power Handling - Continuous | 150 W |
| Impedance | 4 Ohm |
| Frequency Response | 40-500 Hz |
| Magnet Material | NEODYMIUM |
| Voice Coil Ø | 50 mm |
| Voice Coil Material | COPPER |
| Woofer Qes | 0.96 |
| Cone Material | PRESSED PAPER CONE |
| Chassis Material | PLASTIC |
| Surround Material | RUBBER |
| Xmax | 7 mm |
| Xmech | 10 mm |
| ELECTRIC-ACOUSTIC SPECS | |
| D | 159 mm |
| Driver Displacement Volume | 1.2 |
| Re | 3.8 Ohm |
| Fs | 40 Hz |
| Vas | 21 l |
| Mms | 43 g |
| Cms | 0.41 mm/N |
| BL | 6.3 T•m |
| Qms | 2 |
| Qts | 0.65 |
| Diaphragm Area | 198.6 cm2 |
| Le Standard | 0.5 mH |
| Reference Efficiency | 0.13 |
| Spl | 88 dB |
| General | |
| Weight | 1.21 kg |
| Dimensions | |
| Dimension A | 217 mm |
| Dimension B | 239 mm |
| Dimension C | 191 mm |
| Dimension D | 55.2 mm |
| Dimension E | 32 mm |
| Dimension F | 229 |
| Dimension G | 5 mm |
