12" Kicker CompQ Series Dual 2-Ohm Subwoofer - 51CWQ122
51CWQ122
Literature
The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.
The 12" CompQ 2-Ohm
The CompQ 12-Inch Subwoofer is the best sound quality round driver we’ve ever made, with nearly identical construction and performance as our L7 square subs.

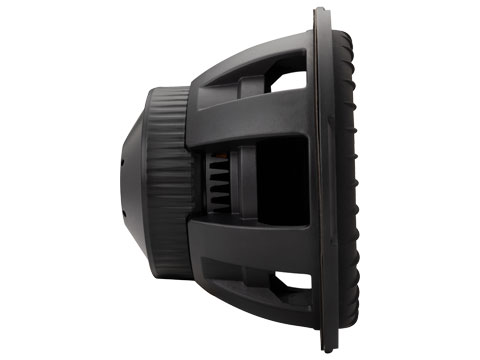

A cast aluminum frame provides an extremely stable, vibration-free base, so every note gets from the cone to your ears as pure as the day it was recorded.
The CompQ 12-Inch Subwoofer works best with a sealed or ported enclosure with 1000 watts of recommended power. See below for more details.
| Specifications | |
|---|---|
| Woofer (in, mm) | 12, 30 |
| Impedance (Ohms) | 2 DVC |
| Recommended Amp Power (watts RMS) | 500-1000 |
| Frequency Response (Hz) | 20-100 |
| Sensitivity (1W, 1m) | 85.4 |
| Xmax (mm) | 23 |
| Mounting Depth (in, mm) | 7-1/8, 18.1 |
| Mounting Diameter (in, mm) | 11-1/16, 28.1 |
| Sealed Enclosure Volume Min (cu. ft., L) | 0.88, 24.9 |
| Box Volume [ft³, L] | 0.88, 24.9 |
| Panel A [in, cm] | 13.5x13.5, 34.3x34.3 |
| Panel B [in, cm] | 13.5x10.5, 34.3x26.7 |
| Panel C [in, cm] | 12x10.5, 30.5x26.7 |
| Sealed Enclosure Volume Max (cu. ft., L) | 2.0, 56.6 |
| Vented Enclosure Volume Min (cu. ft., L) | 1.75, 49.6 |
| Vented Enclosure Volume Max (cu. ft., L) | 3.25, 92 |
