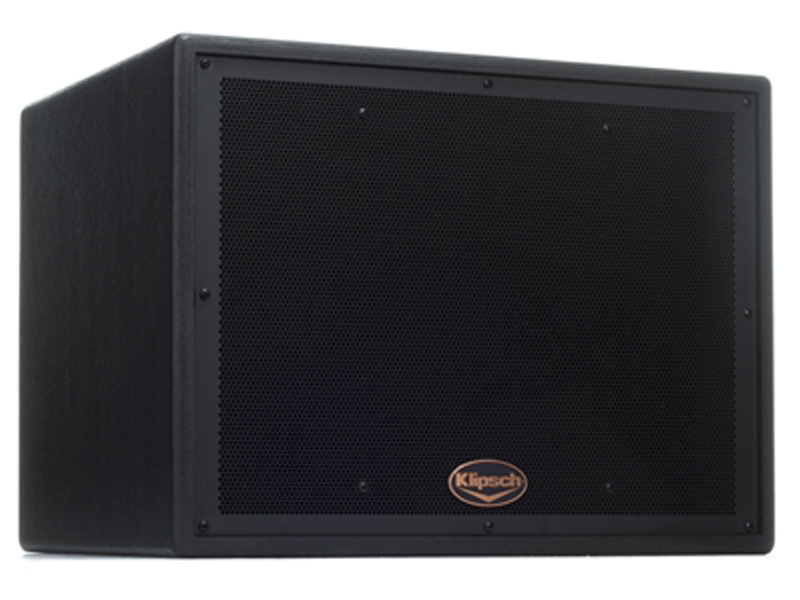

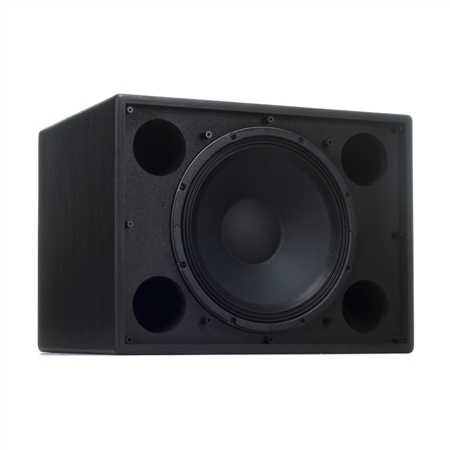

Designed for high output, long-term reliability, the Klipsch KI-115-SMA-II low frequency enclosure utilizes a single K-48-ST cast frame 15” woofer. This 104-ounce magnet, 3” voice coil powerhouse delivers high sensitivity with superior power handling. Klipsch’s specially designed speaker motor assembly ensures that high transient cone excursions won’t damage the voice coil former under extreme output applications.
Perfect for music reinforcement and reproduction, the KI-115 finds ready application in clubs, theaters, auditoriums, churches and performance environments. The rugged, tuned port, 3/4” furniture grade plywood enclosure utilizes CNC fabrication techniques for uniform tolerances, contributing to advanced reliability and ruggedness. Dado “locktab” and rabbet joint construction contribute to freedom from resonance and cabinet-induced coloration.

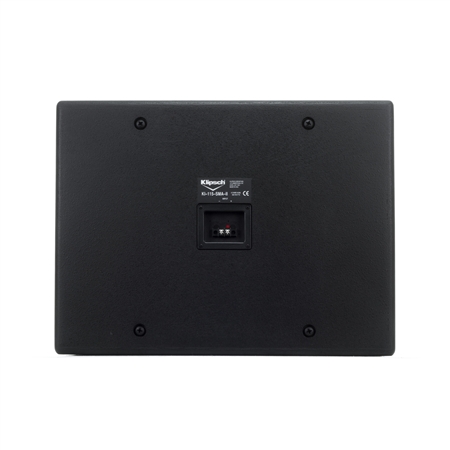

The KI-115-SMA-II utilizes four 3/8"-16 suspension points, located on the rear of the enclosure, to support suspended applications in a "face-down" orientation.
Specification | |
---|---|
FREQUENCY RESPONSE: | 49Hz-200Hz +/- 3dB -10dB 35Hz |
SENSITIVITY: | 101dB |
POWER HANDLING: | 400 watts (44.7V) (1600 watts peak) |
CALCULATED MAX CONTINUOUS OUTPUT: | 124dB (130dB peak) |
NOMINAL IMPEDANCE: | 8 ohms, minimum 3.5 ohms @3 9Hz |
COMPONENTS: | One K-48-ST 15" woofer |
ENCLOSURE MATERIAL: | 3/4" 7-ply birch plywood |
INPUT CONNECTIONS: | Two point barrier strip |
HEIGHT: | 18.5" (46.99cm) |
WIDTH: | 24.6" (62.48cm) |
DEPTH: | 19.2" (48.77cm) |
WEIGHT: | 62 lbs. (28.18kg) |
MOUNTING OPTIONS: | Four 3/8"-16 flypoints on back panel |
FINISHES: | Black, White and Raw |
