Klipsch 8" Compact Commercial Monitor 65 or 45 degree angle KI172BSMAII KI172BII

$1,09900 / Each
Save $25000
Or
as low as
$183.17
Per month over
6 months.


In-store

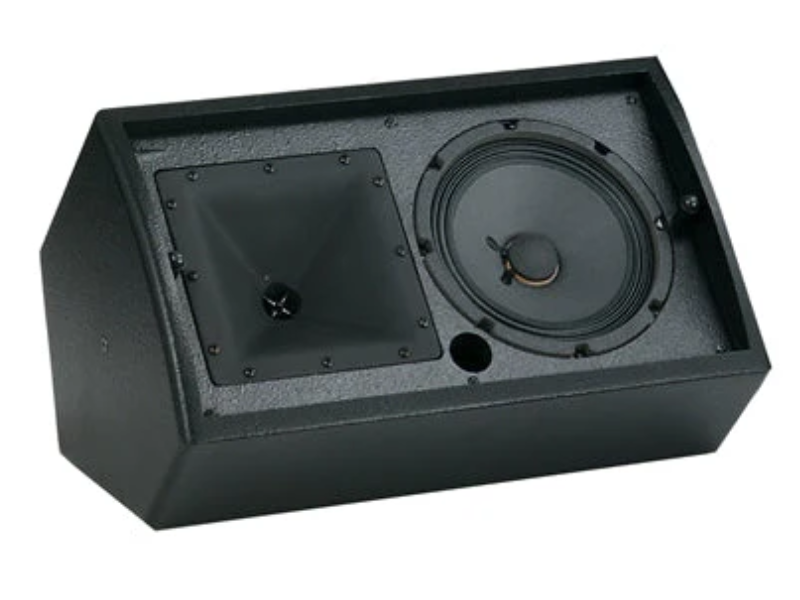

The KI-172-SMA-II is a compact, two-way, high performance loudspeaker with sides slanted at 65° and 45°. Designed to be installed where placement at an angle is required and space is limited, the KI-172-SMA-II is perfect for wall, ceiling or under-balcony mounting in theaters, churches, schools and clubs, or for slanted floor or shelf monitor use near altars and podiums, or in board and meeting rooms.

The 3/4” MDF enclosure uses dado “lock-joint” and rabbet construction on CNC-fabricated panels to ensure resonance-free response and long-term reliability. The internal high-current passive crossover features the proprietary high-power thermal overload KLIP- circuit, which limits potential damage to the high-frequency driver. Mounting capabilities include top and bottom attachments for the optional SB-102 "U"-shaped bracket.



Specification
FREQUENCY RESPONSE: 74Hz-17kHz +/- 3dB -10dB @ 48Hz
SENSITIVITY: 95dB
POWER HANDLING: 200 watts (31V) (800 watts peak)
CALCULATED MAX CONTINUOUS OUTPUT: 115dB (121dB peak)
NOMINAL IMPEDANCE: 8 ohms, minimum 4.7 ohms @184Hz
COMPONENTS: One K-81-ST 8" woofer One K-103-TI-KP-1" titanium compression driver on a K-802-M horn
CROSSOVER FREQUENCY: 2kHz
ENCLOSURE MATERIAL:3/4" MDF
INPUT CONNECTIONS: Two point barrier strip
COVERAGE:Horizontal 90° +/-30 2.5kHz-20kHz Vertical 90° +/-20 2.1kHz-20kHz
DIRECTIVITY INDEX (DI):8dB+/-3dB 1kHz-20kHz
DIRECTIVITY FACTOR (Q): 6.3
HEIGHT: 11.4" (28.96 cm)
WIDTH: 18.9" (48.00cm)
DEPTH: 10.6" (26.92cm)
WEIGHT: 27 lbs. (12.24kg)
MOUNTING OPTIONS: 4 - 1/4" -20 screw pattern for Mounting Bracket 2 - 1/4"-20 screw pattern for SB-102 Bracket
FINISHES: Black, White and Raw
ACCESSORIES: SB-102 Mounting Bracket
OVERLOAD PROTECTION: KLIP Overload Protection Circuit-HF
