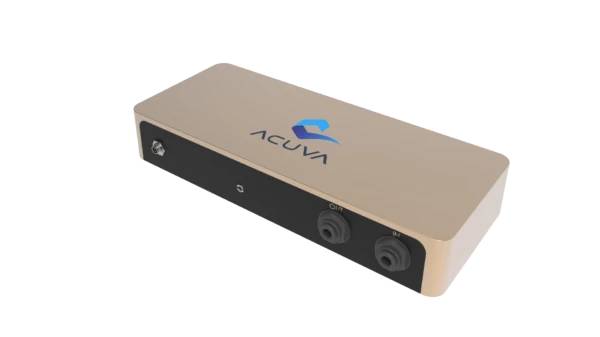

Acuva ArrowMAX 2.0 UV-LED Water Purifier - 600-1464-66
600-1464-66
Our most popular water purifier the ArrowMAX 2.0, eliminates up to 99.9999% of bacteria and viruses offering safe drinking water straight out of your tap. Included with an Advanced Pre-filter, the unit will also remove lead, heavy metals, chlorine, mercury, carcinogens, and other contaminants, as well as turbidity, unpleasant odors and tastes.
The ArrowMAX 2.0 is the perfect choice for homes, boats or RVs. Never worry about the quality of your water source ever again.
Advanced pre-filter included with the unit
The Advanced Pre-filter comes included with the ArrowMAX 2.0 and lasts up to 4000 gallons which should last 6 to 12 months based on regular usage. The Advanced Pre-filter will remove lead, heavy metals, chlorine, mercury, carcinogens, and other contaminants, as well as turbidity, unpleasant odors and tastes before the water is treated by the ArrowMAX 2.0 UV unit. The Advanced Pre-filter comes standard with this unit. Please see the comparison chart for the list contaminants that are removed.
With or without a Smart Faucet
The Acuva Smart Faucet with Indicator LED Ring in Brush Nickel
When the Smart Faucet is turned on and blue light illuminated, the Acuva system becomes active. When the blue light is on you can be assured that the system is working effectively to provide you with safe clean drinking water. The Smart Faucet also has a self-cleaning feature that activates every 12 hours. A UV burst ensures all water within the UV-LED purifier is sanitized. Additionally, the UV-LEDs stay on for an additional 5 seconds after activation to ensure any water partially traveling through the unit is free from any microbial contaminants that could cause harm.
- Point-of-Use system for homes, RVs and campervans
- Provides flow rate of 2 liters per minute (0.52 gallons)
- Can dispense 120,000 liters of water in its lifetime. Expected life is 7+ years
- Acuva Smart Faucet (optional) glows blue when the unit is activated
- High-quality compact polymer body casing
- Chemical-free, mercury-free
- 1 year warranty
- NSF/ANSI 55 Class ‘B’ and NSF/ANSI 372 certified by IAPMO R&T
What's in the Box
| Technical Specifications | |
|---|---|
| WEIGHT | 3.0 kg (6.61 lb) |
| WIDTH | 250 mm (9 7/8") |
| LENGTH | 105 mm (4 1/8") |
| HEIGHT | 47.5 mm (1 7/8") |
| MAXIMUM WATER TEMPERATURE | 40°C (105°F) |
| MINIMUM WATER TEMPERATURE | 4°C (39°F) |
| MAXIMUM AMBIENT RELATIVE HUMIDITY | 70% |
| POWER SOURCE | 120-240 V AC, 12V-DC |
| POWER CONSUMPTION (ACTIVE) | Approx. 9.0W |
| POWER CONSUMPTION (STANDBY) | Approx. 0.1W |
| FLOW RATE | 2 liters per minute (0.52 gallons) |
| EST. FILL TIME FOR 1 CUP OF WATER | 10 seconds |
| CAPACITY | 120,000 liters of water dispensed in its lifetime |
| MAXIMUM WORKING PRESSURE | 100 PSI |
| MINIMUM WORKING PRESSURE | 12 PSI |
| CERTIFICATION | NSF/ANSI-55 Class “B” and NSF/ANSI 372 |
| UV DOSE DELIVERY | >16 mJ/cm2 |
| WATER INLET FITTING | 1⁄4” OD Push-to-Connect |
| WATER OUTLET FITTING | 1⁄4” OD Push-to-Connect |
| LED LIFE-TIME (ON DEMAND) | 1,000 hours |
| SERIES NAME | ArrowMAX 2.0 |
| COLOR / FINISH FAMILY | Gold |
| PACKAGE QUANTITY | 1 |
| PACKAGE CONTENTS | Acuva ArrowMAX 2.0 UV-LED unit , Advanced Pre-filter , 1/4” OD Tube , Filter Clip , In-line filter , Flow Restricter , Power Plug Cable , Smart Faucet (optional) , Smart Faucet Cable (optional with the Smart Faucet), 1⁄2” PEX to 1⁄4” OD Tee/Shut-off Valve (optional with the Smart Faucet) |
| PRE-FILTER | Advanced Pre-Filter |
| PRE-FILTER LIFE | 6-12 months (depending on the usage) |
| NUMBER OF FILTERS | 1 |
| SMART FAUCET INCLUDED | Yes (optional) |
| CAN SERVE MULTIPLE FAUCETS | Yes |
| HOUSEHOLD SIZE | 4+ people |
| RECOMMENDED USE | All water types |
| WARRANTY | 1-year |
| BASE WARRANTY LABOR | 12 months |
| BASE WARRANTY PARTS | 12 months |
| ELECTRONICS WARRANTY LABOR | 12 months |
| ELECTRONICS WARRANTY PARTS | 12 months |
| SPECIAL WARRANTY LABOR | 12 months |
| TANK WARRANTY PARTS | 12 months |
| FILTRATION METHOD | Microbial filtration |
| WATER DISINFECTION RATE | 99.9999% |
| REDUCES BACTERIA | Yes |
| REDUCES CHLORINE TASTE AND ODOR | Yes |
| REDUCES CHEMICALS | Yes |
| REDUCES CYSTS | Yes |
| REDUCES IRON | Yes |
| REDUCES LEAD | Yes |
| REDUCES MERCURY | Yes |
| REDUCES MICRO-ORGANISMS | Yes |
| REDUCES PHARMACEUTICALS | Yes |
| REDUCES SEDIMENT | Yes |
| REDUCES TURBIDITY | Yes |
| REVERSE OSMOSIS FILTRATION | No |
