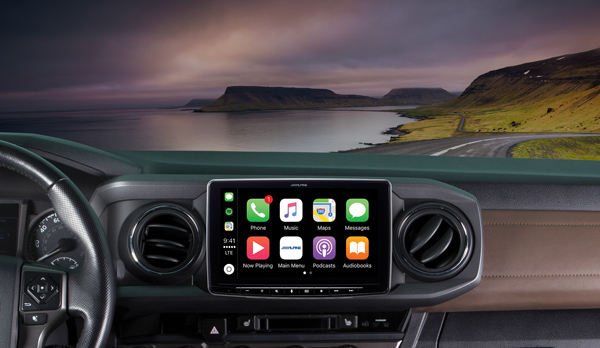

GET THE APPEAL OF A LARGE SCREEN WITHOUT THE NEED OF A CUSTOM INSTALLATION
The iLX-F309 is the perfect solution with a 9-inch touch screen that hovers over the dash but uses a standard 1-DIN chassis for installation. The iLX-F309 brings a large screen to a variety of vehicles without the need for custom installation. It uses Apple CarPlay and Android Auto to optimize your main smartphone features in a way that lets you concentrate on driving.
- 9-inch WVGA hovering capacitive touch screen
- Tapered display housing and silver trim for a clean, modernized fit and finish
- Standard 1-DIN chassis designed to fit aftermarket ISO Din dash kits for various vehicle applications
- Access your maps, music, calls and messages through Apple CarPlay or Android Auto
- Retain and display vehicle information and features (iDatalink Maestro module, sold separately)
- Audio, video, and Bluetooth feature set
- HD Radio tuner built in
- SiriusXM Ready (SXV300 Connect Vehicle Tuner Kit sold separately, SiriusXM subscription required)
9-INCH TOUCHSCREEN USER INTERFACE AND ANTI-GLARE SCREEN
The iLX-F309 s intuitive interface allows for touch action control. You are just one touch away from the most commonly accessed features:
- Touch to the Left to access the Audio
- Touch Down to access the adjustment settings to the Audio system or Rear Seat Entertainment system (sold separately)
- Touch Up to access Source Selection options to access all your entertainment sources (such as HD Radio, Pandora, SiriusXM, Bluetooth audio streaming, etc.)
The ILX-F309 s 9-inch screen is attached to an adjustable mount connected to a 1-DIN chassis. The screen hovers over or in front of the dash while its rear housing tapers off cleanly at the edges for a thin and modern silhouette. Various mounting positions allow for screen to be positioned to avoid features on the dash such as air vents and buttons around the radio.

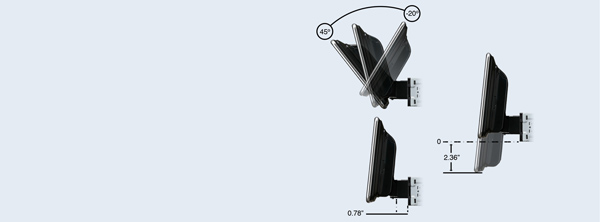

There are four pre-set angle points (45,20°,0°,-20)to allow for better viewing of the screen. The screen can also be positioned 20mm deep from the default position to be closer to the dash, and higher or lower up to 30mm from the default position to adjust for height in the dash. Once the desired screen position is determined, the screen and mount get fixed to the chassis for a sturdy fit and finish.

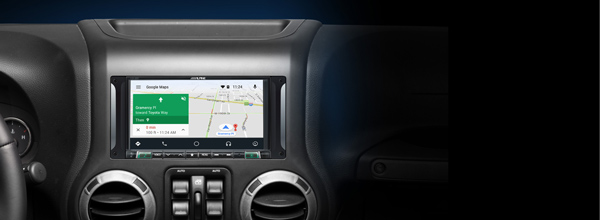

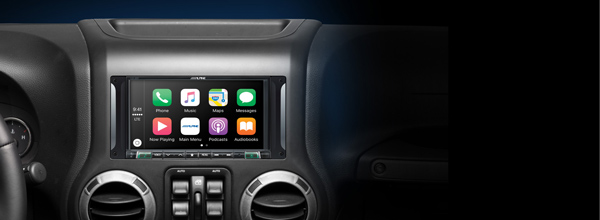

APPLE CARPLAY & ANDROID AUTO
Be smart when using your smartphone on the road. The ILX-F309 is compatible with both Apple CarPlay and Android Auto. After connecting your smartphone via the charging cable, and activating Bluetooth for Android Auto use, you get your music, driving directions, and phone calls – all controlled from the 7-inch touchscreen and heard through your Wrangler’s speaker system -- so you don’t have to look at or touch your phone and can keep it safely stored away.
The ILX-F309 does not have a built-in GPS navigation system. Instead, navigation guidance is provided by the maps feature in Apple CarPlay or Android Auto so you get voice and onscreen driving directions directly on the 7-inch touchscreen.
The ILX-F309 “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the “Voice” hard button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).
The iLX-F309 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an Android™ phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands free.
Apple CarPlay and Android Auto give you access to popular apps such as:
- Waze: (via Android Auto only) The world’s largest community based traffic and navigation app
- Spotify: A digital music service that gives you access to millions of songs
- Amazon Music, and more
For information on third party apps, please visit the Apple CarPlay and Android Auto websites. Android, Android Auto and Google Play are trademarks of Google, Inc.

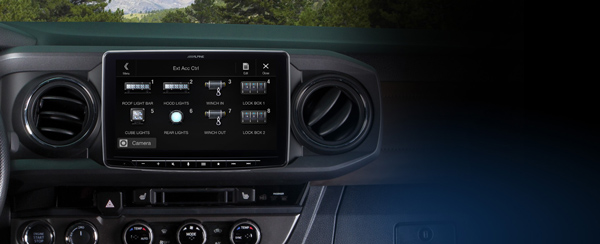

TAKE THE COMMAND CENTER BEYOND THE DASH
Have you upgraded your Wrangler with accessories like a winch, light bar, and tire air compressor? No need to add switches that clutter your dash. Now you can conveniently control these accessories directly from the ILX-F309’s touchscreen! The KAC-001 Accessory Controller (sold separately) turns the ILX-F309 into a hub to connect and control these accessories. Eight individual outputs are available to control eight relay-connected accessories, and the accessories can be configured as Pulsed, Latched or Momentary Outputs. Preloaded graphical icons can be assigned to each accessory for quick identification on the screen.

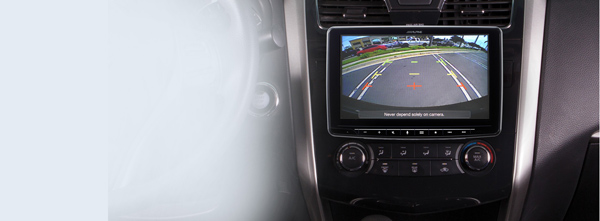

ADD A REAR CAMERA, OR MORE, IF NEEDED
Make blind spots a distant memory. The iLX-F309 has a rear camera input and overlays guidelines onto the camera image on the 9-inch screen to aid with distance judging (camera sold separately). Multiple cameras (for the rear and side) can be added when used through the KCX-C2600B Multi-Camera Selector (cameras and switcher sold separately).
KEEP SELECT FACTORY CONTROLS
The iLX-F309 is compatible with the iDatalink Maestro® Module (sold separately) to retain and display vehicle information on the 9-inch screen. Information such as steering wheel controls, tire pressure, engine codes and HVAC control may be accessible from the iLX-F309 (information will vary by vehicle).

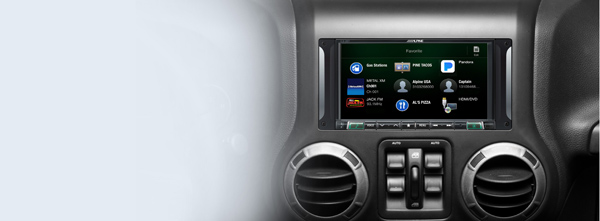

CUSTOMIZABLE SHORTCUTS AT YOUR FINGERTIPS
The My Favorites feature offers convenient shortcuts for the functions that you use the most, such as:
- Audio Sources (HD Radio™, Pandora®, iPod®, SiriusXM, HDMI/DVD, AUX)
- Phone Settings (Most-dialed Contacts)
A shortcut soft key on the touch screen within all audio and phone sources makes it even easier to add sources than before. Easily add, delete, and re-arrange your shortcut icons by dragging the icon(s) to a new location on the screen. Your settings are kept as a personal profile linked to your smartphone via Bluetooth.

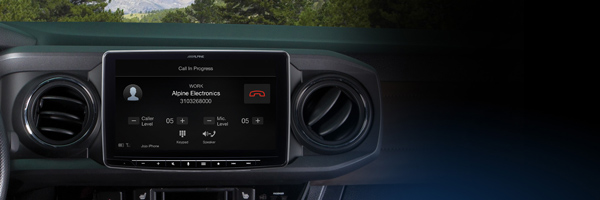

BLUETOOTH HANDS-FREE CALLING AND AUDIO STREAMING
Be smart when using your phone on the road. The built-in Bluetooth® wireless technology allows for hands-free calling, secure simple pairing (SSP) and call waiting. Icons depicting phone battery level and cellular signal level are shown on the 9-inch screen. Expand your entertainment options with audio streaming from your smartphone.
NOW ENJOY MORE CONTENT
Your entertainment, your way. Whether it’s your favorite radio station on SiriusXM or streaming the latest music from your smartphone, the ILX-F309 aims to keep you entertained where ever your adventures take you.
HDMI: More Entertainment With Just One Cable
Now it's possible to enjoy even more content than ever before through your ILX-F309. Add the KCX-630HD HDMI Selector Interface to the i209-WRA for an extra HDMI input allowing you to stream audio and video from your smartphone or other HDMI based sources.
Built-In Digital HD Radio®
Alpine does HD Radio. Get all the local music and programming you want to hear in a crystal-clear digital format. FM stations with CD-quality sound and AM stations with FM-quality sound, both with virtually no distortion. Extend your music choices further with multi-casting capability and you'll hear more talk and music content from the stations you already receive. Alpine’s exclusive Smart Reception Management keeps you tuned in to your favorite HD digital sub-channels, even when you’re in an area with limited digital reception. To find stations near you, visit HD Radio.
Works with Pandora® Internet Radio for iPhone and Android™ Smartphones
Stream music from your Android smartphone using Alpine’s advanced wireless technology. With your Android, enjoy easy wireless operation of your favorite Pandora channels with Thumbs Up/Thumbs Down buttons directly on the faceplate, Quick Search features, and even create new Pandora stations and bookmark your favorite tunes on-the-go. Alpine’s Media XPander PRO DSP-Sound Expansion circuitry ensures the best possible sound for streaming music from your Pandora connection. To enjoy the same great Pandora features from your iPhone, simply connect the included iPod / iPhone audio / video cable.
Made for iPod® / Works with iPhone®
It’s convenient to control your iPod or iPhone in the car – enjoy seamless operation of your iPod in addition to full control of all your favorite media sources. Control all search options of your iPod directly from the I207-WRA via Playlist, Artist, Album, Song, Genre, Podcast or Composer. The USB connection allows for high-quality iPod / iPhone playback and delivers an even faster access speed so you’ll find songs as quickly as you expect to find them on your iPod / iPhone.
Satellite Radio Ready
Upgrade your sound experience and expand your entertainment choices by adding SiriusXM satellite radio to your ILX-F309. Using the SiriusXM Connect Vehicle Tuner and a SiriusXM subscription (both required and sold separately), you get access to an extensive channel lineup of new and exclusive commercial-free music, sports and comedy and SiriusXM Latino, a suite of Spanish-language programming. The i209-WRA lets you control SiriusXM features including iTunes® Tagging; SiriusXM Replay™ for pause, rewind and replay of up to 30 minutes of live SiriusXM content; Song Alert and Artist Alert for notifications when a favorite song or artist is playing on any channel; and Game Alert™ for notifications when your favorite teams from the NFL, NBA, NHL or college football and basketball leagues are playing live.
FLAC Music Playback
Do you enjoy lossless music files? The ILX-F309 can play FLAC music files via USB, so you can enjoy your digital audio files without a loss in compression quality.

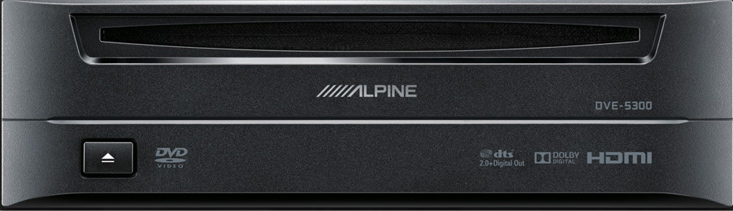

Still Have CDs & DVD?
The ILX-F309 is compatible with the add-on DVE-5300 CD/DVD Player (sold separately) which can be mounted remotely in the vehicle. So if you have content living on CDs and DVDs, rest assured that you can still enjoy your CD music for your drives and access the DVDs in your vehicle while parked. The DVE-5300 can playback these formats: CD audio, MP3, WMA, MPEG2 AAC, MPEG4 AAC, WAV, DVD Video and Video CD.
