1 CHANNEL POWER AMPLIFIER
- 800 watts × 1 channel @ 2-Ohms
- 1100 watts × 1 channel @ 1-Ohm
- Signal to Noise Ratio: -89.0dB
- Variable Gain Control
- Variable Low-Pass Crossover
- Variable Bass Boost Control
- Variable Phase Control
- Remote Subwoofer Level Control Included
- Preamp output
- Ground Loop Isolation Circuit
- Speaker Level Inputs
- Tri-On Remote Turn-On Circuit (Remote, Signal or BTL Detect)
- Corrosion resistant chassis Conformally Coated PCB for marine use
- Integrated XC-Tune DSP Processing
- BC3 DLC (Digital Level Control) Included (-60 to +5dB, 0.1dB Step, Channel Selection)
- Tri-On Remote turn-on circuit (Remote, Signal or BTL Detect)
- Speaker Level Input Adapters included
- Dimensions: 13-5/32 x 6-7/8 x 2-3/16 inchs
- Dimensions: 330 x 175 x 56 mm

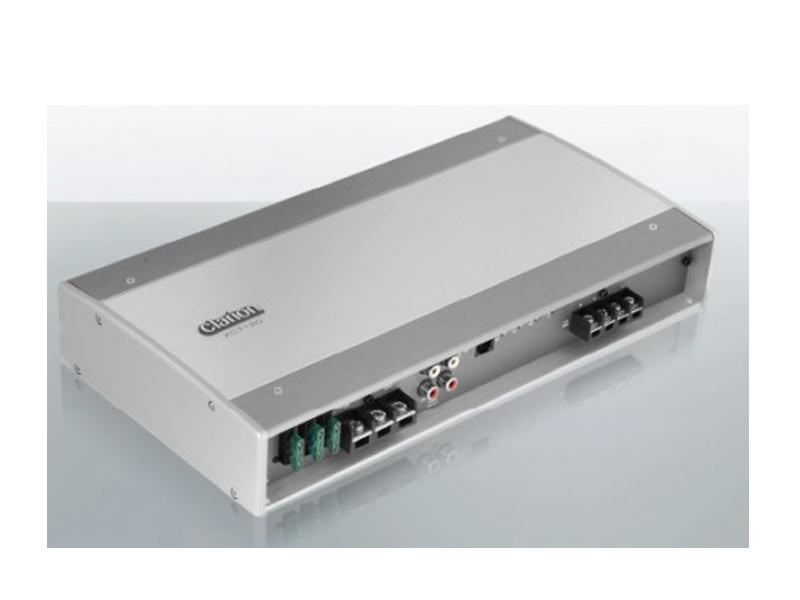

XC7120 Amplifier Overview
The XC7120 is the new big-brother to the famous XC6120. Designed to take advantage of the latest in high-frequency Class D drivers and state of- the-art surface mounting components to produce clear, detailed bass response to the tune of 1100 watts continuous. A BC2 Remote Level Control, adjustable crossover, adjustable infrasonic filter, bass boost and phase control make the XC7120 easy to tune for any application.
Circuit Design Achieves High Quality Sound
Circuit Design Achieves High Quality Sound Clarion amplifiers feature uncompromising resistance to magnetic noise, thereby minimizing distortion, as well as high quality block terminals to offer low electrical and contact resistance. Easy subwoofer system configuration is possible with the embedded high pass and low pass filters. The result is high quality sound you can enjoy in a variety of systems.
Corrosion Resistant RCA and Block Terminals on all XC series Amplifiers
By utilizing corrosion resistant RCA and block terminals, XC series amplifiers offer improved durability and reliability in harsh environments. The XC series amplifiers are true marine amplifiers with oversized aluminum heatsinks and locking power terminals for the harsh marine conditions.
MOS-FET Power Amp
There’s only one way for Clarion’s main units to deliver unyielding power output and linearity: MOS-FET amplification, or Metal Oxide Semiconductor Field Effect Transistor amplification. Smaller and more efficient than conventional power supplies, a MOS-FET amplification circuit delivers power with less distortion and zero On/Off switching noise. This means you can crank up the volume or set it to easy listening. Either way, your sound will be crystal clear.
2-Ohm Stability
Utilizing this design for peak performance and unwavering reliability, Clarion’s amplifiers can drive lower impedance loads for increased power.
CEA 2006 Power Ratings
- 350 × 1 RMS [4Ω @ ≤ 14.4V 1% THD+N]
- 600 x 1 RMS [2Ω @ ≤ 14.4V 1% THD+N]
- 1100 x 1 RMS [1Ω @ ≤ 14.4V 1% THD+N]
- S/N -90.7 dBA (Ref: 1W into 4Ω)
