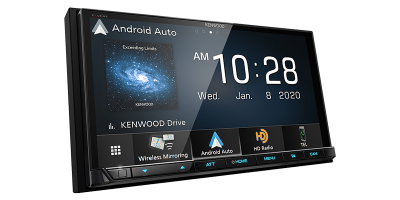

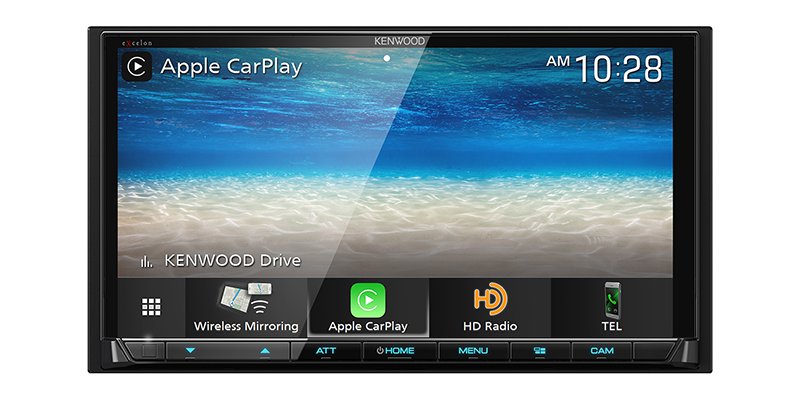

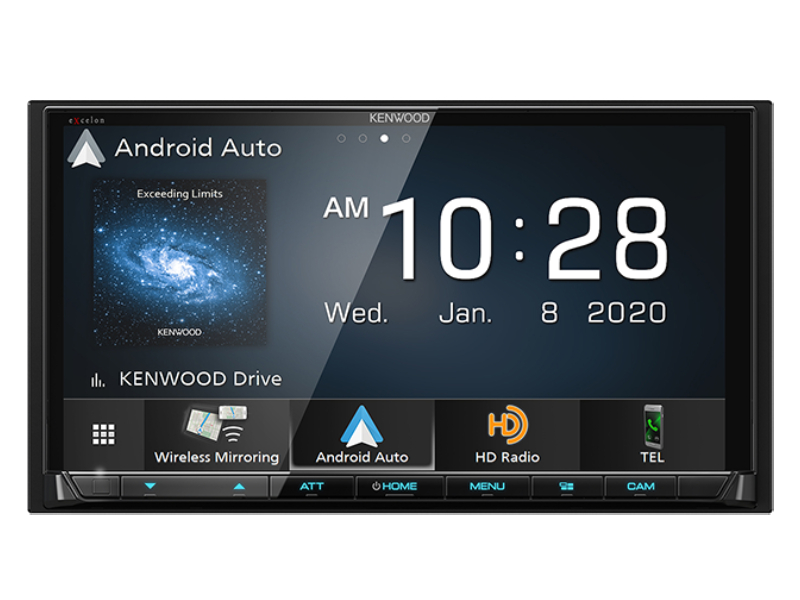

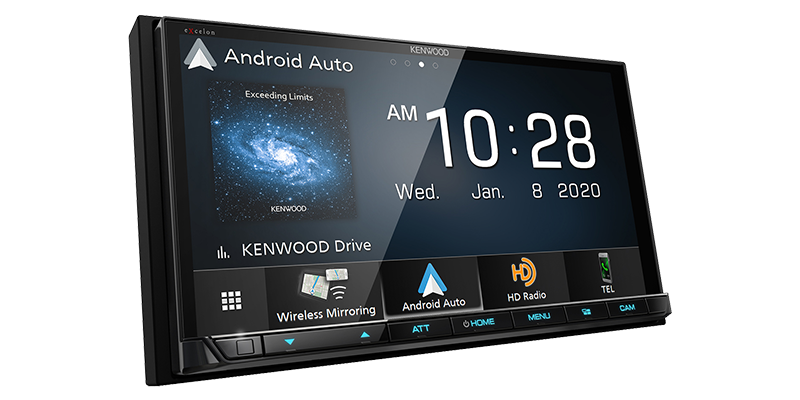

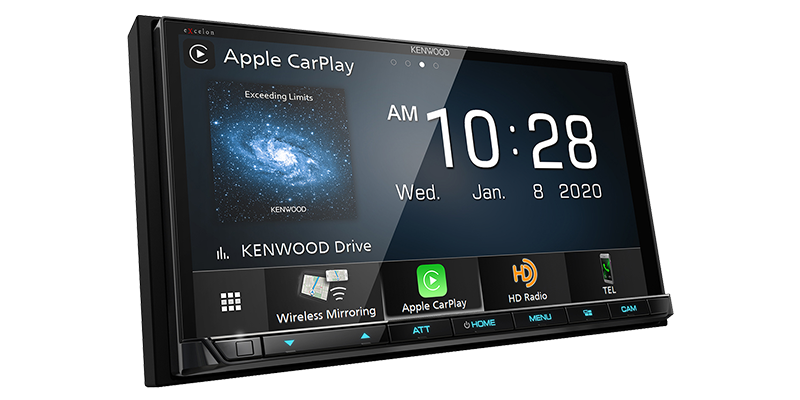

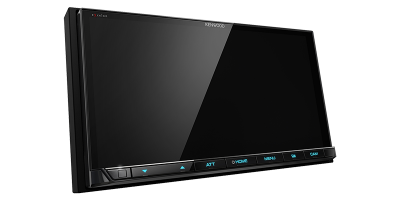

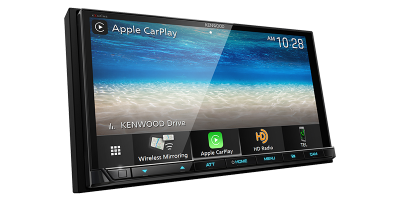

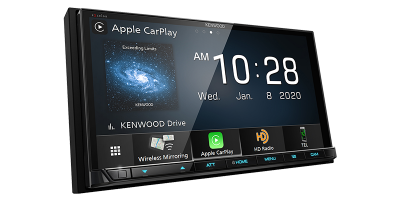

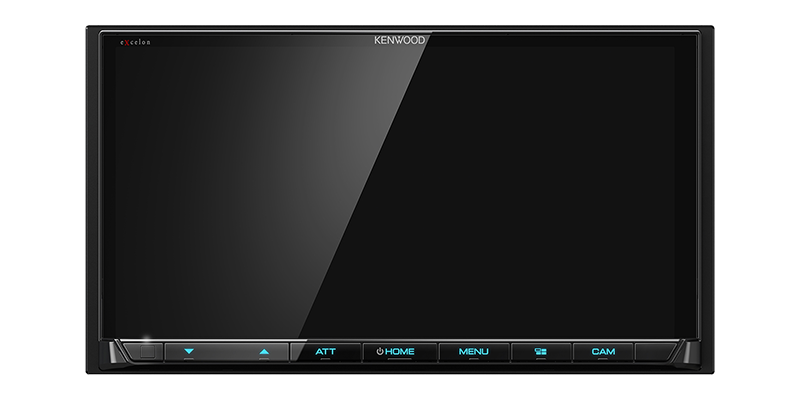

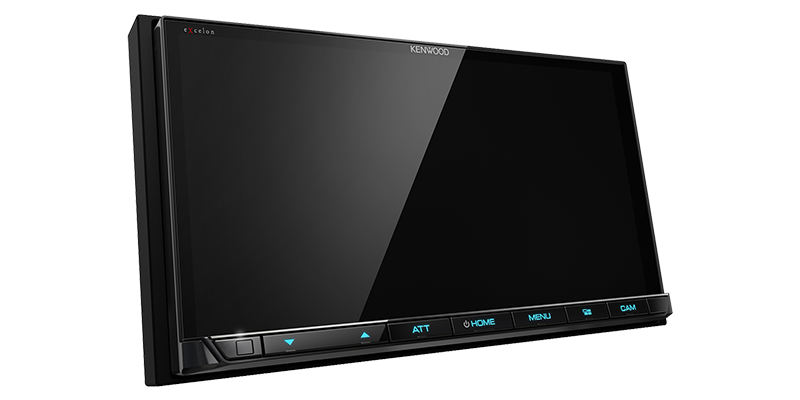

- 6.95" WVGA Monitor with Capacitive Touch Panel
- Android Auto™ & Android Auto™ Wireless
- Wired and Wireless Apple CarPlay™
- High-Resolution Audio
- Wireless Mirroring for Android
- USB Mirroring for iPhone and Android

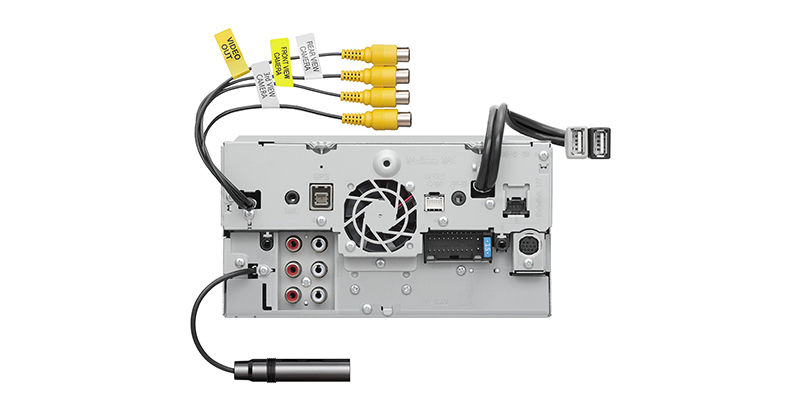

- 4 Camera Inputs
- Built-in Bluetooth & HD Radio
- 3 Preouts 5V
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.
Additional Features

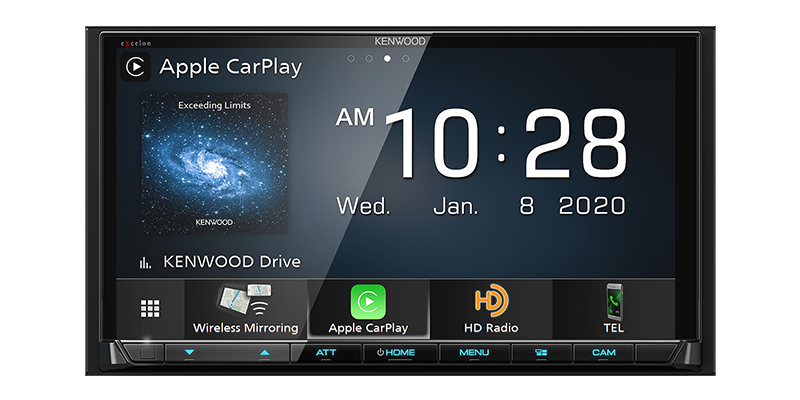

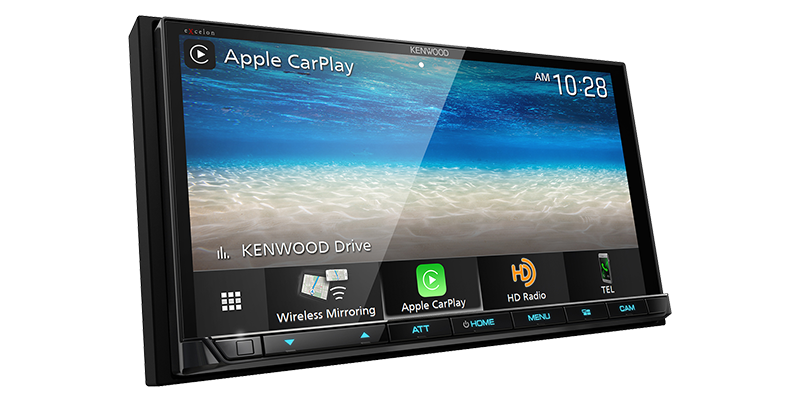

Customizable Multi Widget Screen
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, and more.
Equipped with Dual USB Ports
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
Built-in HD Radio Tuner
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
Remote Control (Optional)
This receiver unit can be operated using the optional remote control KNA-RCDV331.
| Wi-Fi | |
|---|---|
| Output Power 5GHz/SISO | 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / |
| Output Power 5GHz/SISO | 11a:9dBm±2dB / |
| Output Power 2.4GHz/SISO | 11n(20MHz):12dBm±2dB |
| Output Power 2.4GHz/SISO | 11b:14dBm±2dB / 11g:13dBm±2dB / |
| Transfer rates (MAX) | 11ac: 867 Mbps |
| Transfer rates (MAX) | 11g: 54 Mbps / 11n: 300 Mbps / |
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / |
| Channels | Auto(149,153,157,161ch) |
| Channels | Auto(1-11ch) |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) |
| IEEE Standard | 802.11 a/b/g/n/ac |
| Wireless Mirroring Section | |
| Touch Control | UIBC |
| Copyright protection | HDCP2.2 |
| Mode | Sink |
| USB I/F Section | |
| Dynamic range | 89dB |
| Signal to Noise ratio | 98.5dB |
| Total harmonic distortion 1kHz | 0.010% |
| 44.1k Sampling | 20 - 20,000 Hz |
| 48k Sampling | 20 - 22,000 Hz |
| 96k Sampling | 20 - 44,000 Hz |
| Frequency response 192k Sampling | 20 - 88,000 Hz |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
| D/A Converter | 24/32Bit |
| Maximum Power Supply Current | DC5V=1.5A |
| File System | FAT 16/32, exFAT, NTFS |
| USB Standard | USB2.0 High Speed |
| Monitor Section | |
| Back lighting | LED |
| Pixel arrangement | RGB striped arrangement |
| Effective pixels | 99.99% |
| Number of pixels | 800H x 480V x RGB |
| Number of pixels | 1,152,000 |
| Drive system | TFT active matrix system |
| Display system | TN LCD panel |
| Picture size | 6.95 inches(diagonal) wide |
| W x H | 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch |
| Bluetooth Section | |
| SLOPE | -12/-18/-24[dB/Oct.] |
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] |
| SLOPE | -12/-18/-24[dB/Oct.] |
| Band PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through |
| Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] |
| SLOPE | -12/-18/-24[dB/Oct.] |
| HIGH PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k |
| SLOPE | 3Way X'Over |
| SLOPE | -6/-12/-18/-24[dB/Oct.] |
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] |
| SLOPE | -6/-12/-18/-24[dB/Oct.] |
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
| Gain | 2Way X'Over |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] |
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k |
| BAND | 13Band |
| DSP Section | Graphics equalizer |
| Profile | PBAP (Phonebook Access Profile) |
| Profile | - |
| Profile | AVRCP (V1.6) (Audio/Video Remote Control Profile) |
| Profile | A2DP (Advanced Audio Distribution Profile) |
| Profile | SPP (Serial Port Profile) |
| Profile | HFP (V1.7) (Hands Free Profile) |
| Multi Profile Support | Multi Profile |
| Audio Codec | SBC / AAC |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| RF Output Power (E.I.R.P.) | 4dBm (MAX), Power Class 2 |
| Frequency | 2.402 2.480 GHz |
| Technology | Bluetooth Ver5.0 |
| Wi-Fi | |
| Output Power 5GHz/MIMO | 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB |
| Output Power 5GHz/MIMO | 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / |
| Output Power 5GHz/SISO | 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB |
| Video | |
| Audio Output level (Mini jacks) | 0.9 V / 10 kOhms |
| Audio Output level (RCA jacks) | - |
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms |
| External audio max input level (RCA jacks) | - |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms |
| External video input level (RCA jacks) | - |
| Color system of external video input | NTSC/PAL |
| AM | |
| Usable sensitivity | 28dB |
| (Frequency step) | (10kHz) |
| Frequency Range | 530kHz - 1700kHz |
| FM | |
| Stereo separation | 45dB (1kHz) |
| Selectivity | Over 80dB ( |
| S/N (dB) | 65dB (MONO) |
| Frequency response | ( |
| Frequency response | 30Hz - 15kHz |
| DIN S/N 46dB | 1.13V / 75Ohms |
| Quieting sensitivity | 10.2dBf |
| S/N30dB | 0.8V/75 |
| Usable sensitivity | 9.3dBf |
| (Frequency step) | (200kHz) |
| Frequency Range | 87.9MHz - 107.9MHz |
| Digital AM | |
| S/N | 80dB (STEREO) |
| Frequency Response | ( |
| Frequency Response | 40Hz - 15kHz |
| (Frequency step) | (10kHz) |
| Frequency Range | 530kHz - 1700kHz |
| Digital FM | |
| S/N | 80dB (STEREO) |
| Frequency Response | ( |
| Frequency Response | 20Hz - 20kHz |
| (Frequency step) | (200kHz) |
| Frequency Range | 87.9MHz - 107.9MHz |
| Bluetooth Section | |
| Subwoofer Level | -50 to 10dB |
| Gain | -8 to 0dB |
| SLOPE | Position |
| Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) |
| Connectivity | |
| Weight Main unit | (Excluding trim plate and sleeve) |
| Weight Main unit | 3.8 lb |
| Weight Main unit | 1.7 kg |
| (with Sleeve) | 7-3/16 x 4-7/16 x 6 inch |
| (with Sleeve) | 182mm x 112mm x 153mm |
| Installation Dimensions WxHxD | 7 x 3-15/16 x 6-1/8 inch |
| Video | |
| Analog RGB input | - |
| Connectivity | |
| Maximum Power Output (Front&Rear) | 50Wx4 |
| Typical Power Output (Front&Rear) | Full Bandwidth Power |
| Typical Power Output (Front&Rear) | (at less than 1%THD) |
| Typical Power Output (Front&Rear) | 22Wx4 |
| Output frequency band | 20 - 88,000Hz |
| Preout level (V) | 5V / 10kOhms |
| Preout impedance () | =< 300 Ohms |
| Speaker Impedance () | 4-8 Ohms |
| Speaker Impedance () | Navigation Section |
| Installation Dimensions WxHxD | 178mm x 100mm x 155mm |
