- 6.8" WVGA Monitor
- Apple CarPlay® & Android Auto™ Ready
- High-Resolution Audio Ready
- Customizable Multi Widget Screen
- 3 Camera Inputs
- Built-in Bluetooth
- 3 Preouts 4V
Advanced Navigation
Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier.
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.

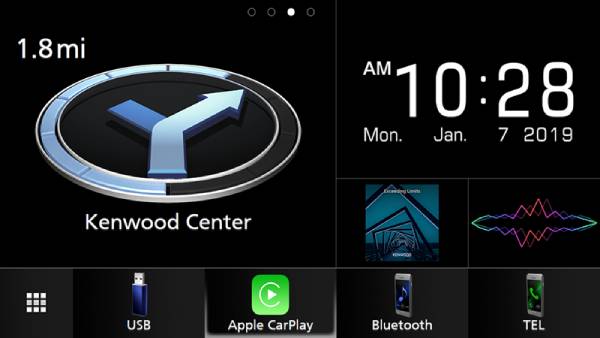

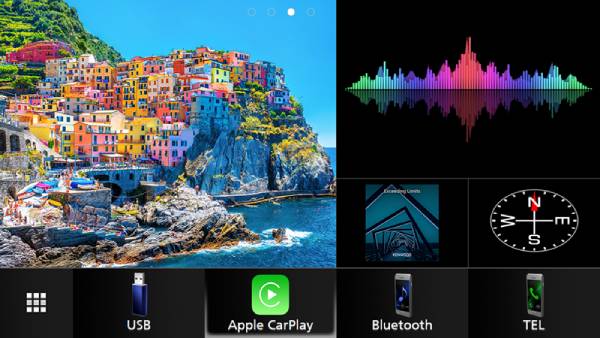

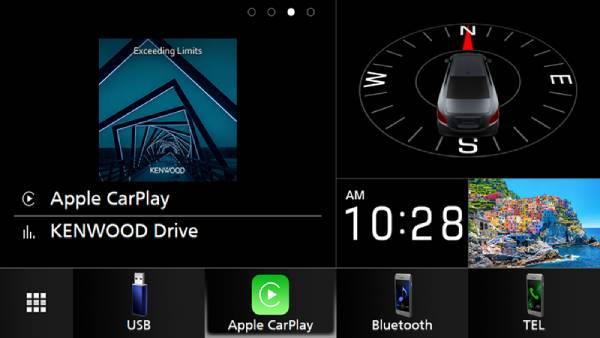

Customizable Multi Widget Screen
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)
| Video | |
|---|---|
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms |
| Color system of external video input | NTSC/PAL |
| AM | |
| Usable sensitivity | 28dBμ |
| Frequency Range (Frequency step) | 530kHz - 1700kHz (10kHz) |
| FM | |
| Stereo separation | 45dB (1kHz) |
| Selectivity | Over 80dB (±400kHz) |
| S/N (dB) | 65dB (MONO) |
| Frequency response (±3.0dB) | 30Hz - 15kHz |
| Quieting sensitivity DIN S/N 46dB | 10.2dBf 1.13μV / 75Ohms |
| Usable sensitivity S/N30dB | 9.3dBf 0.8μV/75Ω |
| Frequency Range (Frequency step) | 87.9MHz - 107.9MHz (200kHz) |
| DSP Section | |
| Position - Subwoofer Level | -50 to +10dB |
| Position - Gain | -8 to 0dB |
| Position - Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) |
| 2Way X'Over - SLOPE | -6/-12/-18/-24[dB/Oct.] |
| 2Way X'Over - LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] |
| 2Way X'Over - SLOPE | -6/-12/-18/-24[dB/Oct.] |
| Graphics equalizer - Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] |
| 2Way X'Over - HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
| Graphics equalizer - BAND | 13Band |
| Graphics equalizer - frequency (Hz) | (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k |
| Bluetooth Section | |
| Profile | HFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) |
| Audio Codec | SBC / AAC |
| Multi Profile Support | Multi Profile |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Frequency | 2.402 – 2.480 GHz |
| Technology | Bluetooth Ver5.0 |
| SD Section | |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
| Data Transfer Rate | Maximum 25MB/sec |
| Capacity | Maximum 2T Byte |
| Compatible File System | FAT 16/32, exFAT, NTFS |
| SD Standard | SD / SDHC / SDXC |
| USB I/F Section | |
| Dynamic range | 89dB |
| Signal to Noise ratio | 98.5dB |
| Total harmonic distortion 1kHz | 0.0001% |
| Frequency response - 44.1k Sampling | 20 - 20,000 Hz |
| Frequency response - 48k Sampling | 20 - 22,000 Hz |
| Frequency response - 96k Sampling | 20 - 44,000 Hz |
| Frequency response - 192k Sampling | 20 - 88,000 Hz |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
| D/A Converter | 24/32Bit |
| Maximum Power Supply Current | DC5V=1.5A |
| USB Standard | USB2.0 High Speed |
| File System | FAT 16/32, exFAT, NTFS |
| Monitor Section | |
| Back lighting | LED |
| Pixel arrangement | RGB striped arrangement |
| Effective pixels | 99.99% |
| Number of pixels | 1,152,000 800H x 480V x RGB |
| Display system | TN LCD panel |
| Drive system | TFT active matrix system |
| W x H | 151.8 mm x 79.68 mm, 5-31/32 x 3-1/8 inch |
| Picture size | 6.75 inches(diagonal) wide |
| Video | |
| Audio Output level (Mini jacks) | 0.9 V / 10 kOhms |
| Audio | |
| Maximum Power Output (Front&Rear) | 50Wx4 |
| Typical Power Output (Front&Rear) | Full Bandwidth Power (at less than 1%THD) 22Wx4 |
| Output frequency band | 20 - 88,000Hz |
| Preout level (V) | 4V / 10kOhms |
| Preout impedance (Ω) | =< 300 Ohms |
| Speaker Impedance (Ω) | 4-8 Ohms |
| Navigation Section | |
| Receiver | High-sensitivity GPS receiver |
| Receiving frequency | 1575.42MHz (C/A code ) |
| Acquisition Times | Cold: 29 seconds(typ) All satellites at -130dBm Without aiding |
| Update Rate | 1/second, continuous |
| Accuracy | Position: < 2.5meters,CEP, at -130dBm |
| Accuracy | Velocity: 0.1meter/sec |
| Positioning Method | GPS |
| Antenna | External GPS Antenna |
| General | |
| Operating voltage | 12V DC Car Battery |
| Maximum Current consumption | 15A |
| Installation Dimensions WxHxD | 178mm x 100mm x 155mm 7-3/16 x 4-7/16 x 6-2/16 inch |
| (with Sleeve) | 182mm x 112mm x 153mm 7-3/16 x 4-7/16 x 6 inch |
| Operational temperature range | -10°C to +60°C |
| Weight Main unit | 1.7 kg 3.8 lb |
