Kenwood Navigation DVD Receiver With Bluetooth And High Resolution Audio - DNX577S
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Andre's Electronic Experts offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
$949.00 CAD

Or as low as $158.17/month over 6 months. Apply Now


Delivery in 2 to 4 weeks

Literature
  • 6.8" WVGA Monitor
  • Apple CarPlay™ & Android Auto™
  • High-Resolution Audio
  • Customizable Multi Widget Screen
  • Dash Camera Link
  • USB Mirroring for iPhone and Android
  • 4 Camera Inputs
  • Built-in Bluetooth
  • 3 Preouts 4V
  • Garmin Navigation

Advanced Navigation

Equipped with the industry leading Garmin navigation software,offering a variety of display options to make your driving easier.

Smartphone Connectivity

Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Safe Driving

Keeping you safe on the road ahead is our top priority.

Additional Features

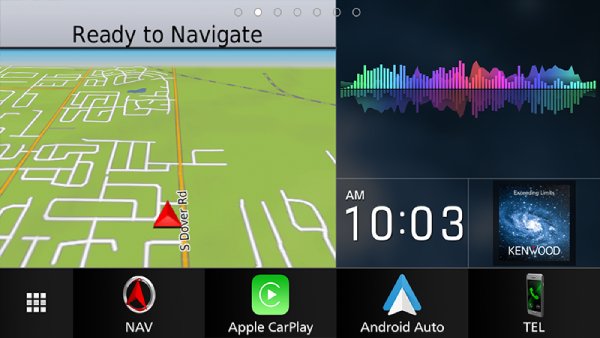

Customizable Multi Widget Screen

You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.

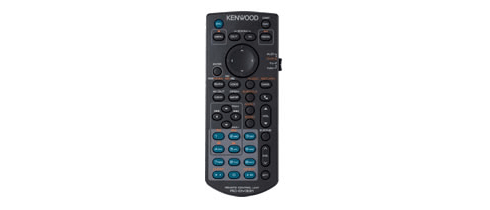

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KNA-RCDV331.

Video
Video Input level (RCA jacks)1 Vp-p / 75 Ohms
External audio max input level (Mini jacks)2 V / 25 kOhms
External audio max input level (RCA jacks)-
External video input level (Mini jacks)1 Vp-p / 75 Ohms
External video input level (RCA jacks)-
Color system of external video inputNTSC/PAL
AM
Usable sensitivity28dB
(Frequency step)(10kHz)
Frequency Range530kHz - 1700kHz
FM
Stereo separation45dB (1kHz)
SelectivityOver 80dB (±400kHz)
S/N (dB)65dB (MONO)
(±3.0dB)30Hz - 15kHz
Frequency response30Hz - 15kHz
DIN S/N 46dB1.13V / 75Ohms
Quieting sensitivity10.2dBf
S/N30dB0.8V/75
Usable sensitivity9.3dBf
(Frequency step)(200kHz)
Frequency Range87.9MHz - 107.9MHz
Bluetooth Section
Subwoofer Level-50 to 10dB
Gain-8 to 0dB
Front / Rear /Subwoofer Delay0 - 20.01ft (0.03or0.04ft Step)
SLOPEPosition
SLOPE-6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE-6/-12/-18/-24[dB/Oct.]
HIGH PASS FILTER frequencyThrough/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
Gain2Way X'Over
Gain-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
frequency (Hz) (BAND1-13)62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
BAND13Band
DSP SectionGraphics equalizer
ProfilePBAP (Phonebook Access Profile)
Profile-
ProfileAVRCP (V1.6) (Audio/Video Remote Control Profile)
ProfileA2DP (Advanced Audio Distribution Profile)
ProfileSPP (Serial Port Profile)
ProfileHFP (V1.7) (Hands Free Profile)
Multi Profile SupportMulti Profile
Audio CodecSBC / AAC
Maximum Communication rangeLine of sight approx.10m(32.8ft)
RF Output Power (E.I.R.P.)4dBm (MAX), Power Class 2
Frequency2.402 2.480 GHz
TechnologyBluetooth Ver5.0
SD Section
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
Data Transfer RateMaximum 25MB/sec
CapacityMaximum 2T Byte
Compatible File SystemFAT 16/32, exFAT, NTFS
SD StandardSD / SDHC / SDXC
USB I/F Section
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
D/A Converter24/32Bit
Maximum Power Supply CurrentDC5V=1.5A
File SystemFAT 16/32, exFAT, NTFS
USB StandardUSB2.0 High Speed
DVD Section
Quantifying bit number16 / 20 / 24bit
DISC FormatDVD-Video / VIDEO-CD / CD-DA
Dynamic range89dB (DVD-Video 96k)
Signal to Noise ratio90.5dB (DVD-Video 96k)
Total harmonic distortion 1kHz0.010%
44.1k Sampling20 - 20,000 Hz
48k Sampling20 - 22,000 Hz
Frequency response 96k Sampling20 - 44,000 Hz
Wow & FlutterBelow Measurable Limit
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
Audio DecoderDolby Audio
Audio DecoderLinear PCM
D/A Converter24 / 32Bit
Monitor Section
Back lightingLED
Pixel arrangementRGB striped arrangement
Effective pixels99.99%
Number of pixels800H x 480V x RGB
Number of pixels1,152,000
Drive systemTFT active matrix system
Display systemTN LCD panel
W x H151.8 mm x 79.68 mm, 5-31/32 x 3-1/8 inch
Picture size6.75 inches(diagonal) wide
Video
Video Output level (RCA jacks)1 Vp-p / 75 Ohms
Audio Output level (RCA jacks)-
Audio Output level (Mini jacks)0.9 V / 10 kOhms
Analog RGB input-
Audio
Maximum Power Output (Front&Rear)50Wx4
Typical Power Output (Front&Rear)Full Bandwidth Power
Typical Power Output (Front&Rear)(at less than 1%THD)
Typical Power Output (Front&Rear)22Wx4
Output frequency band20 - 88,000Hz
Preout level (V)4V / 10kOhms
Preout impedance ()=< 300 Ohms
Speaker Impedance ()4-8 Ohms
Navigation Section
ReceiverHigh-sensitivity GPS receiver
Receiving frequency1575.42MHz (C/A code )
Acquisition TimesCold: 29 seconds(typ)
Acquisition TimesAll satellites at -130dBm Without aiding
Update Rate1/second, continuous
AccuracyPosition: < 2.5meters,CEP, at -130dBm
AccuracyVelocity: 0.1meter/sec
Positioning MethodGPS
AntennaExternal GPS Antenna
Installation Dimensions WxHxD178mm x 100mm x 155mm
Installation Dimensions WxHxD7 x 3-15/16 x 6-1/8 inch
(with Sleeve)182mm x 112mm x 153mm
(with Sleeve)7-3/16 x 4-7/16 x 6 inch
Weight Main unit2.1 kg
Weight Main unit4.6 lb
Weight Main unit(Excluding trim plate and sleeve)
