Literature
Incomparable
SoloXS always promises high-excursion design, made for ultra-deep bass at very high volume. It’s developed like no other KICKER subwoofer.

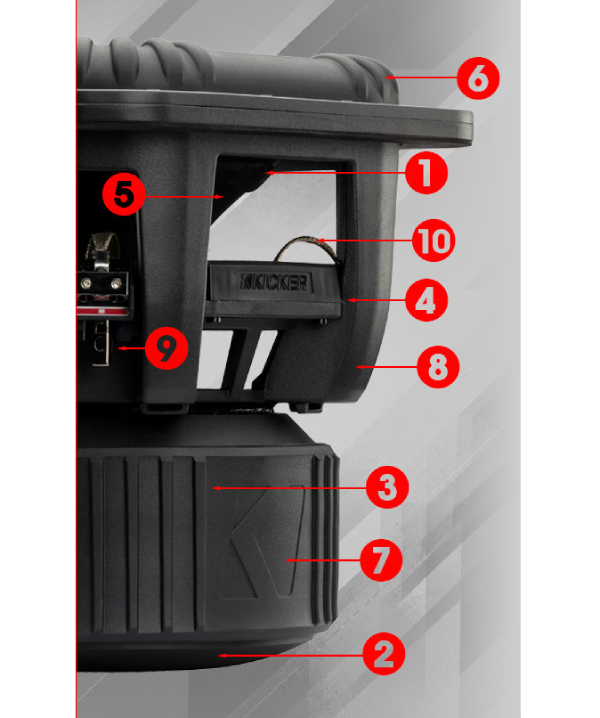

Features
- Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and forget the glue
- KICKER exclusive Forced Air Cooling™
- Three-inch (12" and 15") and four-inch (18") aluminum voice-coil former
- Extra-large dual-spider suspension
- Double-pressed pulp cone
- Next-gen surround made from proprietary NBR material
- Custom rubber boot for oversized ferrite magnet
- Max-cooling, cast-aluminum basket
- Single 8 AWG push terminal and dual 4 AWG terminal block
- Dual tinsel leads with considerably more strands than L7X
| Specifications | |
|---|---|
| Top Plate Thickness (in, mm) | 0.8, 20 |
| Size (in, cm) | 18, 45.7 |
| Xmax (in, mm) | 1.71, 43.1 |
| Rated Impedance (Ohms) | 1 DVC |
| Recommended Vented Box Volume (Cu. Ft., L) | 6.5, 184.1 |
| Rec Amp Power RMS | 2000-4000 |
| Port Opening (in x in, cm x cm) | 6.5 x 19.5, 16.5 x 49.5 |
| Frequency Response | 16-100 |
| Port Length (in, cm) | 27.75, 70.5 |
| Magnet Diameter (in, cm) | 11, 28 |
| Vented Enclosure Tuning Frequency (Hz) | 28 |
| Total Magnet Weight (oz, kg) | 830, 23.5 |
| Voice Coil Diameter (in, mm) | 4, 102 |
| Voice Coil Winding Width (in, mm) | 3.4, 86.2 |
