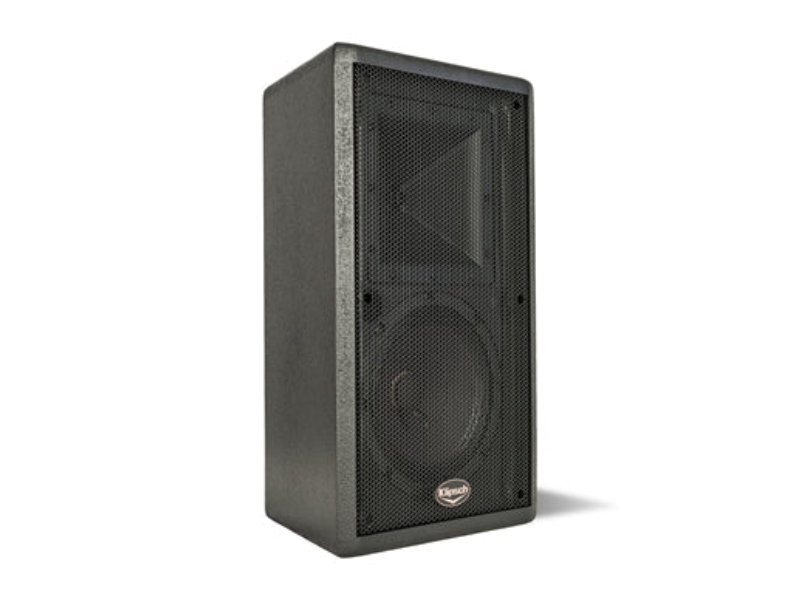

The KI-102-SMA-II is a compact two-way trapezoidal loudspeaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.
The KI-102-SMA-II features a hybrid Tractrix "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.
CNC fabrication techniques dado “lock-tab” and rabbet joint construction contribute to industry leading reliability maximum precision and ruggedness and a cabinet remarkably free from resonance and cabinet-induced coloration. Mounting capabilities include top and bottom attachments for the optional SB-102 “U”-shaped bracket.
| Specifications | |
|---|---|
| COMPONENTS | One K-81-ST 8" woofer, One K-103-TI-KP 1” titanium compression, driver on a K-802-M horn |
| CROSSOVER FREQUENCY | 2 kHz |
| OVERLOAD PROTECTION | KLIP Overload Protection Circuit-HF |
| NOMINAL IMPEDANCE | 8 ohms, minimum 4.9 ohms @ 184 Hz |
| DIRECTIVITY FACTOR (Q) | 5 |
| DIRECTIVITY INDEX (DI) | 7 dB +/- 1 dB 1 kHz - 17 kHz |
| COVERAGE | Horizontal: 90° +/- 20º 2.1 kHz - 19 kHz, Vertical: 90° +/- 30º 2.5 kHz - 19 kHz |
| SENSITIVITY | 95 dB |
| MAXIMUM SPL | 115 dB Continuous,121 dB Peak |
| POWER HANDLING | 200 watts (31V),800 watts peak |
| FREQUENCY RESPONSE1 (+/- 3 dB) | 88 Hz - 17 kHz (-10 dB @ 56 Hz) |
| ACCESSORIES | SB-102 Mounting Bracket |
| FINISHES | Black, White and Raw MDF |
| WEIGHT | 24 lbs. (10.90kg) |
| DEPTH | 9.3” (23.77cm) |
| WIDTH | 11.6” (29.46cm) front, 4.2” (10.67cm) rear |
| HEIGHT | 18.9” (48.00cm) |
| ENCLOSURE MATERIAL | 3/4" MDF |
| MOUNTING OPTIONS | 2 screw: 1/4” x 20 Machine screw for SB-102 Bracket |
| INPUT CONNECTION | Two point barrier strip |
