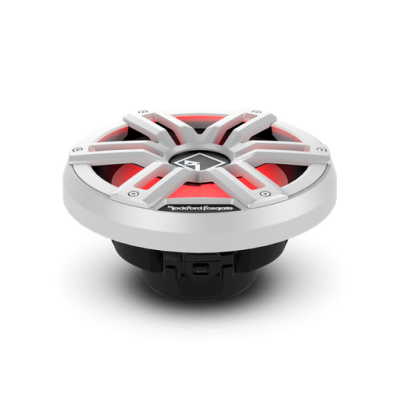

Rockford Fosgate M2 10 Inch DVC 4Ω Color Optix Sealed Enclosure Marine Subwoofer - M2D4-10S
M2D4-10S
The M2D4-10S is a 10” DVC 4-Ohm Color Optix™ subwoofer that connects with our Rockford Fosgate Color Optix™ controller and RF Connect™ App, allowing you to customize your own color patterns. Connectivity is handled through integrated Deutsch™/Amphenol™ connectors that make wiring simple and error proof. Wiring with the Versa Switch™ allows you to quickly configure the voice coil in series or parallel with flip of switch. This “S” model is optimized for small sealed enclosures where space is at a premium. Includes 2-piece grille with interchangeable colored plastic and stainless-steel insert.
The M2 series of Element Ready™ subwoofers are IP67 certified, making them truly purpose-built for marine and motorsport applications where protection from damaging UV rays and water spray is essential. They are designed to pair with the Rockford Fosgate Color Optix™ controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. Matching the theme of your boat can be further customized by using the included color insert or stainless-steel grille for that sport look.
- Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Optimized for small sealed enclosures when there is very little space for an enclosure
- Element Ready™ design protects against outdoor exposure
- IPX6 Marine Grade for prevention of water intrusion
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Deutsch™ connector front/rear silicone seal protects against water ingress
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- Klippel Verified certification program delivers the best possible loudspeakers
- 2-Year Warranty
Technologies
Element Ready™ - Subwoofers
These subwoofers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware.
VAST Surround - Marine
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
VERSA Switch
Allows you to easily switch Dual Voice Coils into a Series or Parallel configuration.
IPX6 Water Intrusion Rated
Water projected in powerful jets from any direction shall have no harmful effects.
ASTM B117 Testing
ASTM B117 500Hr Salt/Fog Testing Standards
ASTM G154 Testing
ASTM G154 500Hr Accelerated UV testing
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
| Specifications | |
|---|---|
| Size | 10" |
| Nominal Impedance (Ohms) | 2-Ohm or 8-Ohm Switchable |
| Power Handling (Watts RMS) | 400 Watts |
| Voice Coil Diameter | 1.95" (49.53 mm) |
| Voice Coil Type | Dual Voice Coil |
| Magnet Weight (oz) | 32.9 oz. (0.9 Kg) |
| Fs (Hz) | 28 |
| Re (Ohms) | 6.5 |
| Le (mH) | 3.43 |
| Sd (cm2) | 363 |
| Qms | 5.18 |
| Sealed Box Volume (Vb) | 0.5 cu. ft. (14 Liters) |
| Qes | 1.07 |
| Qts | 0.89 |
| Vas | 38.2 |
| SPL (dB @ 1w/1m) | 86 |
| Xmax (mm) | 12.0 |
| Woofer Displacement | 0.07 cu. ft. (2.03 Liters) |
| Speaker Connector | Deutsch™ and 1/8" Spade |
| Cutout Diameter | 8.87 in. (225.3 mm) |
| Mounting Depth | 4.24 in. (107.7 mm) |
| Shipping Weight | 8.5 Lbs. (3.85 Kg) |
