- Slide-in Design
- Intelligent Control
- 22K Double Burner
More stylish look, more ways to cook
Bring more style, convenience and power to your kitchen. It adds a modern, built-in look by simply sliding in between cabinets. And it provides intuitive messaging and remembers your cooking habits. A 23k Double Burner also delivers powerful heat and precise control for fast and even cooking.

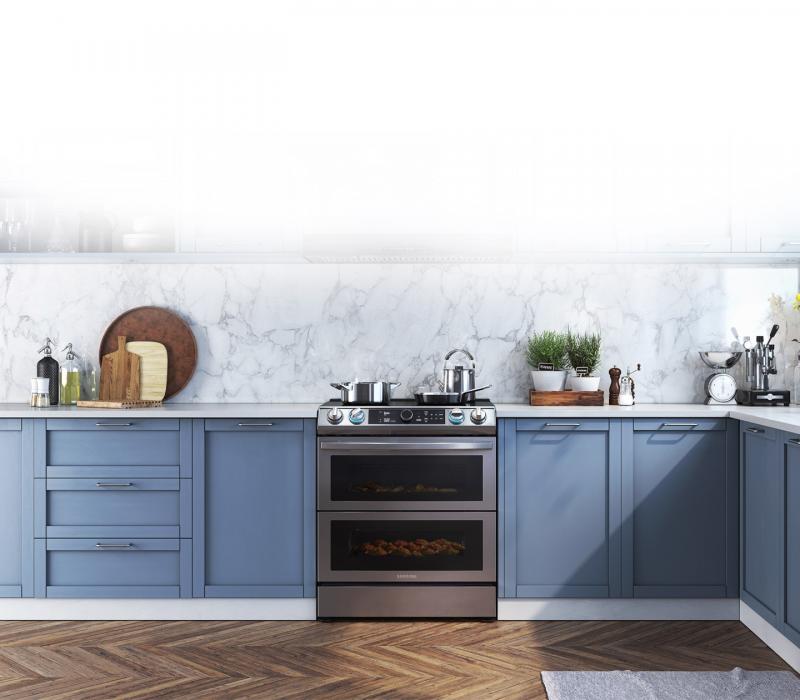

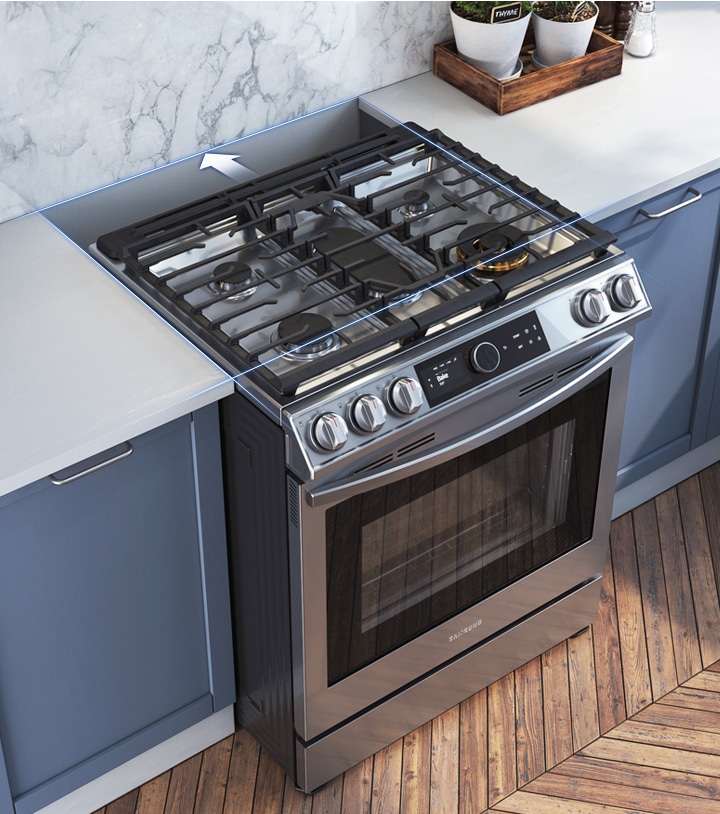

Upgrade to a modern and built-in look
Give your kitchen a premium and stylish built-in look. The slide-in design provides a modern and integrated appearance. Simply nestle it between your cabinets to upgrade the kitchen without remodeling.

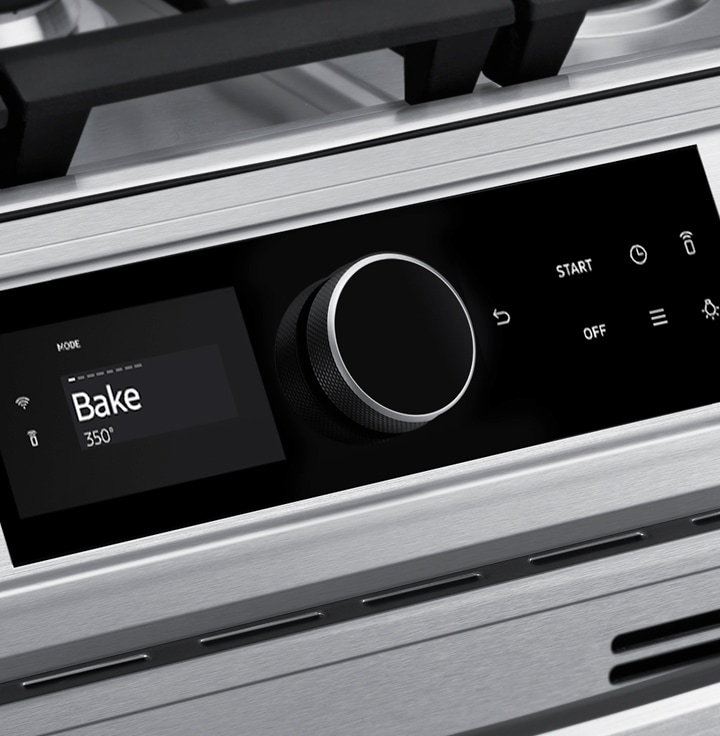

A simply more intuitive way to cook
The new Samsung Range offers intuitive messaging on an LCD, one knob and minimum buttons. The oven also remembers your cooking habits, or you can save your favourite settings or hide modes. In addition, it includes a number of safety features and provides easy troubleshooting.

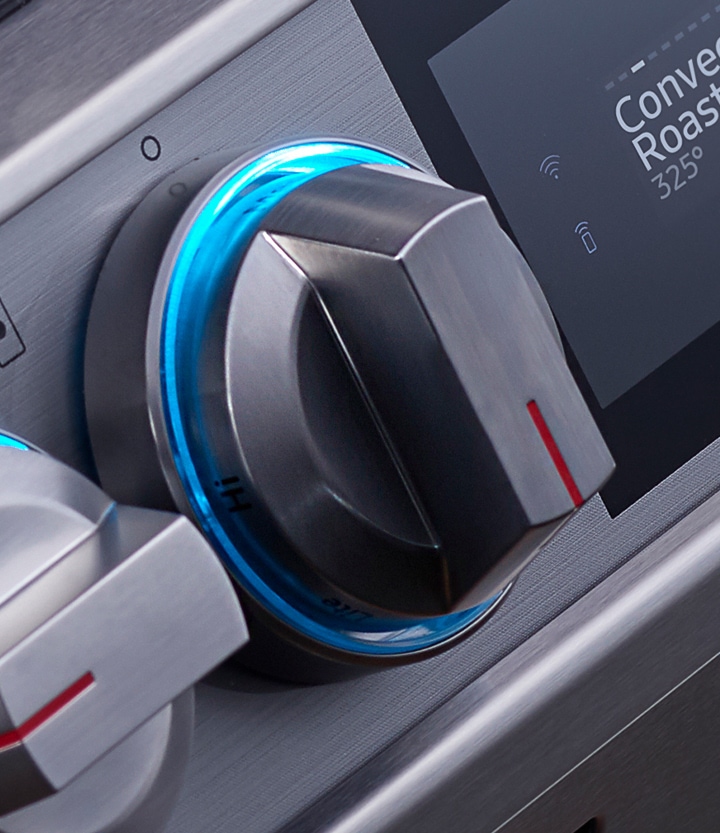

Worry less with the added peace of mind with the Illuminated Knob. You can easily check if the burners are on or off at a glance, even from a distance. The large, ergonomic design of the metallic knobs makes the knobs easy to grip for precise temperature control. And they add a stylish, premium look.

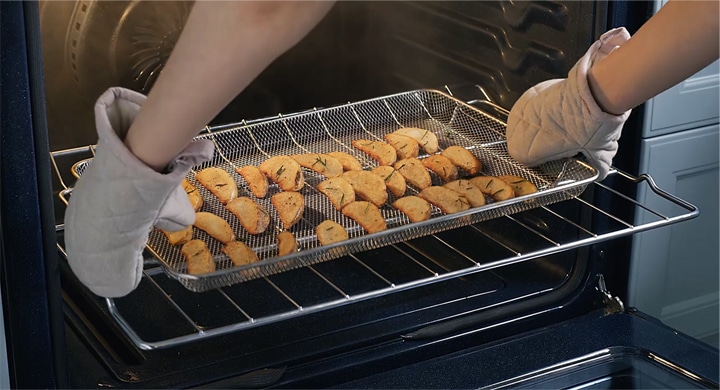

Fries food using little oil
Air Fry combines a special tray with hot air circulation that envelops food. Its the ideal way to cook French fries, Tater Tots or even vegetables as it eliminates excess fat while leaving the food still crispy and brown on the outside and juicy on the inside.

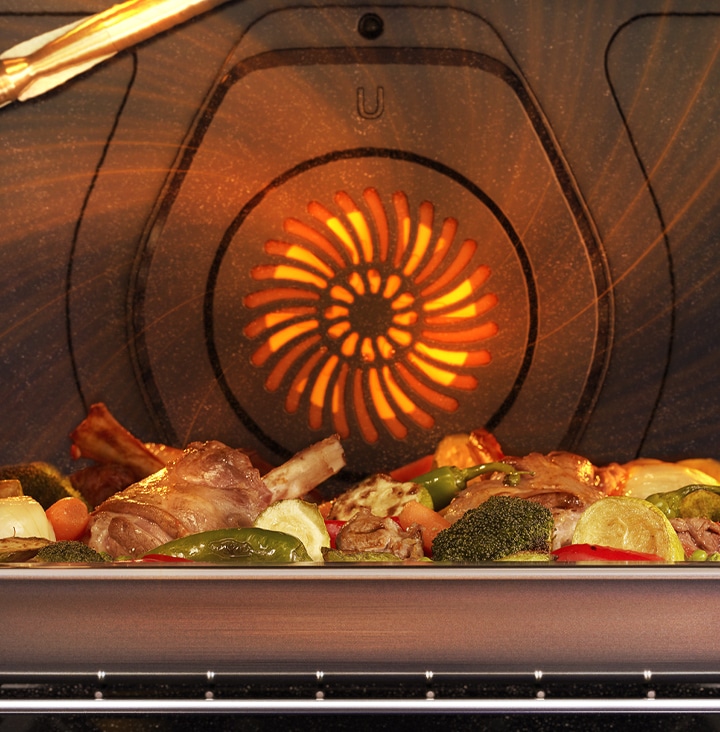

Save time and cook food evenly with a True Convection system, which is great for baking and broiling. A heated fan distributes heat all around the oven and keeps the temperature constant. So dishes are cooked quickly and thoroughly.
Edge to Edge Grates
Enjoy usability and style with Edge to Edge Grates that minimize unused space. The wider cooking area will accommodate much larger dishes and you can use a greater variety of cookware. Being made of cast iron with a matte finish, the Grates also have a modern appearance, but are very robust.
Save time and do much more with Wi-Fi Connectivity. Simply monitor and control the oven using the SmartThings App*. You can preheat or turn it off and check and adjust the cooking temperature and time.

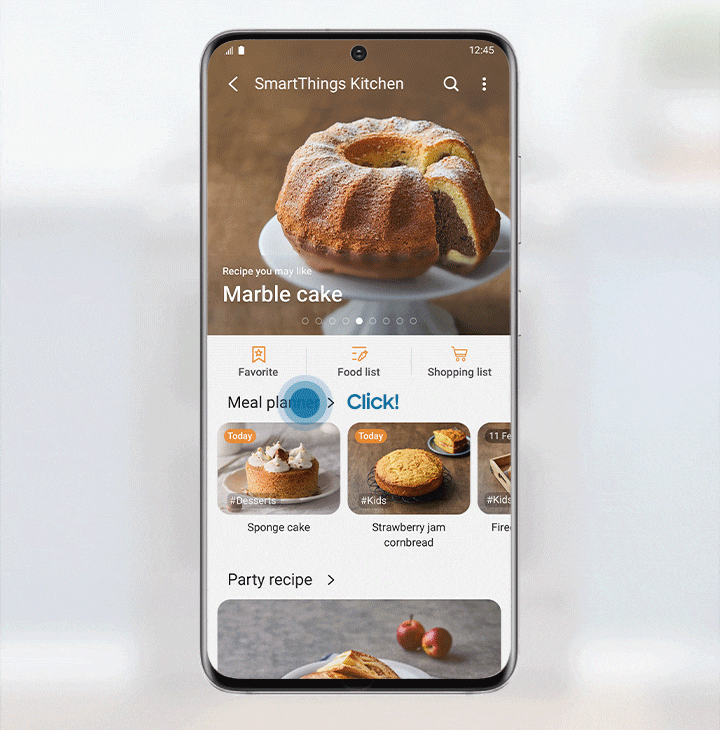

SmartThings Kitchen Service
The SmartThings Kitchen Service saves time and minimizes the burden of cooking. By understanding your needs it recommends personalized recipes. It also generates a weekly meal plan, enables seamless grocery shopping and offers an interactive experience.

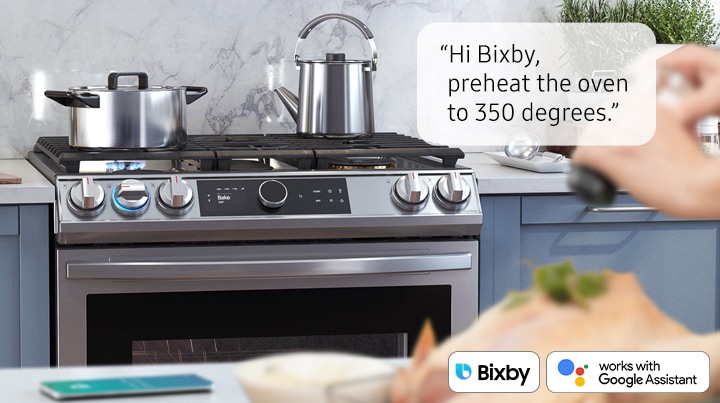

Control the oven with your voice. Using a voice assistant*, such as Samsung Bixby**, Amazon Alexa or Google Assistant, you can simply say what you want the oven to do and it will do it. You can easily turn it on/off, select functions and change settings, even if youre busy doing other things.

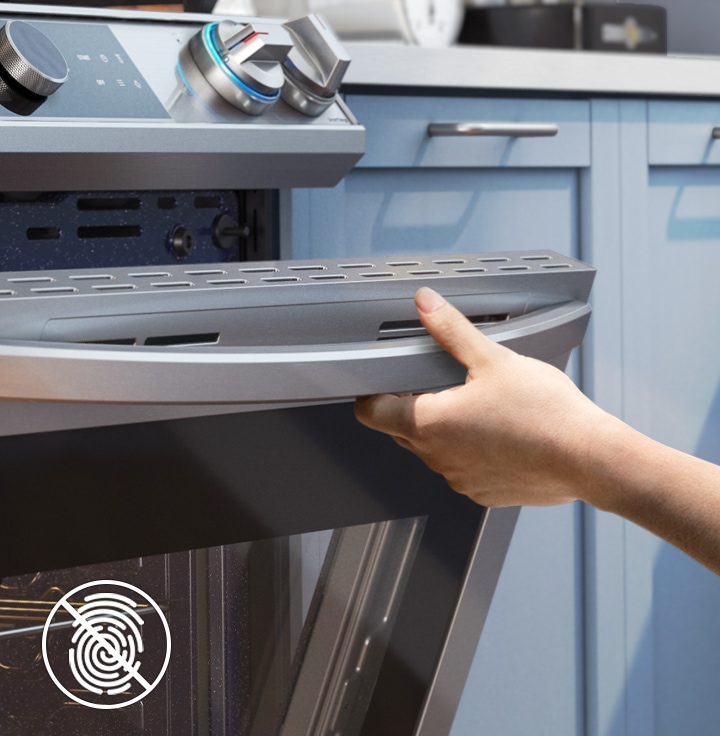

Fingerprint Resistant Finish
A special Fingerprint Resistant Finish prevents surfaces from becoming covered in unsightly fingerprints and other marks and smudges. And any fingerprints or marks can be quickly wiped away if they appear.

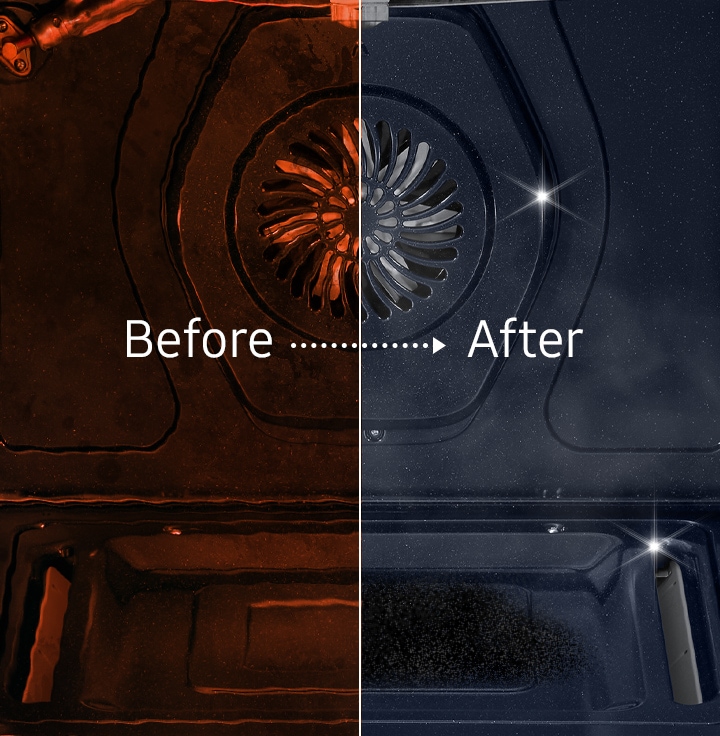

Keep the inside of your oven neat and clean without wasting time and effort scrubbing or using costly cleaning products. A Self Cleaning system heats the cavity to a high temperature to burn off grease and food residue.
|Installation Type||Slide In|
|Oven Capacity||6.3 cu.ft|
|Oven Capacity (Upper)||3.4 cu.ft|
|Oven Capacity (Lower)||2.7 cu.ft|
|Drawer Capacity||1.0 cu.ft|
|Oven Color||Dark Blue|
|Control Type (Oven)||Glass Touch + Dial|
|Control Type (Cooktop)||Knob|
|Door Type||Dual Door (4 STSS Layers)|
|Soft Closing Door||Yes|
|Child Safety Lock||Yes|
|Hidden Bake Element||No|
|Interior Light (Position)||2 Incandescent 40W(Back)|
|Light (Lamp) On/Off||Yes|
|Setting (Clock System Option (12H/24H))||Yes|
|Number of Burner||5 EA|
|Burner 1||23K - Right/Front|
|Burner 2||16K - Left/Front|
|Burner 3||5K - Right/Rear|
|Burner 4||9.5K - Left/Rear|
|Burner 5||10K - Center|
|Bake (Single)||175°F (80°C) - 550°F (285°C)|
|Variable Broil (Low-High) (Single)||Hi / Low|
|Convection Bake (Single)||175°F (80°C) - 550°F (285°C)|
|Convection Roast (Single)||175°F (80°C) - 550°F (285°C)|
|Variable Broil (Low-High) (Upper)||Hi / Low|
|Convection Bake (Upper)||175°F (80°C) - 480°F (250°C)|
|Convection Roast (Upper)||175°F (80°C) - 480°F (250°C)|
|Bake (Lower)||175°F (80°C) - 480°F (250°C)|
|Convection Bake (Lower)||175°F (80°C) - 480°F (250°C)|
|Convection Heater Element||1300W|
|Net (WxHxD)||(29 15/16) x (36 1/4 ~ 37) x (28 11/16) inch|
|Gross (WxHxD)||(33 1/16) x (41 3/4) x (30 5/16) inch|
|Weight (Net)||236.3 lb|
|Weight (Gross)||262.1 lb|
|Number of Rack Positions||7|
|Air Fry Tray||Yes|
|SmartThings App Support||Yes|
