10" Kicker L7R Subwoofer Dual two-Ohm Voice Coil - 45L7R102
45L7R102
Literature
The 10-inch L7R Square Sub moves more air and delivers bigger bass than circular subs, so you get more bump out of every watt!
Our square subs deliver more cone area. That means we deliver more bass, yet require no more air space than a standard round sub.
- Dual two-Ohm Voice Coil
- Wrap Around Gasketing
- Patented Ribbed Corners
- Injection-Molded SoloKon™ Woofer
- 360-Degree Back Bracing
- UniPlate™ Back Plate And Pole Piece
- Bumped Back Plate
- Thick Tinsel Leads
- Large Ceramic Magnet
- Steel Basket With Spoke Design
- Nickel Plated Speaker Terminals

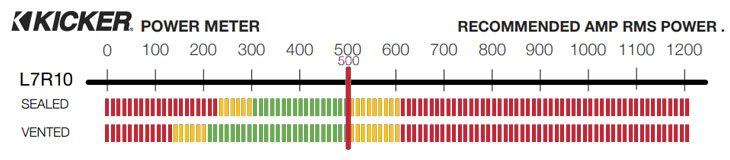

The L7R 10-Inch Subwoofer works best with 500 watts of recommended power in a sealed or ported enclosure.
| Specifications | |
|---|---|
| SIZE [in, cm]: | 10, 25 |
| IMPEDANCE [Ohms]: | 2 DVC |
| POWER WATTS [peak/RMS]: | 1000/500 |
| SENSITIVITY [dB 1w/1m]: | 85.9 |
| MOUNTING DEPTH [in, cm]: | 6-1/8, 15.7 |
| MOUNTING DIAMETER [in, cm]: | 9-5/16, 23.7 |
| MIN SEALED BOX VOL [cu. ft, L]: | .66, 18.7 |
| MAX SEALED BOX VOL [cu. ft, L]: | 1, 28.3 |
| MIN VENTED BOX VOL [cu. ft, L]: | 1.25, 35.4 |
| MAX VENTED BOX VOL [cu. ft, L]: | 2.25, 63.7 |
| What's in the Box: | 1 - 10" Subwoofer, 1 - install manual, 2 - Kicker stickers |
