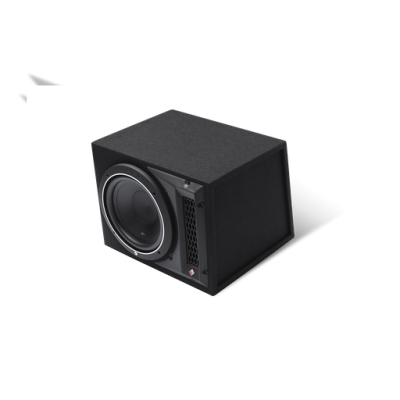

The P1-1X10 is a single P1 10” vented enclosure with 250 Watts RMS power handling wired to a 4-Ohm load. The enclosure is constructed with 5/8” MDF, covered in high density carpet, and features quick release compression terminals.
The most convenient way to get low frequency bass in your system is to drop-in a Punch Loaded enclosure. We're not talking junk in the trunk, we're talking the same genuine Punch woofers available separately. Punch Loaded enclosures are constructed with durable 5/8" MDF and tuned by our computer aided design software. P1 Loaded Enclosures feature similar tonal performance as P2 & P3 models, but are easier to move in-n-out of vehicles due to their lighter weight.
- Constructed with 5/8" MDF
- Proprietary high-flow, low-noise port
- High current binding posts
- 1 Year Warranty
Technologies
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
Specifications | |
---|---|
Enclosure Type | Vented |
Woofer Quantity | 1 |
Woofer Size | 10" |
Shipping Weight | 36 Lbs. (16.32 kg) |
Speaker Connector | Up to 10 AWG compression terminals |
Woofer Series | Punch P1 (P1S4-10) |
Nominal Impedance (ea) | 4-Ohm Internally wired to create a 4-Ohm amplifier load |
Enclosure Material | 5/8" MDF (Medium Density Fiberboard) |
Dimensions Box (H x W x D) Wedge (H x W x D1 x D2) | 13.125" x 17" x 15.125" (33.3cm x 43.2cm x 38.4cm) |
Power Handling (Watts RMS) | 250 Watts RMS , 500 Watts Max |
