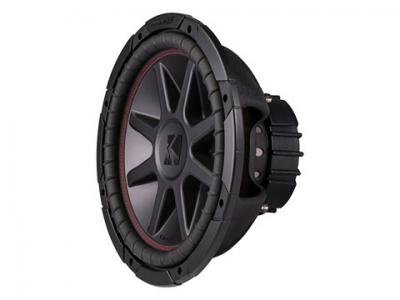

12" CompVR Subwoofer 4Ω Dual Voice Coil - 43CVR124
43CVR124
Literature
The KICKER® CompVR® Subwoofer gives you incredible bang for the buck. Emphasis on bang!
The CompVR 12-Inch Subwoofer is a 4Ω dual voice coil design, built for easy wiring.
CompVR creates your bass using high-temp, dual voice coils. A ribbed Santoprene surround also gives the cone added strength under stress. The perimeter venting, Spiralead™ tinsel-lead technology, and spring-loaded push terminals are part of the high-performance engineering standards found on every KICKER woofer.
The CompVR 12-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power.
| Specifications | |
|---|---|
| SIZE [in, cm]: | 12, 30 |
| IMPEDANCE [Ohms]: | 4 DVC |
| POWER WATTS [peak/RMS]: | 800/400 |
| SENSITIVITY [dB 1w/1m]: | 86.9 |
| MOUNTING DEPTH [in, cm]: | 6-1/4, 15.9 |
| MOUNTING DIAMETER [in, cm]: | 11, 27.8 |
| MIN SEALED BOX VOL [cu. ft, L]: | 1, 28.3 |
| MAX SEALED BOX VOL [cu. ft, L]: | 4.6, 130 |
| MIN VENTED BOX VOL [cu. ft, L]: | 1.75, 49.6 |
| MAX VENTED BOX VOL [cu. ft, L]: | 2.25, 63.7 |
