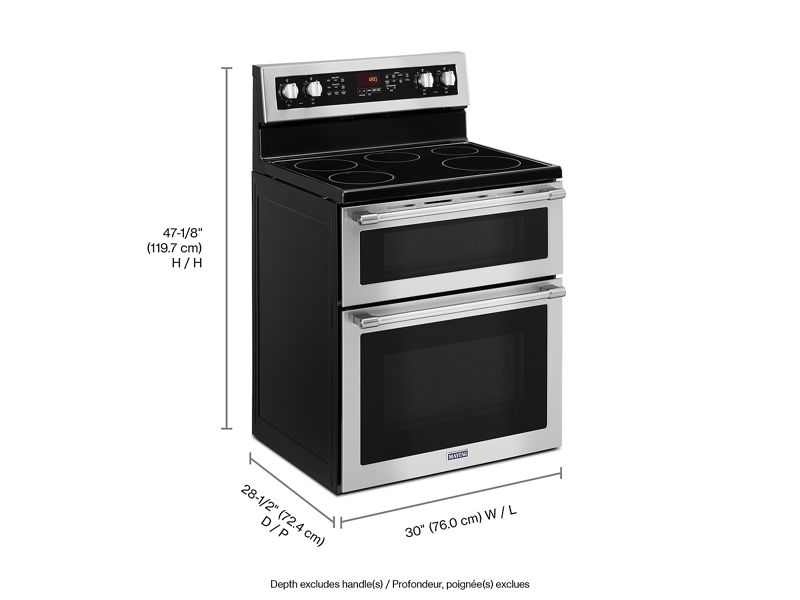

External Dimensions
Dimensions shown are for planning purposes only. For complete information, see Installation Instructions packed with product.
Depth : 28 1/2
Height : 47 1/8
Width : 29 15/16
Depth With Door Open 90 Degree : 46
Key Features
True Convection with Third Element : True convection uses a powerful third heating element and a sturdy fan to circulate even temperatures for faster baking and roasting.2
Power Preheat : Power Preheat lets you enjoy dinner faster3 with juicy flavor every time.

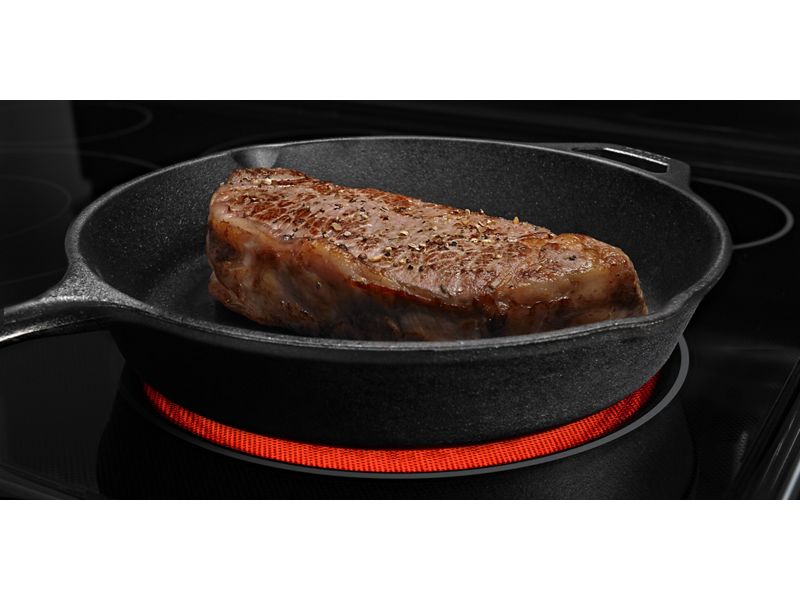

Power Element : The 10-inch Power Element allows for a slow, even saute and the intense heat for a seared, juicy steak.
Precision Cooking System : The Precision Cooking system uses sensor heating to help ensure each meal is cooked evenly.
Auto Convect Conversion : Auto Conversion adjusts your traditional recipes to the right convection time and temperature without all the complexity

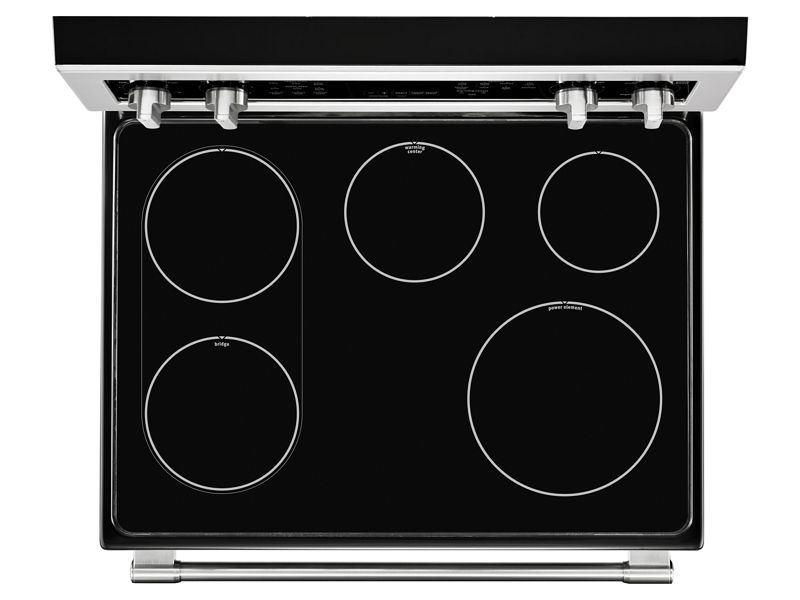

Bridge Element : The bridge element stretches across the cooktop to help ensure even heating when you're cooking with oversized, long, or oddly-shaped pots and pans.

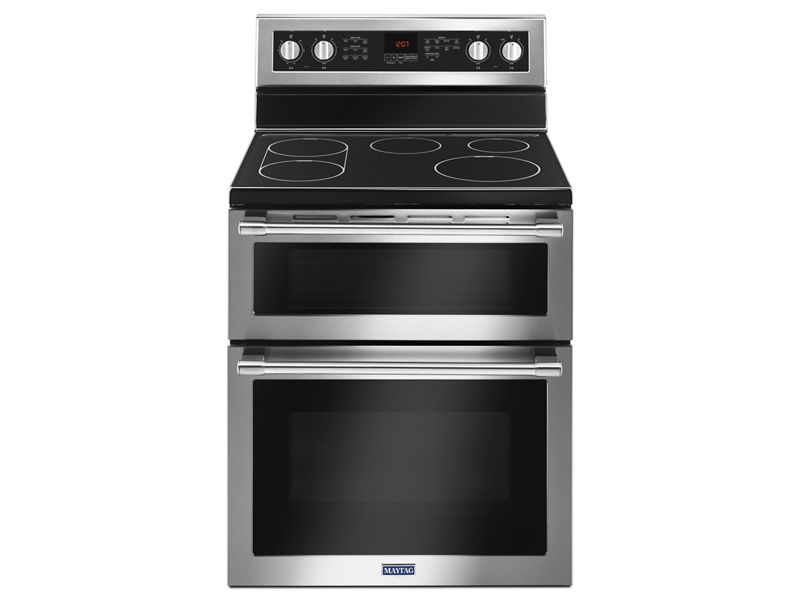

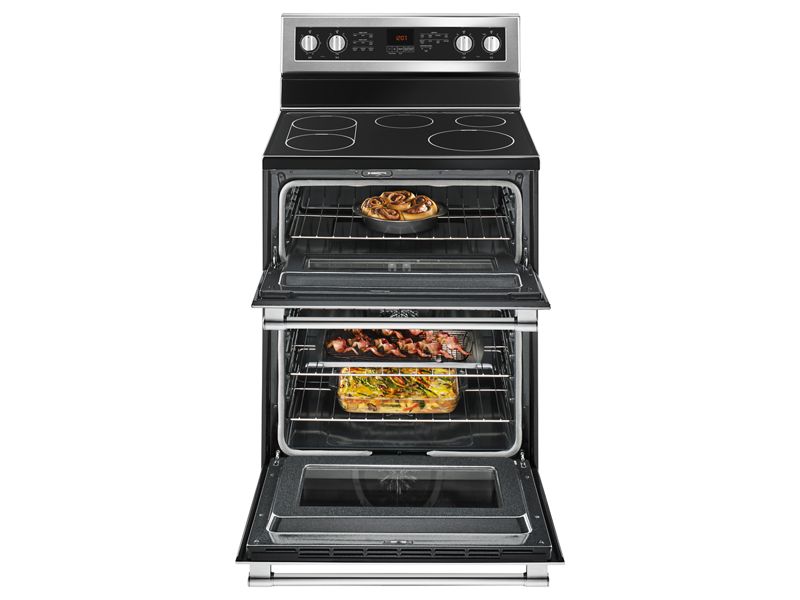

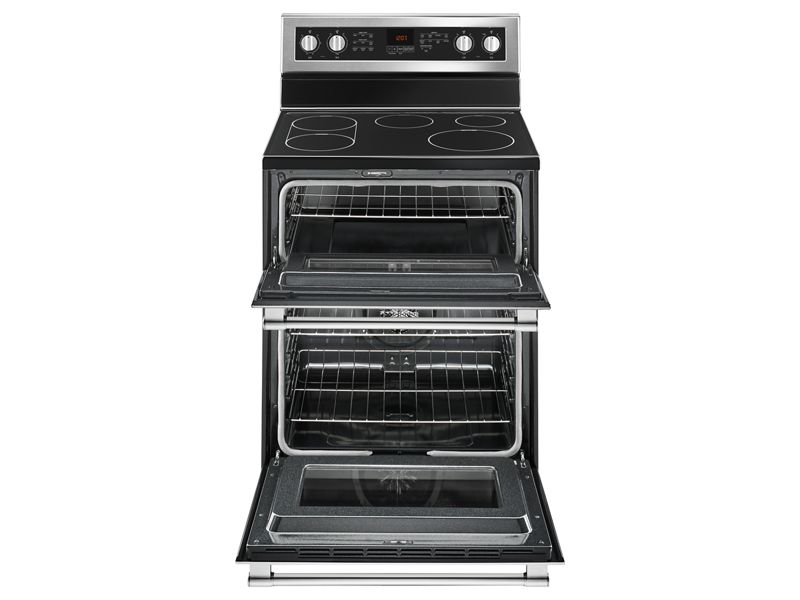

Double Oven Range : Start the feast on time, every time and cook multiple dishes at different temperatures with two ovens in one.
10-Year Limited Parts Warranty1 : With a 10-year limited parts warranty1 on the glass cooktop, elements and cavity, we built these ranges tough enough to keep cooking for years.
Designed, Engineered, and Assembled in the U.S.A. : Maytag® ranges are designed, engineered and assembled in the U.S.A.
Configuration and Overview | |
---|---|
Fuel Type | Electric |
Oven Features | |
Number of Rack Guides | 2 Upper-5 Lower |
Number of Oven Racks | 1 Upper-2 Lower |
Convection Cooking Technology | Thermal Upper-Convection Lower |
Convection Cooking Technology | Bake Lower, Broil Lower, Roast Lower |
Convection Cooking Technology | True Lower Oven |
Broiler Location | Top of Oven |
Broiler Element Power | 3600W |
Hidden Bake Element | Yes |
Self-Cleaning | Self-Cleaning |
Light Type | Incandescent |
Hot Surface Indicator Light | Yes |
Heating Element On Indicator Light | Yes |
Number of Oven Lights | 1 |
Cooktop Features | |
Right Rear Element-Burner Size | 6" |
Right Rear Element-Burner Type | Radiant |
Right Rear Element-Burner Power | 1200W |
Right Front Element-Burner Power | 3200W |
Right Front Element-Burner Size | 10" |
Right Front Element-Burner Type | Radiant |
Left Rear Element-Burner Type | Bridge |
Left Rear Element-Burner Size | 8" |
Configuration and Overview | |

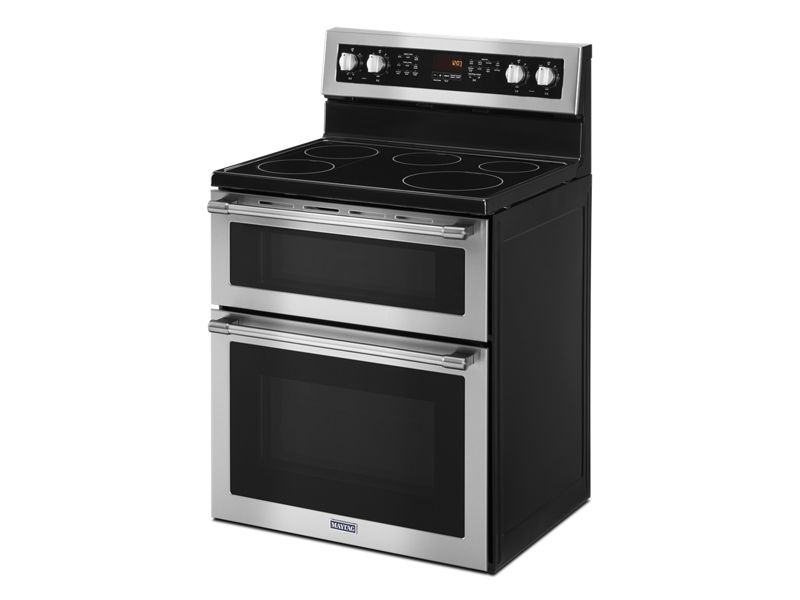

Range Type | Freestanding Double Oven |
Size | 30 |
ADA Compliant | No |
Cooktop Features | |

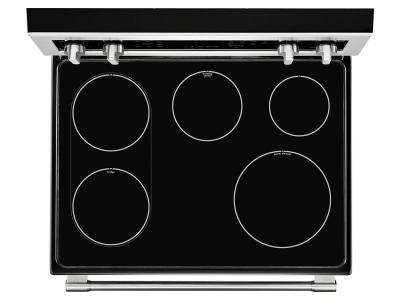

Cooktop Element Style | Smoothtop |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Number of Burner | 5 |
Center Rear Element-Burner Power | 100W |
Center Rear Element-Burner Size | 6" |
Center Rear Element-Burner Type | Warming |
Left Front Element-Burner Power | 1800W |
Left Front Element-Burner Size | 8" |
Left Front Element-Burner Type | Bridge |
Left Rear Element-Burner Power | 1800W |
CONTROLS | |
UL | UL |
ADA Compliant | No |

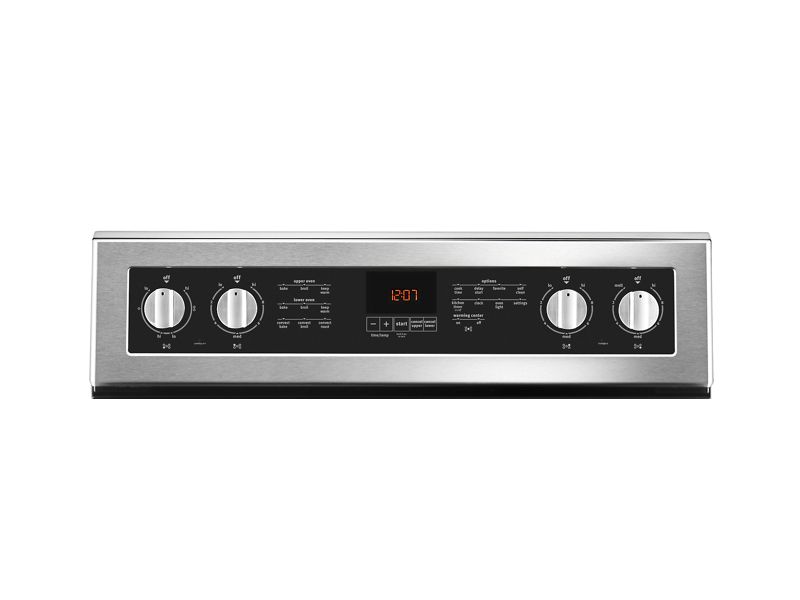

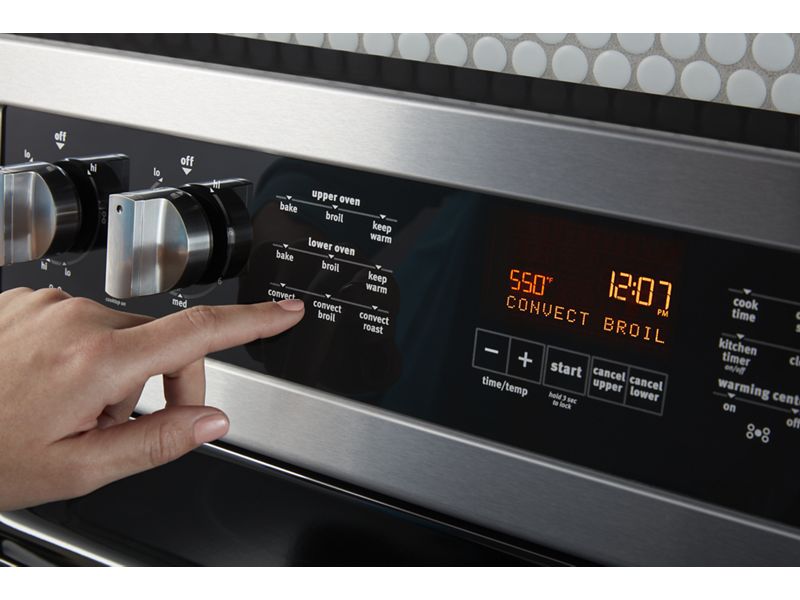

Selections | Audible Signal, Bake, Broil, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Favorites, Sabbath Mode, Timer, Warm Hold |
Handle Type | Reach-Through Handle |
Handle Material | Stainless Steel |
Drawer Type | None |
Oven Features | |
Oven Rack Type | Standard |
