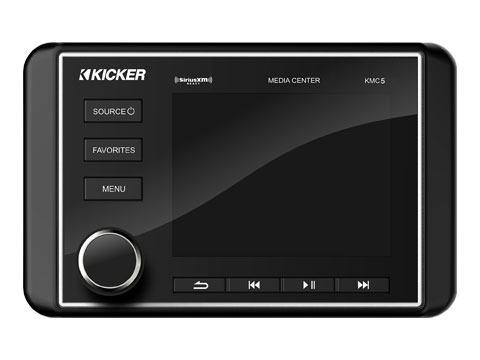

Tons more fun for your cruise! KICKER’s premier KMC5 Media Center features six channels of built-in power, delivering up to 240 watts to your speakers! Equipped with an AM/FM/satellite/weather-band tuner, charging USB connection and four sets of RCA outputs for easy expansion.
The Party Starts Here
Your KMC5 comes with a sunlight-viewable full color 3.5-inch LCD screen, rotary encoder and 240 watts of peak power into six channels. Add even more bump to your boat by adding amplifiers to the front, rear, subwoofer and zone-2 RCA outputs.
Video Input
Exclusive to the KMC5, the included video input can be configured in a variety of ways. Monitor your rider at the end of the rope, use it as a backup camera, even use it as a video baby monitor! The video input can be toggled with either a trigger wire or a button push.
Connect to Your Music
- Charging USB w/Thumb-Drive Playback
- Bluetooth Connectivity
- Full-Color LCD Display
- Ability to control Zone 2
- SiriusXM ready
- 3” Hole Cutout
- Dedicated Zone 2 speaker outputs
- NMEA Port
- Video RCA Input with Remote trigger wire
- AM/FM and Weather-band Tuner
- Up to 16 Favorites for each source: AM, FM and SiriusXM
- Front, Rear, Subwoofer and Zone-2 RCA Outputs
- AUX RCA Input
- Day/Night Mode
- Low Battery alert
- Loudness control
- Customizable EQ with Five Presets
- Voltage Display
| Specifications | |
|---|---|
| Power Output @ 14.4V, 4Ω stereo, <10% THD+N | 25x6 |
| Power Output @ 14.4V, 2Ω stereo, <10% THD+N | 40 x 6 |
| Frequency Response [Hz] | 20 - 20k |
| Signal-to-Noise Ratio [dB] | 108 |
| RCA Outputs | Pre-amp Outputs:FrontRearSubwooferZone2 |
| Line-Out Level [V] | 4 |
| Outer Trim Ring Dimensions [in, cm] | 3.5 x 5.5, 8.89 x 13.97 |
| Protrusion From Mounting Surface [in, cm] | 1-5/16, 3.33 |
| Mounting Depth [in, cm] | 5, 12.7 |
| Mounting Hole Diameter [in, cm] | 3, 7.62 |
| Mounting Panel Thickness Range [in, cm] | Any |
| IP Rating | IP66 |
| AUX Input Sensitivity | Adjustable from 500mV-1.5V |
| USBPlayback, Charging, Compatible File System | MP2, MP3, WMA, WAV16, FLAC, AAC, ALAC, M4ADC 5V, 1 AmpFAT32 |
| BT Range (feet) | 30 |
| Warranty | When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. |
