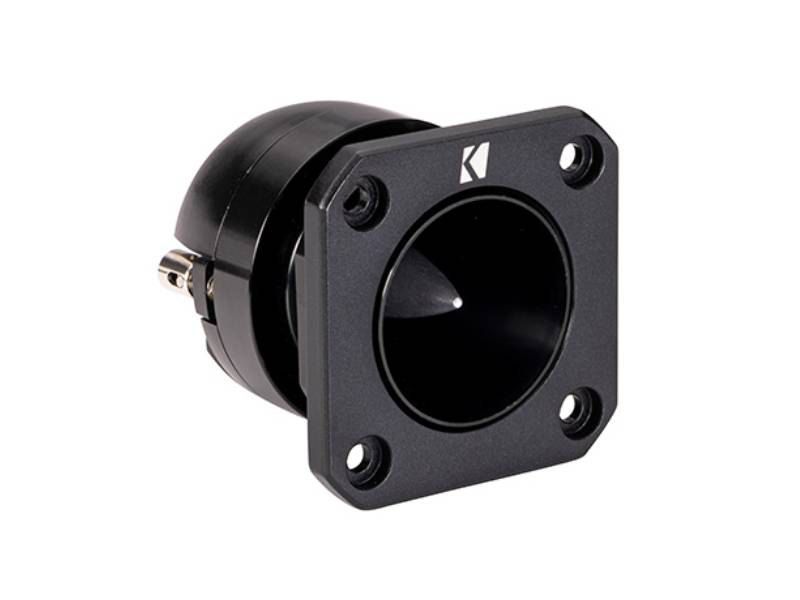

Kicker 1 Inch 4 Ohm ST-Series Bullet Tweeter - 49ST3TW
49ST3TW
Literature
ST-Series street/PA (Pro Audio)-style bullet tweeter.*sold individually, not in pairs.
PA (Pro Audio)-Style, High Output
- Extremely efficient, horn-loaded aluminum diaphragm for extreme output
- Single-unit, PA (Pro Audio)-style tweeter perfect for competition-level SPL systems
- Voiced for clear vocals to match with high-output bass
- Includes front or rear mount options, in addition to trim bezel options
- Spring-loaded terminals accept 16 AWG wire
- In-line 6dB crossover
- Field-replaceable voice-coil assembly available (ST3RK/ST4RK)
| Specifications | |
|---|---|
| SingleTweeter [in, mm] | 1, 25 |
| Dome Material | aluminum |
| Design | bullet |
| Impedance [Ohms] | 4 |
| Recommended Amp Power [watts RMS] | 15-50 |
| Peak Power Handling [watts] | 100 |
| Frequency Response [Hz] | 3.5k-20k |
| Sensitivity [1W, 1m] | 106 |
| In-Line Crossover [dB] | 6, high-pass |
| Mounting Depth [in, mm] | 1-3/16, 30 |
| Mounting Diameter [in, mm] | 2-5/16, 58 |
| Thread Length [in, mm] | 1-1/16, 27 |
| Thread Diameter [in, mm] | 1-11/16, 43 |
| What's in the box? | 1 - Tweeter 1 - Round Mounting Flange 1 - Backing Nut 1 - Square Mounting Flange 4 - Mounting Screws 1 - Capacitor 1 - Resistor |
| Warranty | When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. |
