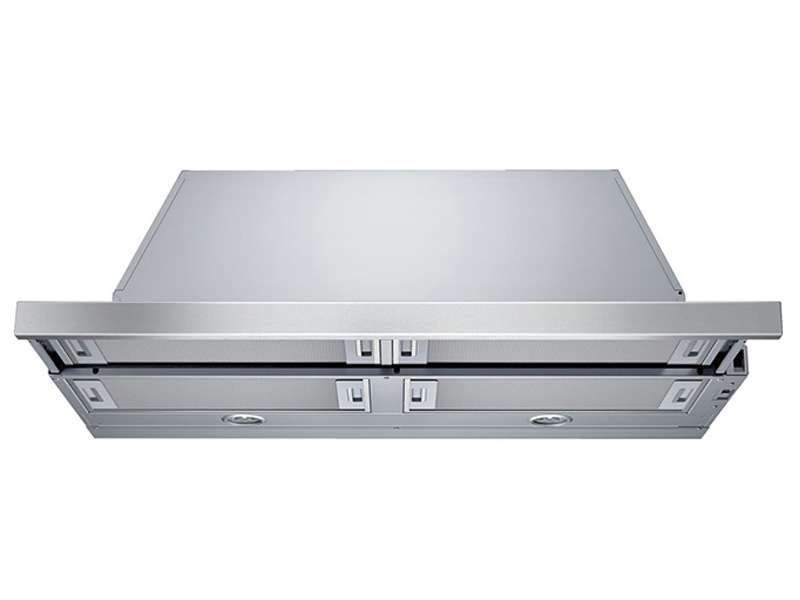

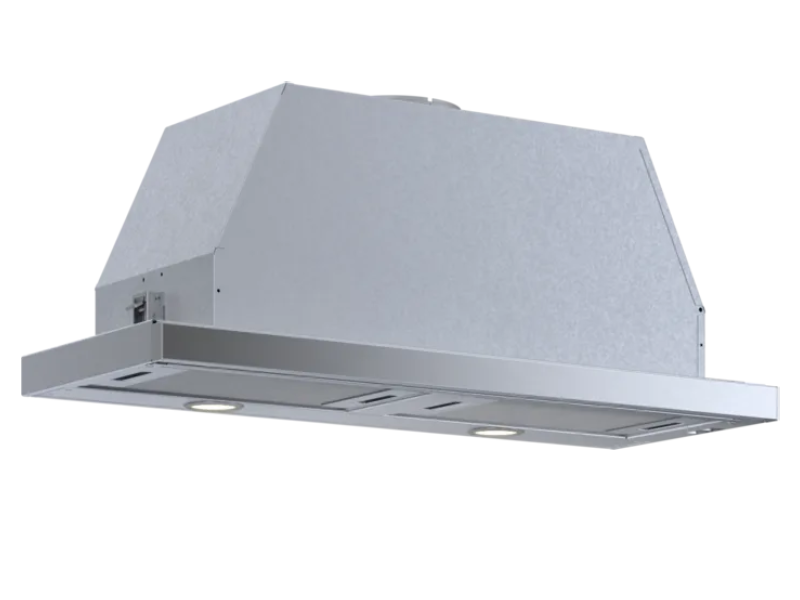

This sleek, 36" integrated pull-out hood allows you to close the hood when not in use, providing a flush-look with cabinetry
- Front stainless steel panel is replaceable with custom cabintery panel
- 500 CFM integrated blower included & recirculation kit available for sale
- 3 speed slider control & 2 halogen lights
- Absorbs odors with Charcoal Replacement Filters (Available for sale)
- For local Make-Up Air requirements, CFM reducer kit can be purchased
Design
- The Pull-Out Hood Visor Fully Extends During Use, and Neatly Tucks Away When not Needed
- Front Stainless Steel Visor Panel can be Replaced with the User's Own Custom Strip to Match Surrounding Cabinetry (Custom Strip Not Provided)
Performance
- 500 CFM Integrated Blower Included
- Three Speed Slider Control
- 2 Halogen Lights - 120 V, 20 Watt Max., G-4 Base
- 6 inch Round Duct At Discharge
Efficiency
- Absorbs odors with charcoal replacement filters (Separate Purchase Required)
Convenience

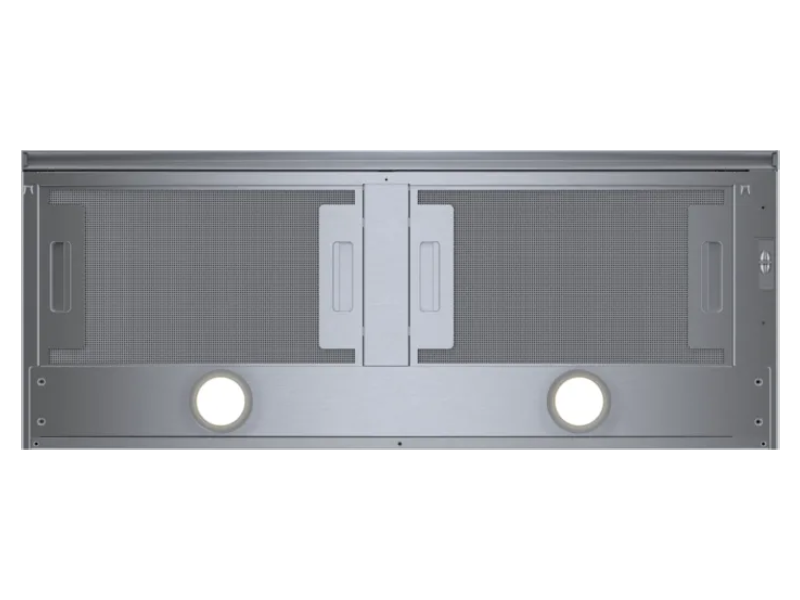

- Aluminum Mesh Filters are dishwasher safe for ease of cleaning
- Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required)
- For areas with Make-Up Air Requirements, our CFM Reducer Kit reduces the CFM to under 300 (Separate Purchase Required)
| General | |
|---|---|
| Depth of the product | 279 mm |
| Installation Type | Built-in |
| Operating Mode | Convertable: Ducted / Recirculating |
| Control Type | Slide switch |
| Certifications | |
| Home Connect | No |
| Construction type | |
| Diameter of air duct (mm) | 150 mm |
| Installation Type | Built-in |
| Number of Motors | 1 |
| Material | Stainless steel |
| Operating Mode | Convertable: Ducted / Recirculating |
| Connection | |
| Watts (W) | 370 W |
| Construction type | |
| Typology | Pull-out |
| Connection | |
| Frequency (Hz) | 60 Hz |
| Power cord length (cm) | 127 cm |
| Total output power of the motors | 330 W |
| Total power of the lamps (W) | 20 W |
| Volts (V) | 120 V |
