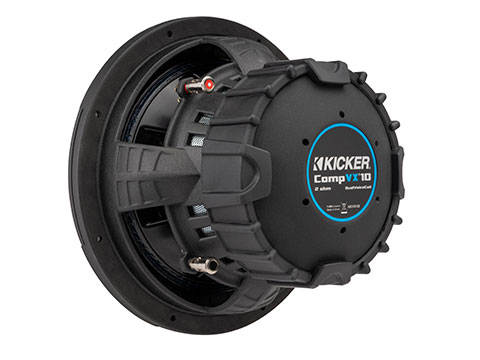

The CompVX's™ basket is cast aluminum with motor-cooling perimeter venting and spring-loaded terminals that can accept up to 10-gauge wire.
10" CompVX 2 Ohm
- Dual Two-Ohm Voice Coils
- Thick Polypropylene Cone
- Signature Double Blue Surround Stitching
- Ribbed Santoprene® Surround
- SoloKon™ Cone Reinforcement
- Oversized Suspension System
- High-Strength Insulated Tinsel Leads
- High Temp Voice Coil
- Perimeter Venting for Thermal Management
- Massive Ceramic Magnet
- UniPlate™ Extended Pole Piece & Backplate For Superior Heat Dissipation
- Cast Aluminum Basket
- Satin Nickel Spring-Loaded Speaker Terminals
| Specifications | |
|---|---|
| Thiele/Small Parameters | 50CVX102 T/S Parameters |
| Size (IN.,CM) | 10, 25 |
| Impedance (OHMS) | 2 DVC |
| Recommended Amplifier Power (watts RMS) | 600 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 1200 |
| Sensitivity (dB 1w/1m) | 85.7 |
| Frequency Response (Hz) | 24-500 |
| Mounting Depth (in, cm) | 5-15/16, 15.1 |
| Mounting Cutout (in, cm) | 9-3/16, 23.3 |
| Min Sealed Box Vol (cu. ft, L) | .8, 22.7 |
| Max Sealed Box Vol (cu. ft, L) | 3.0, 85.0 |
| Min Vented Box Vol (cu. ft, L) | 1.25, 35.4 |
| Max Vented Box Vol (cu. ft, L) | 1.75, 49.6 |
| What's in the box? | one 10-inch subwoofer, one owner's manual, two stickers |
| Warranty | When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. |
