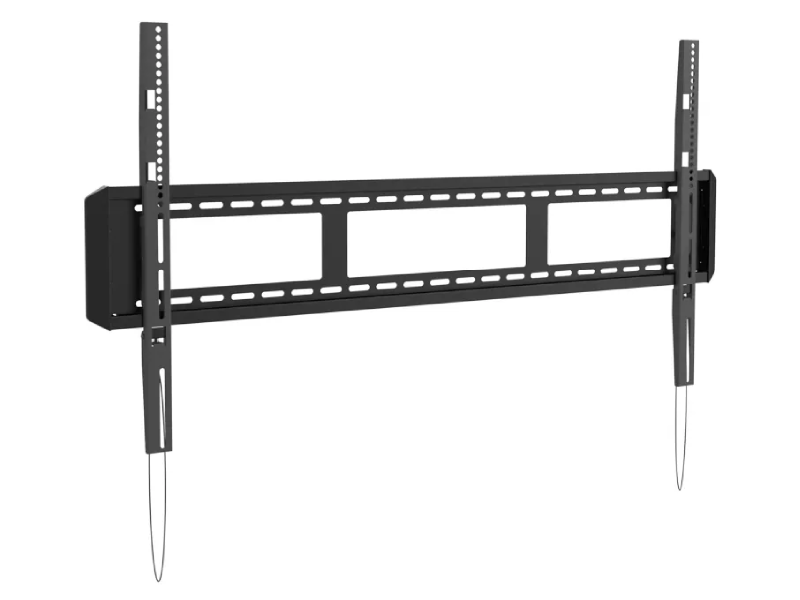

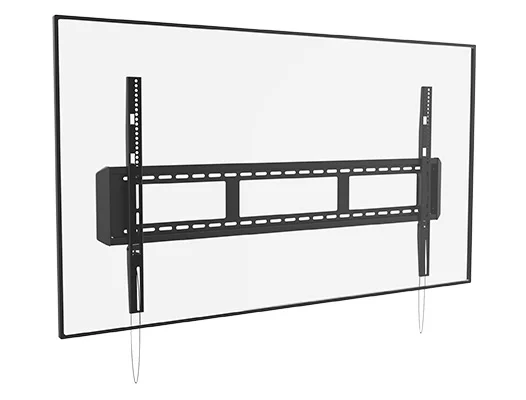

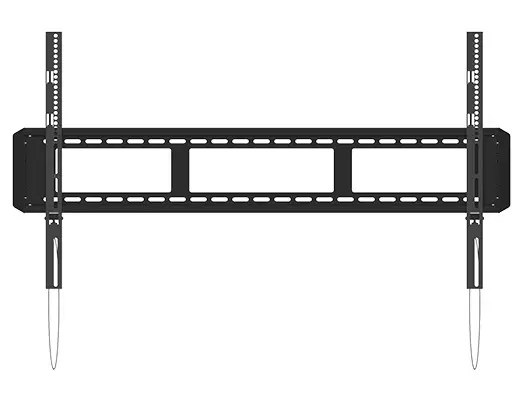

F6080 allows you to securely mount the largest TV panels available, supporting up to 200 lbs and accommodating a generous 1100×600 VESA. With just 1.1″ between the wall and the back of the TV, you can achieve a sleek, low-profile look even with the heaviest TVs. The F6080 features horizontal leveling screws for precise TV positioning and an extra-wide wall plate for optimal TV placement. Quick-release TV brackets make servicing your TV easy and convenient.
Supports 1100x600 VESA Patterns
The F6080 is compatible with a range of VESA patterns from 100×100 up to 1100×600, to support nearly all 55″ – 120″ TVs.
Sturdy Construction
The solid steel construction ensures F6080 can easily handle screens weighing up to 200 lbs.
Low Profile
F6080 features an impressive profile of 1.1” for a sleek and professional look with modern TVs.
F6080 features an impressive profile of 1.1” for a sleek and professional look with modern TVs.

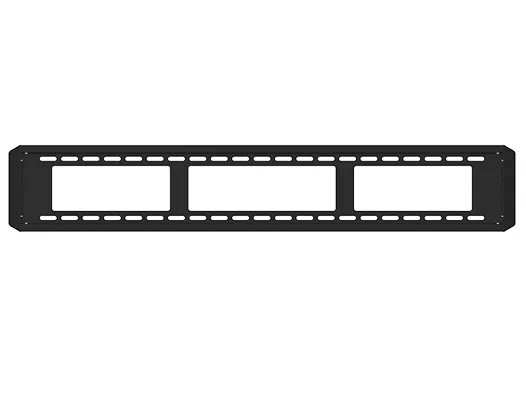

Perfect Placement
The extra-wide wall plate spans two or three studs, allowing you to position your TV anywhere on the wall, regardless of stud spacing.

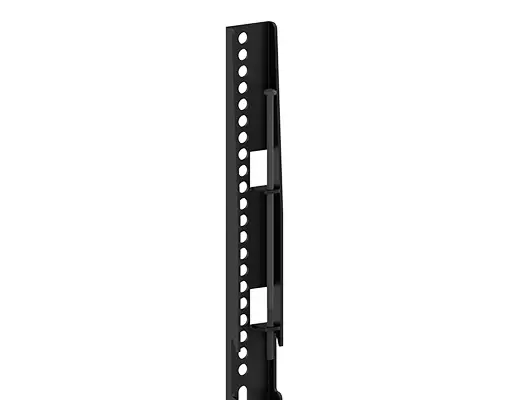

Quick Lock Mechanism
Spring-loaded TV brackets click into place and feature quick-release cords, making it easy to detach the TV for servicing when needed.

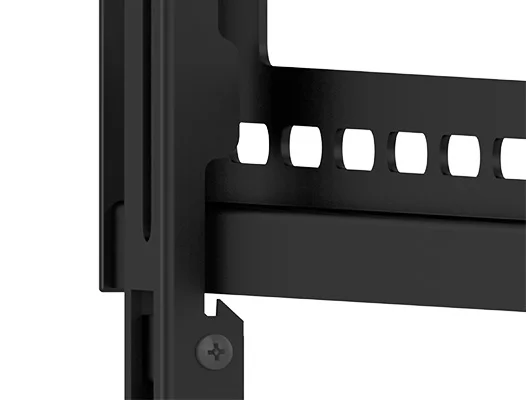

Horizontal Leveling Screws
Extra tall adjustment screws enable you to reach over large, installed panels and adjust horizontal leveling with a screwdriver or socket.

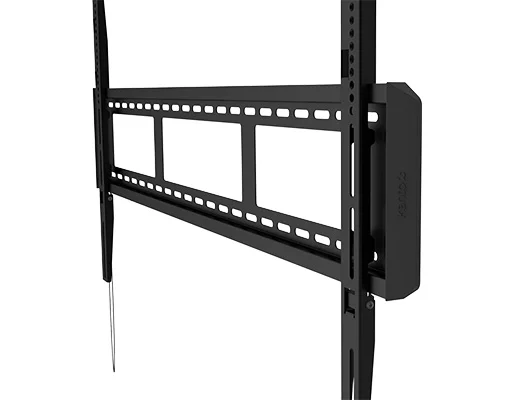

Attractive End Caps
Now you can have style and function with smooth, polished end caps that cover the ends of your mount and give you a clean, modern look.
| Specifications | |
|---|---|
| TV Sizes: | 55” to 120” |
| General Features | |
| Weight Allowance: | 200 lb (91 kg) |
| VESA Sizes: | 100×100 to 1100×600 |
| Wall Plate: | 47.6” (121 cm); Accommodates |
| Specification | three studs with up to 16″ spacing, or offsetting on 24” stud centers |
| MEASUREMENTS | |
| Shipping box weight: | 15.4 lb (7.0 kg) |
| Shipping box dimensions: | 47” x 9.6” x 3.7” / (119.5 x 24.5 x 9.5 cm) |
| Product weight: | 13.9 lb (6.3 kg) |
| General Features | |
| UPC: | 800152712345 |
| What’s Included | Installation ManualAll mounting hardware for wood stud and concrete installation |
| Year Warranty | 5 |
