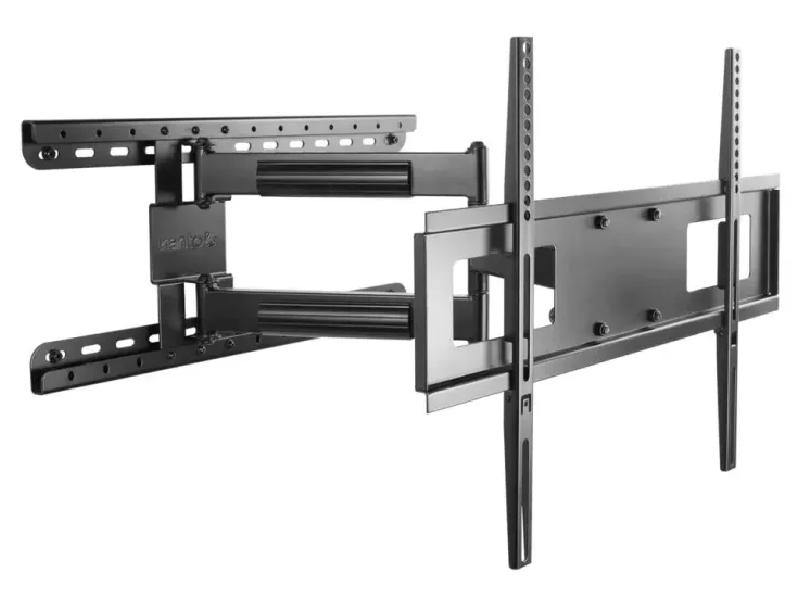

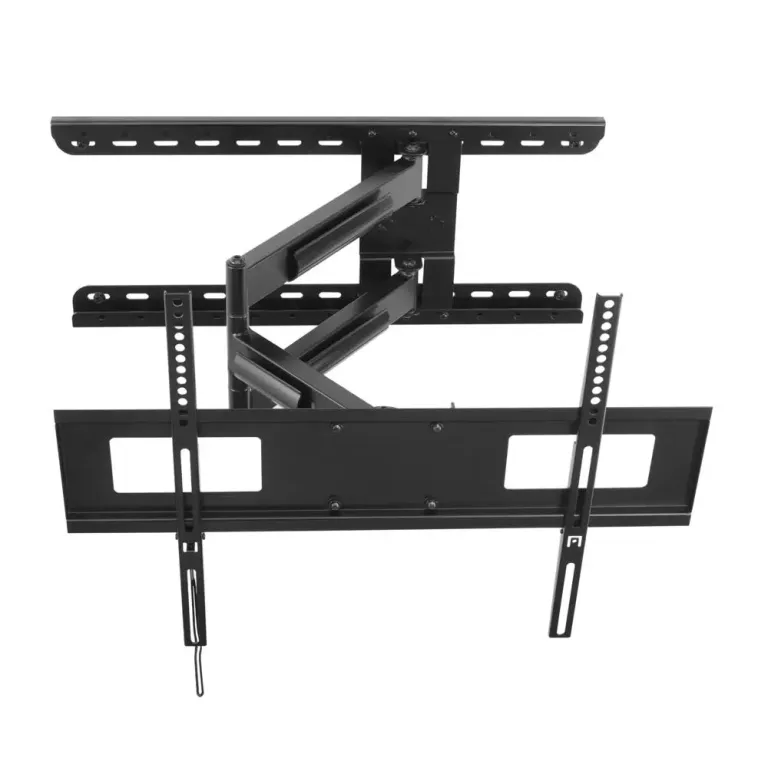

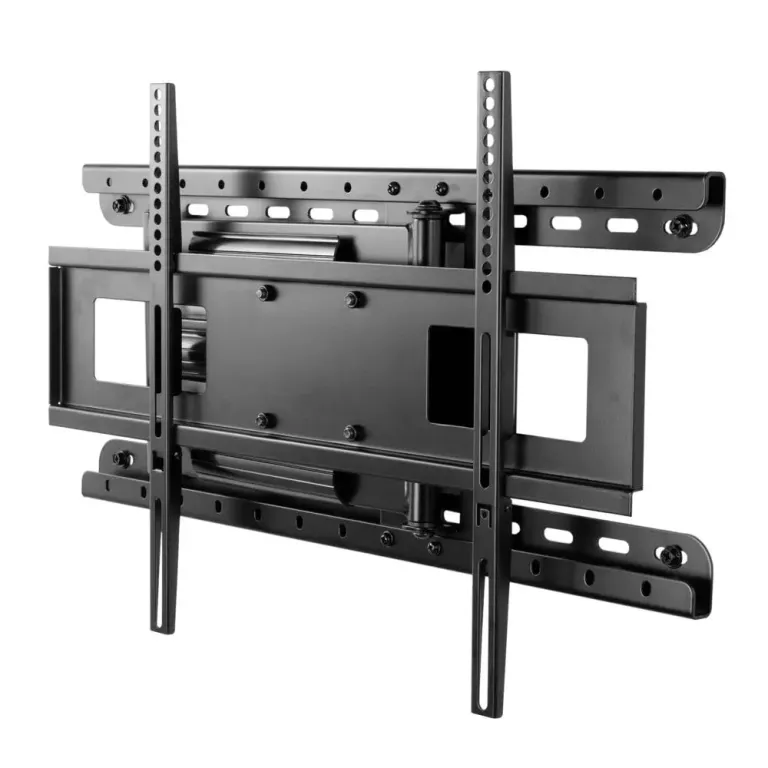

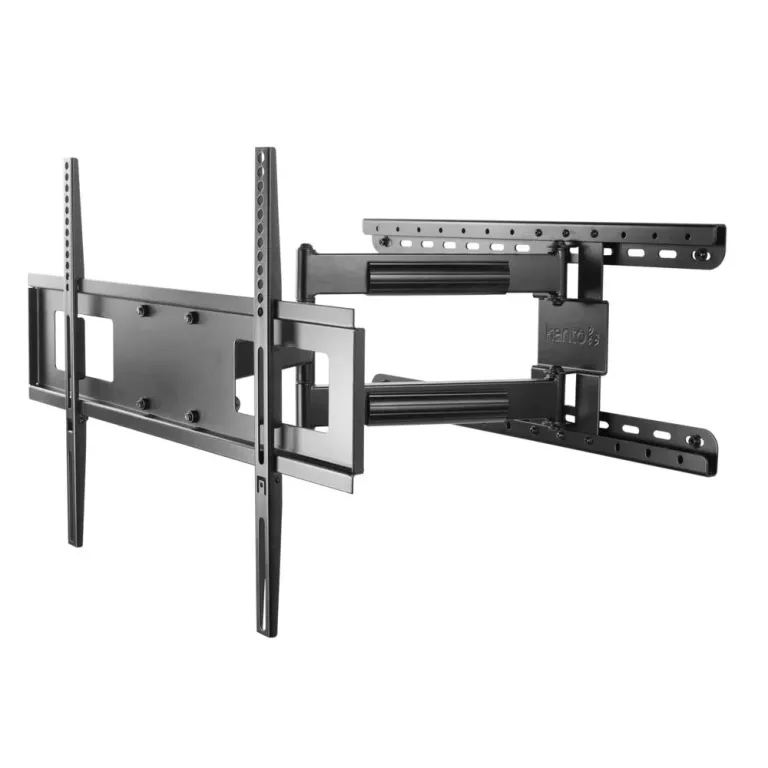

A great fit for both home and commercial installations, the Kanto FMC4 is a full motion TV mount that offers incredible versatility for your wall-mounting needs. The adjustable pivot point lets you center your TV perfectly, or move it to either extreme if you need to wrap it around a corner or accommodate off-center studs. Heavy duty solid steel construction means this mount supports up to 100 pounds – plenty of strength for today’s bigger TVs. With almost limitless swivel capability and 26” of extension, this unique TV mount can meet almost any mounting challenge.
A great fit for both home and commercial installations, the FMC4 offers incredible versatility for your wall-mounting needs.
Fits VESA Sizes to 600×400
The Kanto FMC4 accommodates a range of VESA sizes from 100×100 all the way to 600×400.
Supports 100 Pounds
Confidently mount a TV weighing up to 100 pounds. Even at full extension, your commercial TV mount stays in place with no sag.
Extends Up to 26 Inches
At the commercial TV mount’s maximum extension, your TV will sit 26″ from the wall.
Adjustable Pivot Point
The Kanto FMC4 sliding TV wall mount features a sliding pivot point that can be moved 20” to the left or right. With this function, you can move the entire arm and TV plate laterally across the wall plate for a wide range of viewing options.
Swivels 135 Degrees in Either Direction
Depending on the size of your TV and the amount of extension, the Kanto FMC4 sliding TV wall mount can swivel 135° in either direction, depending on screen size. With the horizontal TV mount’s range of motion, your TV can be seen from almost every part of the room, or from a different room altogether!
15 Degrees of Tilt
The sliding TV wall mount’s ability to tilt 5° backward is useful for lower installations. For higher mount installations, tilting the sliding TV wall mount 10° forward allows you to find the perfect viewing position. To keep the angle of your TV constant, use the included Allen key to tighten the tilt tension on the two hex bolts located on the tilt head.

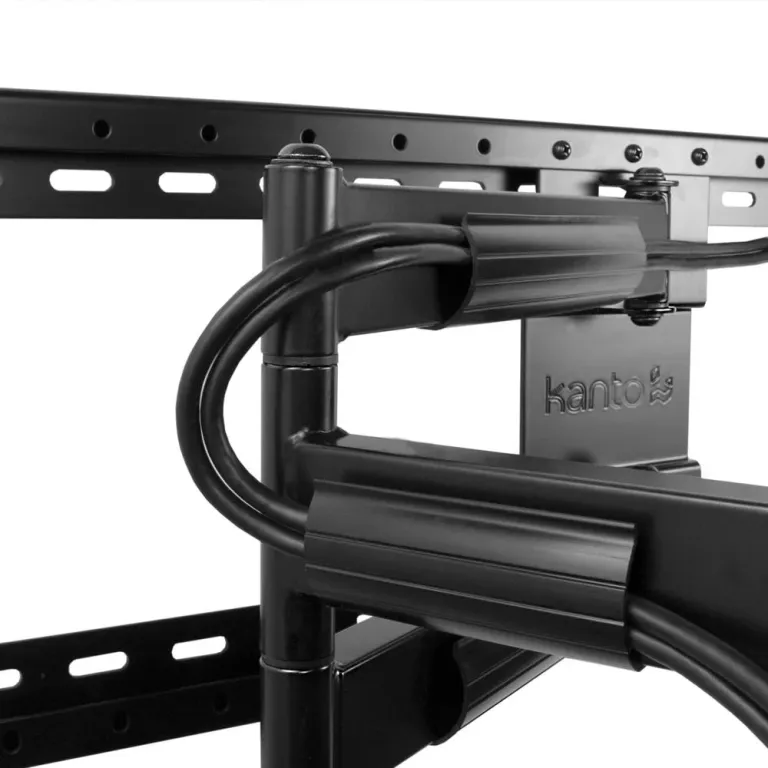

Sleek Cable Management
An integrated cable management system allows you to route your power and video cables neatly between the TV and the wall. Keep your cables tidy and out of sight for a clean, organized look.
Simple Leveling
Sometimes heavier TVs will twist slightly, especially if you shift your TV off-center on the TV plate. With a simple adjustment, level your commercial TV mount horizontally for a perfect alignment.
| Specifications | |
|---|---|
| TV Sizes: | 30” to 60” |
| Weight Allowance: | 100 lb (45 kg) |
| VESA Sizes: | 100×100 to 600×400 |
| Wall Plate: | 26.8″ (68 cm); Accommodates dual studs with up to 24″ spacing |
| Extension: | 26” (66 cm) from the wall |
| Shipping box weight: | 25.4 lb (11.5 kg) |
| Shipping box dimensions: | 28.5” x 12.8” x 3.9” (72.5 x 32.5 x 10 cm) |
| Product weight: | 21.6 lb (9.8 kg) |
| UPC: | 800152712239 |
| What’s Included | Paper wall template for marking pilot holesInstallation manualAll mounting hardware for wood stud and concrete installation |
| Tilt | +10° to -5° |
| Swivel | 135° |
| Extension | 3.1" - 26" |
| Year Warranty | 5 |
