Features
Get better cleaning results with CleanBoost technology
Our patented CleanBoost Technology premixes water and detergent, dissolving detergent 6x faster helping to remove hard-to-clean and baked-on foods. 1
Sanitize Option
Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option. 2
Enhanced drying results with MaxBoost Dry
MaxBoost Dry technology uses heat and a fan to direct moisture out and pull in fresh air that dries your dishes.
Saves over 4000 gallons of water every year
By avoiding hand washing and putting your dishes straight in the dishwasher, not only will you get great cleaning results, you can save over 4000 gallons of water per year. 3
DishSense Sensor Technology
Skip pre-rinsing with our DishSense sensor technology that adjusts cleaning performance based on the soil level of your dishes.
Cleans Hard-to-Reach Spots
Clean hard-to-reach spots with our Target Spray Zones that target tough spots for the ultimate clean.
Complete clean from every angle with OrbitClean
OrbitClean wash system uses a rotating wash arm with multi-directional spray patterns to provide maximum coverage without using more water.
Powerful clean in 30 minutes
Powerful 30-Minute Clean Get a powerful clean, fast in just 30 minutes.
ENERGY STAR Certified
Maximize your water, energy and dollar savings with ENERGY STAR Certified appliances.
Keep your kitchen quiet with 47 dBA
Keep your kitchen quiet and the noise inside your dishwasher where it belongs with extra, quality insulation.
Premium Capacitive Touch User Interface
Our sleek designed capacitive multi-touch user interface is intuitive and helps you to easily select the right program for your dishes.

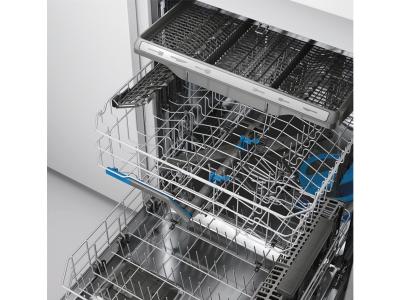

Third Level Rack
Save time loading and unloading with a third level rack that easily fits silverware, cooking utensils and tools.
Easily fits dishes of all sizes with adjustable racks
Make loading the dishwasher easier with an adjustable rack and enough space to fit large items.
Convenient status indicator floor light
Convenient LED floor light shows cycle status- blue when your dishes are washing and white when they are clean.
Smudge-Proof Stainless Steel
Resists fingerprints and cleans easily.
Protecting your floors against water leaks
In the event of a leak a sensor is triggered stopping the cycle and containing overflowed water in a tray at the bottom of the dishwasher.
Dimensions and Volume | |
---|---|
Maximum Height | 35 3/4 |
Width | 24 |
Depth | 24 1/4 |
Depth With Door Open | 50 1/4 |
ELECTRICAL SPECIFICATIONS | |
Amps @ 120 Volts | 15 Amps |
Voltage Rating | 120 V |
Installation | |
Connection Location | Right Bottom |
Number of Leveling Legs | 3 |
Water Inlet Location | Left Bottom Front |
Certifications and Approvals | |
ADA Compliant | No |
CEE Tier | Tier 1 |
Energy Star | Yes |
UL Listed | Yes |
cUL Listed | Yes |
ETL Listed | Yes |
Meets ASSE 1006 Requirements | Yes |
NSF Certified | Yes |
Dimensions and Volume | |
Minimum Height | 33 3/4 |
Exterior | |
Exterior Finish | Smudge-Proof Stainless Steel |
Door Type | StayPut |
Door Latch | Pull |
Door and Handle Design | Wide Pocket |
CONTROLS | |
Rinse Aid Indicator | Yes |
Control Lock | Yes |
Delay Start Hours | 1-12 Hours |
Digital Display | Yes |
Control Location | Top |
Control Color | Black |
General Specifications | |
Warranty - Parts | 1 Year |
Warranty - Labor | 1 Year |
Prop 65 Label | No |
Product Weight | 85 lbs |
Annual Energy | 240 kWh |
Sound Level | 47 dBA |
Third Level Rack | |
Rack Handles | No |
Rack Coating | Nylon |
Third Level Rack | Yes |
UPPER RACK | |
Targeted Wash Zone | Yes |
Stemware Holder | Yes |
Rack Type | Adjustable |
Rack Handles | No |
Rack Coating | Nylon |
Maximum Height Clearance | 10 3/8 |
Minimum Height Clearance | 8 1/2 |
Fold-Down | Yes |
Cup Shelf | Yes |
LOWER RACK | |
Rack Type | Adjustable |
Rack Coating | Nylon |
Number of Silverware Basket Lids | 2 |
Number of Silverware Basket | 1 |
Minimum Height Clearance | 11 1/4 |
Maximum Height Clearance | 13 1/4 |
Fold-Down | Yes |
Dishwasher Options | |
Start/Cancel | Yes |
High Temperature | No |
Heated Dry | Yes |
Drying System | Even Dry |
Dry - Max | Yes |
Dry - Heat | Yes |
Dry - Air | Yes |
Air Dry | Yes |
Dishwasher Cycles | |
Sanitize | Yes |
Rinse Only | Yes |
Quick | Yes |
Number of Cycles | 7 |
Normal | Yes |
Heavy | Yes |
Favorite | Yes |
Energy Saver | Yes |
China Crystal | No |
DISHWASHER | |
Tub Material | Stainless Steel |
Wash Levels | 5 |
Wash System | Direct Feed |
Tub Design | Tall Tub |
Colour | Stainless Steel |
Status Indicator Floor Beam | Yes |
Upper Spray Arm | Spray Arm |
Middle Spray Arm | Bi-Beam |
Lower Spray Arm | Orbit |
Smart Soil Sensor | Yes |
Rinse Aid Dispenser | Yes |
Place Setting Capacity | 14 |
Motor Speeds | Multi-Speed |
Leak Detection System | Yes |
Interior Light | No |
Filtered Water | 100 % |
Hard Food Disposer or Filtration | Yes |
Filter Material | Stainless Steel |
Filter Trap | Removable |
Detergent Dispenser | Yes |
Automatic Temperature Control | No |
