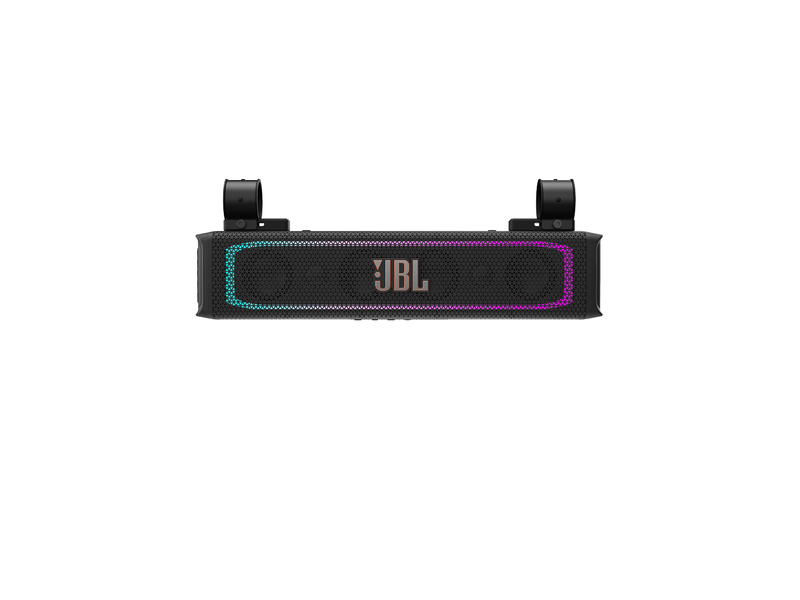

21" Bluetooth® Universal Outdoor Vehicle Soundbar with LED lights and 150Wrms amplifier
Unique Dynamic LED Lights
Lights, color, party! Transform your off-road journey into a rock concert. Pressing the light controls on the bottom panel will Sync your music to dynamic lights patterns
150Wrms Class-D Amplifier Built-in
The 150Wrms (THD <1%) Class- D amplifier ensures powerful, high quality JBL Original Pro Sound when you take the wheel or helm.
IP66 Rated Water and dust Resistant
IP66 rated water resistant protects soundbar speakers from dust ingress and powerful water jets.
Support Broadcast Mode
Broadcast Mode allows RALLYBAR connect to multiple RALLYBAR or RALLYBAR family products (RALLYBAR, RALLYBAR S and RALLYBAR XL), allowing each soundbar to play the same audio source.
Support Party Mode
Party Mode provides simultaneous connection of up to two Bluetooth® devices—while playing music from one device at a time.
JBL Pro Sound
With HI-RESOLUTION Audio on wired audio sources, JBL Original Pro sound tuning, and DSP delivers extraordinary sound performance.
Innovative Mounting Kits Design
The innovative mounting kits design (patent pending), offers multiple position combinations on top and back to accommodate a variety of installation requirements.
Music Remote Control by JBL Click
When user’s smartphone connected to the JBL RALLYBAR and a JBL Click Bluetooth controller (sold separately on JBL Website), you can use the JBL Click to control the music from your smartphone including “play/pause”, “next track”,” volume up/down”.
Support Bluetooth®, USB Disk and 3.5mm Auxiliary Input Audio Source Play
RALLYBAR can detect the audio source automatically according to the source priority definition: USB disk >Bluetooth®> AUX-IN audio source. Higher priority source can break-in Lower priority audio source.
Variable AUX-OUT
3.5mm auxiliary output (2V) can connect with external powered speakers and subwoofers, which can have changes of volume down/volume up/ play or pause according to Soundbar’s adjustment. The Line output is covered by a waterproof connector.
3 Different Gain Settings
RALLYBAR Offers 3 different Gain settings when connected by Aux-in audio:2V, 4V, and 6V.
| What's in the box? | |
|---|---|
| What's in the box? | 1x Soundbar 2x Security cables 1x Small Wrench 1x L-Small Allen wrench 1x T-handle hex wrench 2x Straps with Velcro 1x G-Clamp 1x Keychain 1x 12ft (3.66m) power/ground wire harness 2x Rubber top covers 2x Mount cleats 2x Short M8 screws 2x Short M5 screws 2x Long M5 screws 2x M5 screw nuts 4x Flat washers 2x C-Clamps (2”) 2x C-Clamps (1.75”) 2x Thick rubber strips (for 1.5” pole) 2x Thin rubber strips (for 2” &1.75” pole) 1x Quick start guide 1x Safety sheet &warranty card |
| General Specifications | |
| Cable type | 12AWG |
| Cable length | 12 Feet (3.66m) |
| Signal-to-noise Ratio | > 80 dB |
| Frequency response | 45Hz-40kHz |
| Maximum Current Draw | 25A |
| Quiescent Current Draw | < 0.9A |
| Voltage Range: 9.6 - 16VDC | Yes |
| THD at Rated RMS Power | < 1% |
| Packaging dimensions (W x H x D) | 24" x 9" x 7.6" (611 x 229 x 193mm) |
| Output Power | 150W RMS, 300W PEAK (IEC60268) |
| Transducers | 4x 2.75"(70mm) woofers, 2x 1"(25mm) tweeters, 2x 7.2"(182.8mm), 1x 3"(76.2mm) Racetrack Passive Radiators |
| Bluetooth profile | A2DP V1.3, AVRCP V1.6 |
| Bluetooth Version | 5.3 |
| Bluetooth transmitter frequency range | 2400 MHz – 2483.5 MHz |
| Bluetooth transmitter power | ≤ 15 dBm (EIRP) |
| Aux-In | 2Vrms(0.35Vrms - 2Vrms), 4Vrms(0.7Vrms - 4Vrms), 6Vrms(1.05Vrms - 6Vrms) (3.5 mm connector) |
| Aux-Out | 2 Vrms (3.5 mm connector) |
| Soundbar Dimension (L x W x H) | 21-5/32" x 5" x 4-5/8" (537.5 x 126.7 x 118mm) |
| Soundbar Weight | 11.57 lbs (5.25kg) |
| USB format | FAT16, FAT32 |
| Gross weight | 17.14 lbs (7.79 kg) |
