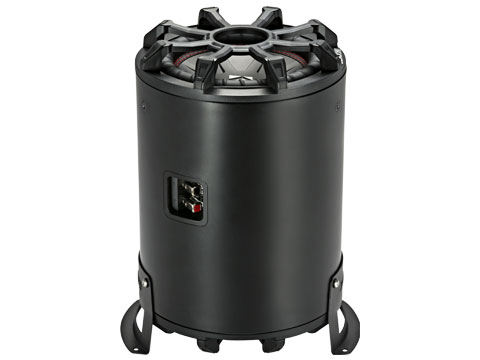

8" Kicker TB Series 2-ohm Loaded Subwoofer Tube Enclosure - 46CWTB82
46CWTB82
Literature
Mount them nearly anywhere - KICKER TB Eight-Inch Tube Speakers are awesome bass-makers that pound!
TUBE POWER
- Two Ohm Speaker
- Thick ABS Tube Construction
- Flexible Horizontal or Vertical Mounting System
- Spring-Loaded Speaker Terminals
- CompR Woofer and Reflex Sub
- Ceramic Magnet
- Advanced Heat Management System
- Signature Double Red Stitching
- Grilles included
| Specifications | |
|---|---|
| Type | Reflex |
| Size (in., cm) | 8, 20 |
| Impedance (ohms) | 2 |
| Recommended Amplifier Power (watts RMS) | 300 |
| Peak Power (watts, per ANSI/CTA-2031-A) | 600 |
| Sensitivity (dB 1w/1m) | 84.4 |
| Tuning Frequency [Hz] | 31 |
| Box Top Depth (in, cm) | - |
| Box Bottom Depth (in, cm) | 12-7/8, 32.8 |
| Box Height (in, cm) | Vert. Mount: 13-7/16, 34.1; Horiz. Mount: 8-5/8, 21.9 |
| Box Width (in, cm) | 8-1/2, 21.6 |
| What's in the Box | 1 - enclosure assembly 2 - vertical mounting brackets 1 - horizontal mount base 1 - Horizontal mount hook(retainer) 1 - Horizontal mount plate(retaining clamp) 7 - stainless steel M5 x 12mm button head screws for horizontal mount plate to base and mounting brackets to enclosure 11 - nylon flat washers (to be used on all mounting fasteners) 4 - stainless steel pan head phillips M4 x 25mm (for mount base to vehicle) 1 - owner’s manual 2 - Kicker stickers |
