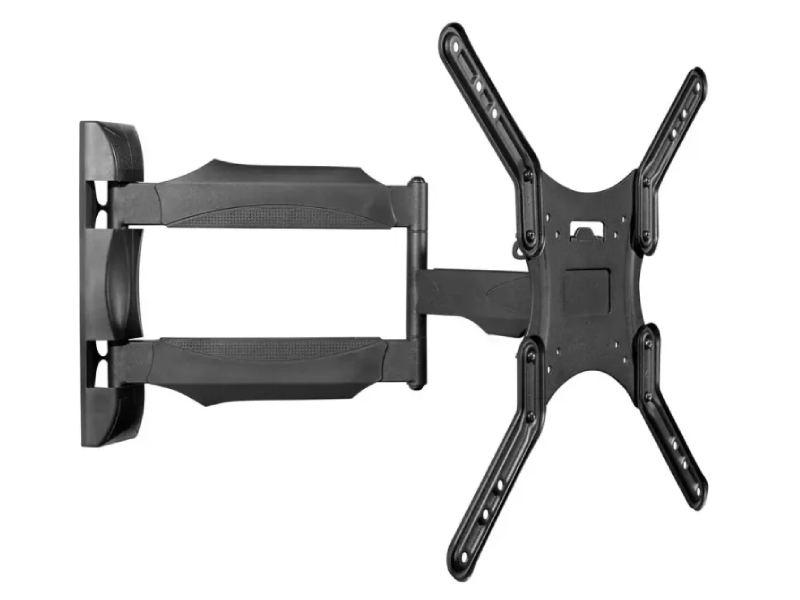

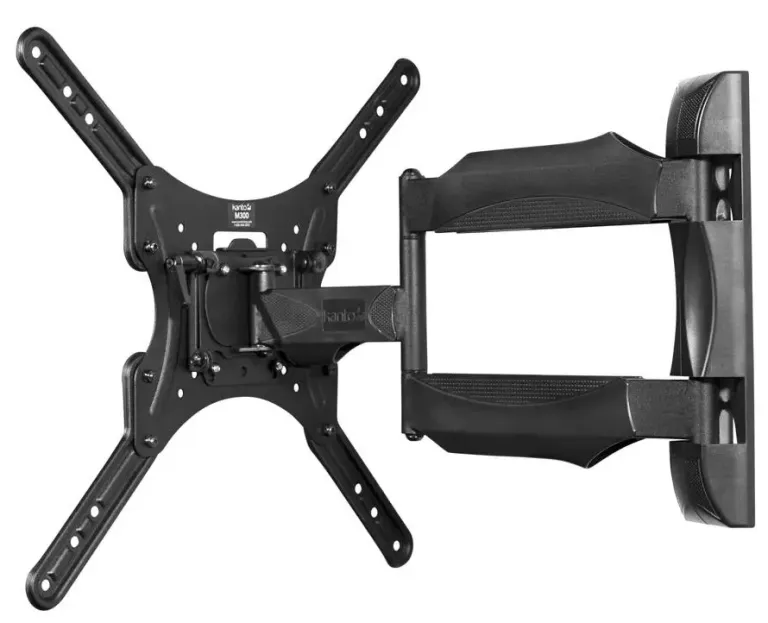

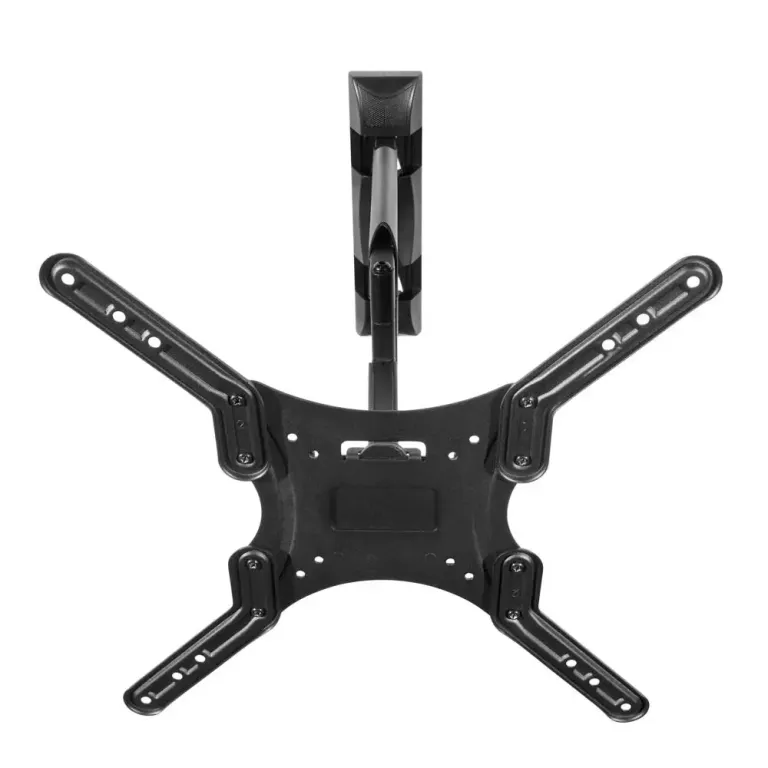

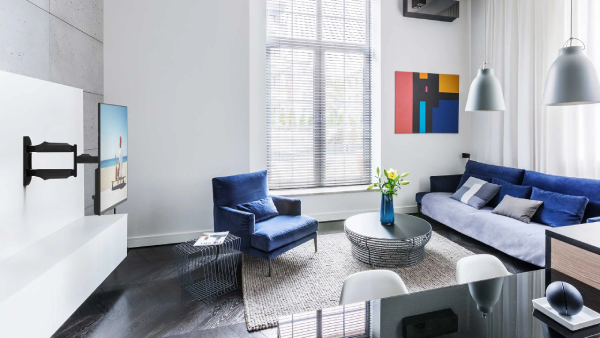

Featuring VESA-complaint TV brackets designed for 26 to 55-inch flat-screen TVs, the M300 Full Motion TV Wall Mount lets you achieve a wide range of viewing angles while taking up minimal wall space. Its articulating extension arm extends up to 19.6″ from the wall and supports up to 80 pounds. Tilt, pan, and swivel adjustments can be made to position your TV to accommodate angled seating or to mount your TV to a column or in a corner. With its powder-coated finish and integrated cable management, the M300 ensures you achieve a clean, professional-looking television setup. Also available in white as M300W.

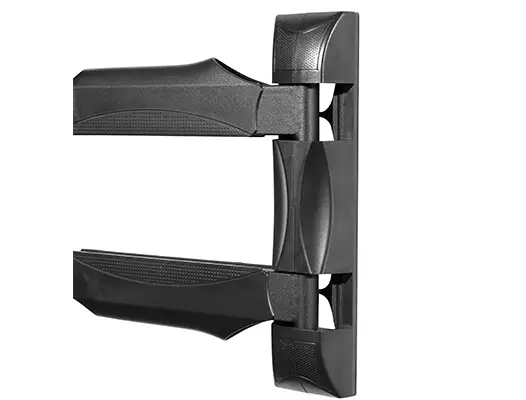

The M300 is a one-stud solution that does it all.

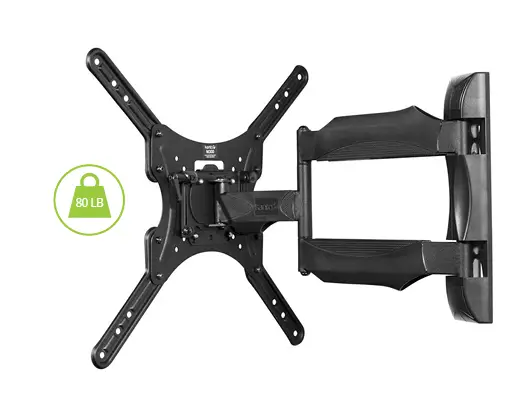

Supports Up to 80 Pounds
Constructed out of solid steel and capable of carrying up to 80 pounds, you can rest assured that your TV is safe and secure with the M300.

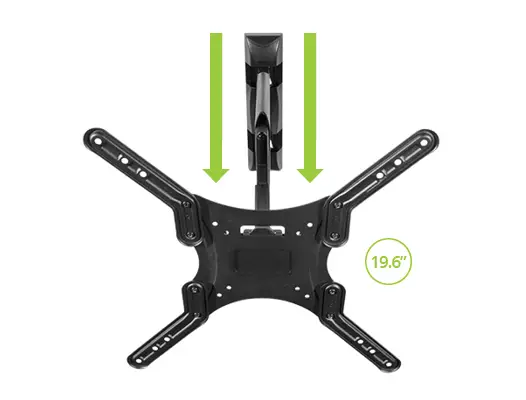

19.6 Inches of Extension
The M300 extends a generous 19.6” from the wall to accommodate a variety of TV viewing positions.

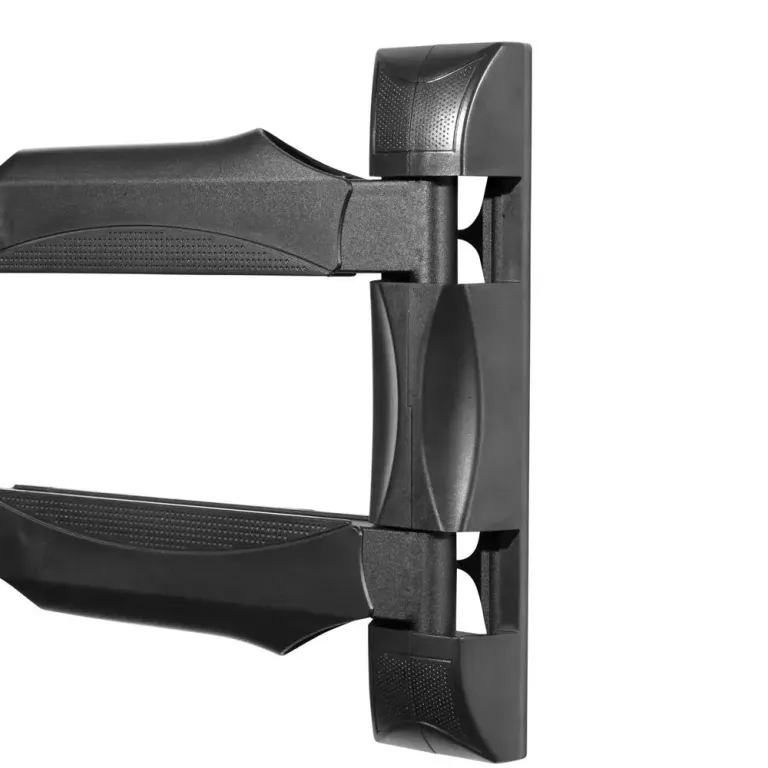

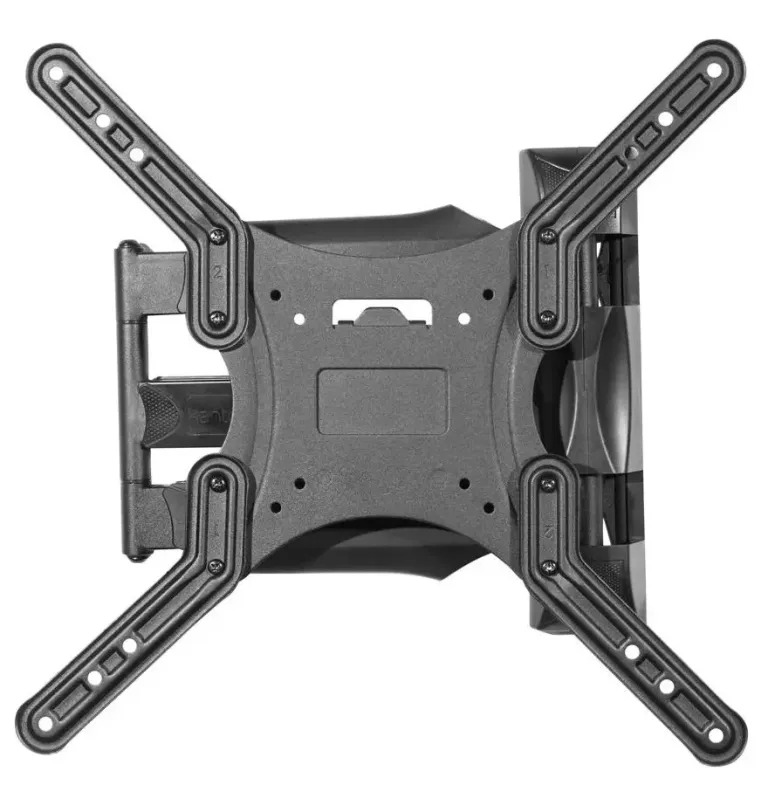

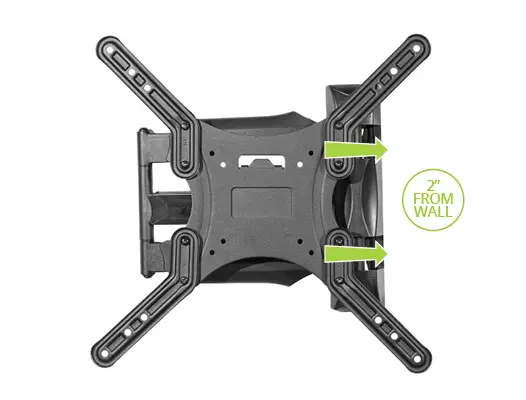

Sits 2″ From the Wall
The low-profile design of the M300 allows you to push your TV back to sit 2″ from the wall. (Note: When fully retracted, the center of your TV will sit 5″ to the left or right of where it is mounted)

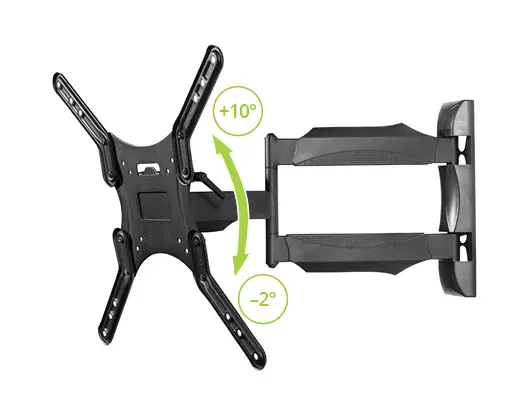

12 Degrees of Tilt
With the use of a simple tightening mechanism, easily adjust the to tilt of your TV 10° forward or 2° backward to suit your viewing needs.

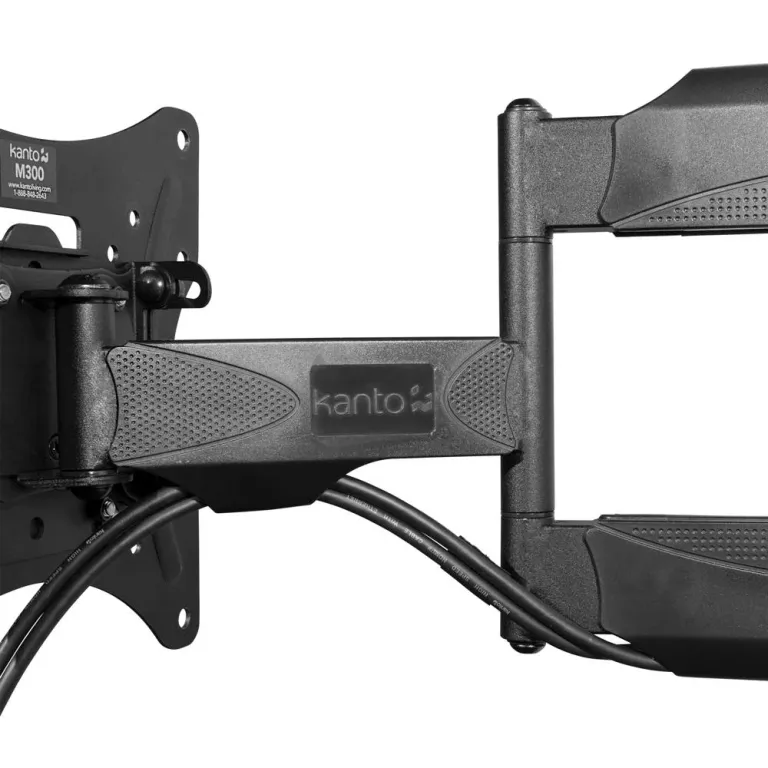

Sleek Cable Management
Built-in cable management tucks your cables out of the way and keeps them neatly and safely organized – out of sight, out of mind.
Clean Finish
The M300 is built with solid steel construction and a durable powder-coated finish. Wall plate covers are also provided to give you a clean, modern look
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto M300 Full Motion TV mount.
| Specifications | |
|---|---|
| TV Sizes: | 26” to 55” |
| Weight Allowance: | 80 lb (36 kg) |
| VESA Sizes: | 100×100, 150×100, 200×100, 200×150, 200×200, 200×300, 200×400, 300×200, 300×300, 400×200, 400×300, 400×400 |
| Profile: | Sits 2″ (5 cm) from the wall |
| Shipping box weight:Black | 11.2 lb (5.1 kg) |
| Shipping box dimensions: | 15.6” x 12.6” x 2.5” / (39.7 x 31.9 x 6.3 cm) |
| Product weight:Black | 10.1 lb (4.6 kg) |
| UPC:Black | 800152712697 |
| What’s Included | Installation ManualWhite cable sleeve (White model only)All mounting hardware for wood stud and concrete installation |
| Tilt | +10° to -2° |
| Swivel | 135° |
| Extension | 2" to 19.6″ |
| Material: | Solid steel with durable powder coated finish |
| Specifications | Single stud wall plateIntegrated cable management system |
