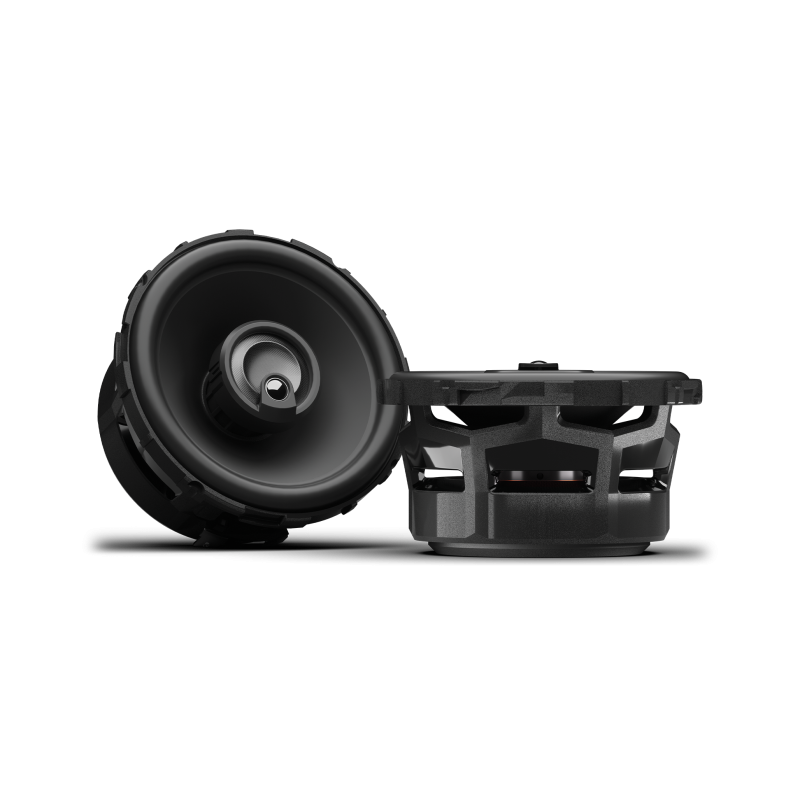

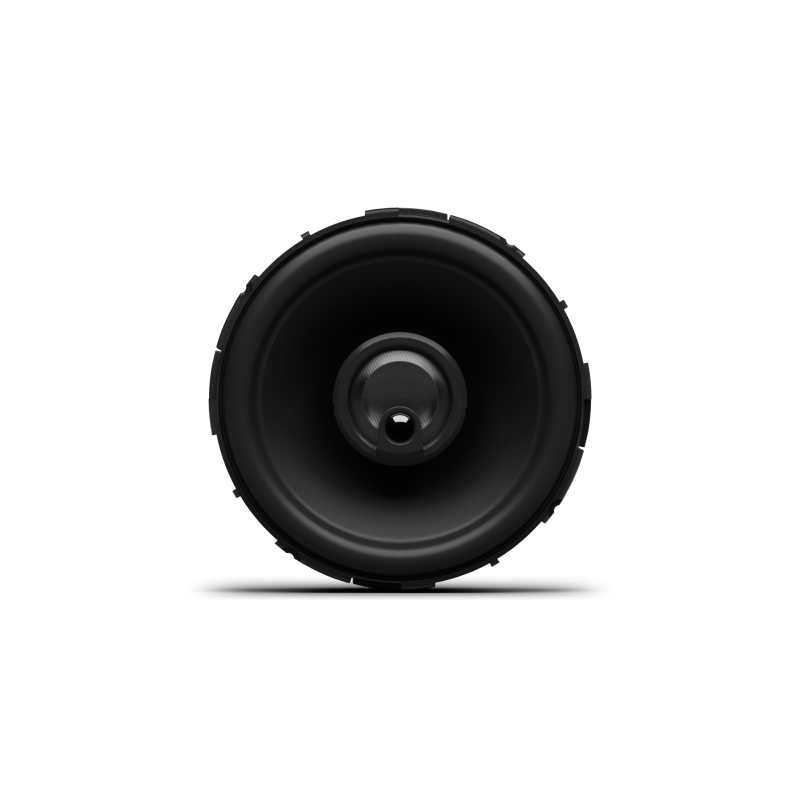

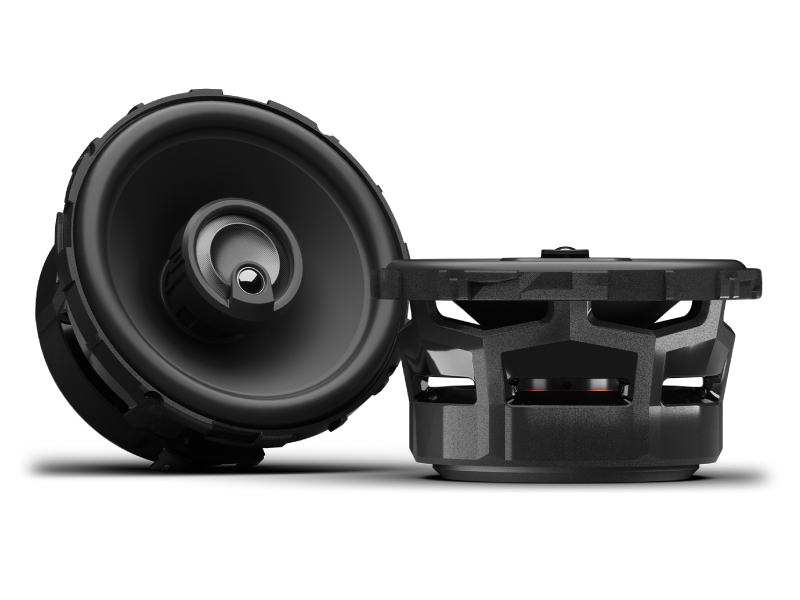

Rockford Fosgate Punch P1 4" 3-Way Coaxial Speaker - P1V2-4
P1V2-4
The family of P1 PUNCH speakers were engineered to fit and built to put you in control. The vehicle-specific adapters and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configurations, and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility: No matter the application, the PUNCH series offers exceptional flexibility for your build. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven: Powered by our advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. The Tru-Sight tweeter ensures precise high-frequency alignment, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.
Built to Last: Every component. Every material. Chosen for strength. Built for the long haul. From reinforced carbon fiber baskets to Santopreneâ„¢ surrounds and Nomex spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.
Overview
The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don’t have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and “punch”.

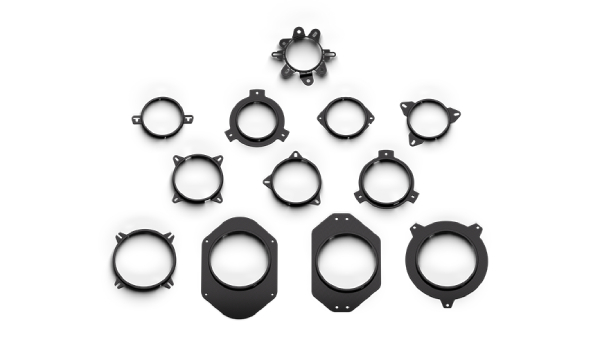

Kit Includes: • (2) 4" 4Ω Coaxial Speakers• (2) Bass Blockers • (6) OEM Adaptors• Installation Hardware

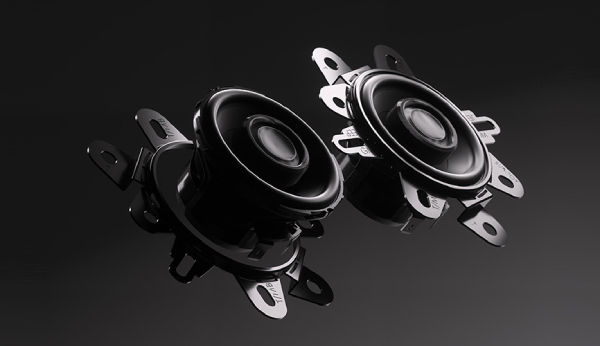

- Updated mounting flanges for direct fitment in new vehicles
- 3/4" (19 mm) Tetolon inverted dome tweeter for reliable performance under stress
- 3/8" (9 mm) Polypropylene piezo super tweeter for enhanced high-frequency response
- 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
- Santoprene half-roll surround for low distortion and unmatched fatigue resistance
- Co-molded surround and cone body chemically bonded for high durability
- Fatigue and tear resistant linear Nomex spider
- Ultra-flexible braded tinsel leads securely stitched to spider
- 15% glass-fiber reinforced PA66 injected molded composite basket

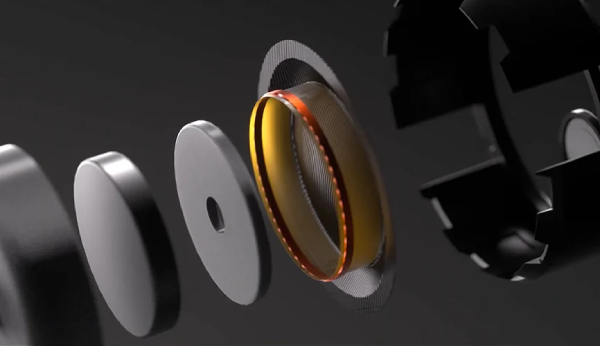

- Vented Kapton voice coil former for excellent heat dissipation
- Overhung voice coil ensures consistent magnetic flux for less speaker distortion
- High strength Y35 ferrite motor structure (5mm larger over previous generation)
- Co-molded basket terminals for secure connectivity
- ICC+ internal concealed 6dB/octave crossover network

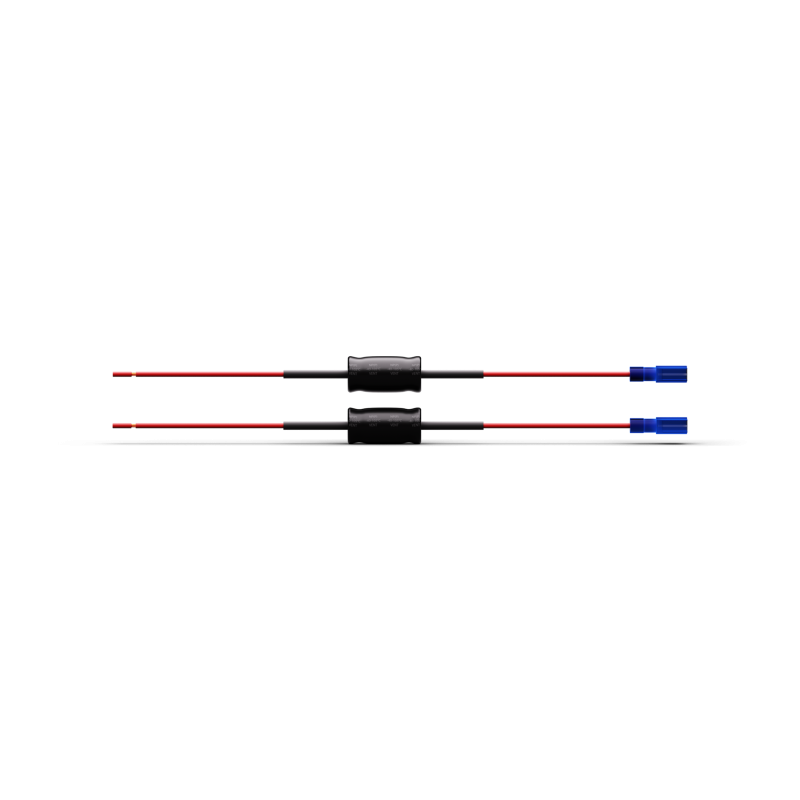

- Includes external “bass blocker†6dB/octave crossover
- Includes installation adaptor plate
- Includes mounting hardware
- Includes cut-out template
- Grilles sold separately
- Sold in pairs (2 each)
- 2-Year Warranty
Product Launch
This is the future of sound. The PUNCH speakers were engineered to fit and built to perform. Step in or step aside. PUNCH is back.
Product Overview
Take a closer look at the full line of PUNCH speakers from Rockford Fosgate. Engineered to fit. Built to perform. See how they integrate seamlessly into almost any ride and how they elevate your entire audio experience.
Product Comparison
Let’s take a deep dive into the new PUNCH speakers from Rockford Fosgate. Explore the P1, P2, and P3 lines to see which series was designed and engineered for you and your ride.
First Look
Get a feel for the new PUNCH 6.5″ speakers and a hands on look the latest in sound and best-in-class design from Rockford Fosgate. Engineered to fit. Built to perform.
Technologies

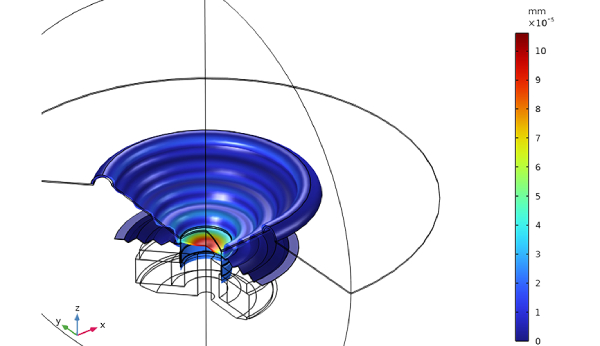

COMSOL Multiphysics
COMSOL software analyzes complex physical phenomena (Multiphysics) that uses FEM (Finite Element Method) to analyze structure strength, heat flow, and electromagnetics, while FFT (Fast Fourier Transform) converts the speaker's acoustical output into frequency components to show amplitude across bass, midrange, and treble ranges.
Auto Fit Architecture
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our factory location mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

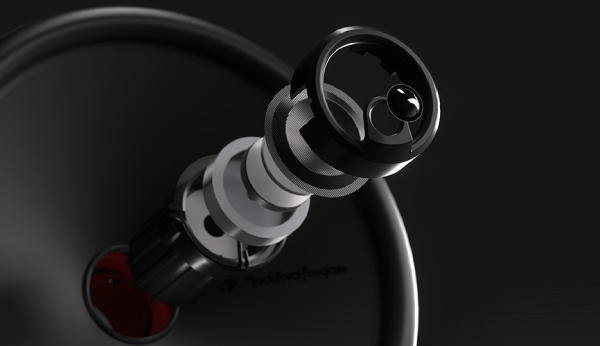

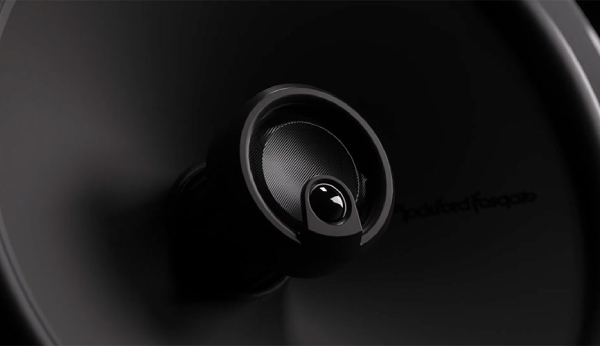

Tru-Sight
Tru-Sightâ„¢ tweeter ensures precise high-frequency alignment, so every note comes through with clarity and accuracy. This technology aligns the industry first lower 1/3 co-witnessed, 2-way tweeter configuration so they complement each other's acoustical output, creating a unified and balanced soundstage.
F.L.W.R.
Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

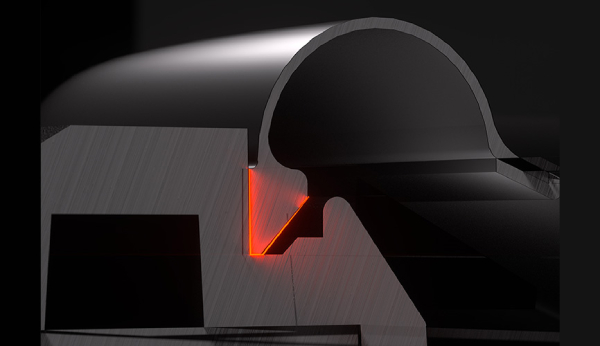

VAST 2.0
The Vertical Attach Surround Technique delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass.VAST 2.0 updates the surround's mounting location from an upside-down "T" shape to a "V" shape to increase the surround-to-frame gluing surface area in the pull-force direction.
Edge Driven Tweeter
The inverted dome tweeter incorporates an edge-driven voice coil, engineered for high-performance audio systems. The dome enhances clarity and precision in high frequencies, while the coil ensures superior power handling and broader sound dispersion. Together, they deliver an immersive high-frequency response ideal for a wide range of installation applications.
Spiderless Piezo Tweeter
The 9mm polypropylene piezo super-tweeter eliminates the need for a conventional spider by utilizing magnetic ferrofluid in the voice coil gap. This fluid adheres to the coil, maintaining precise centering and stability during operation. Additionally, it acts as a thermal conductor, efficiently dissipating heat when the tweeter is driven at high output levels. This design improves reliability and ensures consistent high-frequency performance under demanding conditions.
CTA-2031
Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier.
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested.
Vibration Resistant
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
| Specifications | |
|---|---|
| Speaker Type | Coaxial |
| Midrange Size (Nominal Diameter) | 4" |
| Tweeter Size (Nominal Diameter) | 3/4" (19 mm) ,Inverted Dome |
| Piezo Size (Nominal Diameter) | 3/8" (9 mm) ,Co-Witnessed Convex |
| Nominal Impedance (Ohms) | 4Ω |
| Frequency Response (Hz) | 75Hz - 25kHz |
| Voice Coil Diameter (in/mm) | 1" (25.4 mm) |
| Crossover | Tweeter High-Pass: 9kHz @ 6 dB/Octave ,Midrange Bass Blocker: 1,200Hz @ 6 dB/Octave (33µF) |
| Fs (Hz) | 100 Hz |
| Sensitivity (2.83V/1M) | 88 dB |
| Front-Loading Depth (Twist-Lock Adaptor) | 1.99" (50.5 mm) |
| Min. Mounting Depth (No Motor Cover) | — |
| Rear-Loading Depth (Twist-Lock Adaptor) | 1.72" (43.8 mm) |
| Mounting Depth (With Motor Cover) | — |
| Sensitivity (dB @ 1W/1M) | 85 dB |
| Power Handling (Watts RMS) | 75 Watts RMS ,150 Watts Peak |
| Cutout Diameter | 3.41" (86.5 mm) |
| Removable Motor Cover | No |
| Grille/Trim Ring Included | No |
| Included in the Box | (2) 4” 4Ω 3-Way Coaxial Speakers, (1) 4” Speaker Cutout Template, (2) 4” 4-Tab Twist-Lock Adaptors (univ), (2) 4” 3-Tab Twist-Lock Adaptors (Tesla/MB), (2) 4” 3-Tab Twist-Lock Adaptors (Jeep), (2) 33µF Non-Polarized Cap (Bass-Blockers), (8) Self-Tapping Phillips #8x32mm (Speaker), (2) 18 AWG Red/Black Speaker Wire, 205 mm, (3) 18 AWG (–) Female Crimp Spade Conn. (.187”), (3) 18 AWG (+) Female Crimp Spade Conn. (.250”), (4) 18 AWG Crimp Butt Connectors |
| Mounting Hardware | Yes |
| Front Side Clearance | 0.5" (12.7 mm) |
| Shipping Weight | 3.5 Lbs. (1.59 Kg.) |
