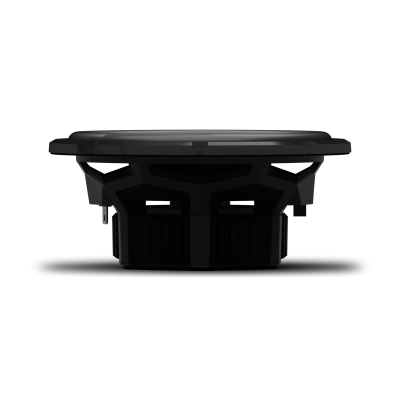

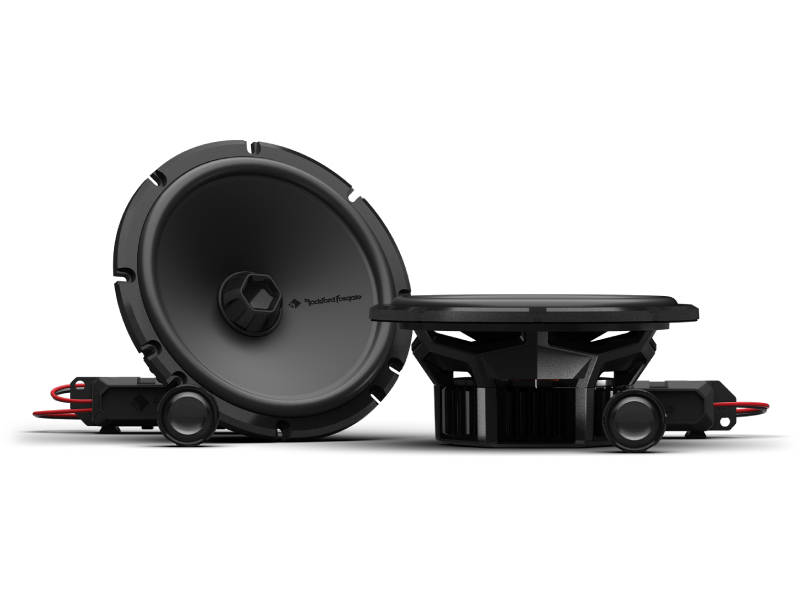

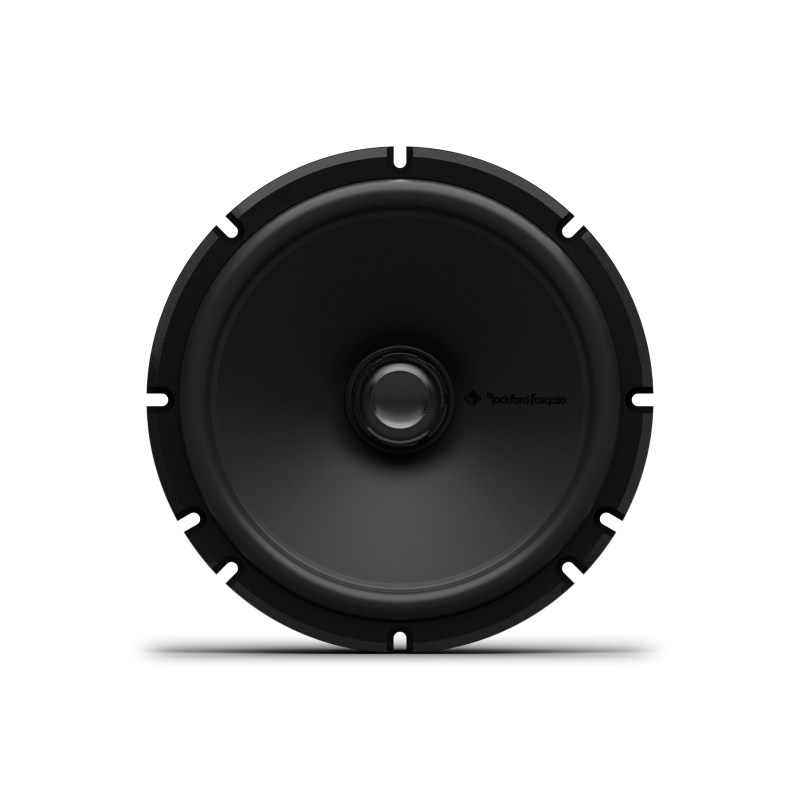

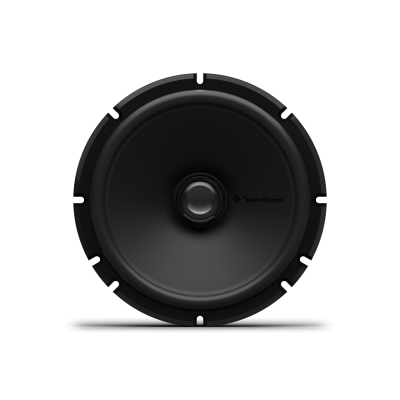

Rockford Fosgate Punch P2 6.5" 2-Way High-Output Convertible Speaker - P2V2-65HO

The family of P2 PUNCH speakers were engineered to fit and built to put you in control. With a versatile convertible design, these speakers can be configured as either component or coaxial systems to suit your setup. The internal/external crossovers and redesigned frame geometry ensures seamless integration and installation. A larger motor, precision-tuned tweeter configuration, and ultra-durable materials deliver relentless output and uncompromising reliability.

Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our factory location mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

Superior Flexibility: With a versatile convertible design, these speakers can be configured as either component or coaxial systems to suit your setup. The Interchangeable Locking Mechanism (I.L.M.) lets you lock and unlock the tweeter from the wired mounting cup with zero hassle. This flexible design allows you to take even more control over your install layout and tweeter location. All engineered to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.

Performance Driven: Powered by our advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. The inverted dome tweeter ensures a precise high-frequency range, so every note comes through with clarity and accuracy. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.

Built to Last: Every component. Every material. Chosen for strength. Built for the long haul. From reinforced polymer baskets to Santoprene surrounds and Nomex spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.

Overview

The P2 PUNCH speakers are flexible upgrades for OEM systems with optional tweeters or for custom upgrades. The P2 convertibles offer true versatility by using them as a coaxial on vehicles equipped with one speaker for a fast drop-in, or a 2-way component on vehicles equipped with a separate tweeter/midrange – like those found in an A-pillar or dash – for enhanced staging and imaging.

Kit Includes: • (2) 3/4" 2Ω Tweeters• (2) 6.5" 2Ω Convertible Speakers• (2) Crossovers• (1) Tweeter Removal Tool• Installation Hardware

• I.L.M. (Interchangeable Locking Mechanism) allows configuration as a coaxial or component system
• 2Ω High Output (HO) version for direct OEM replacement

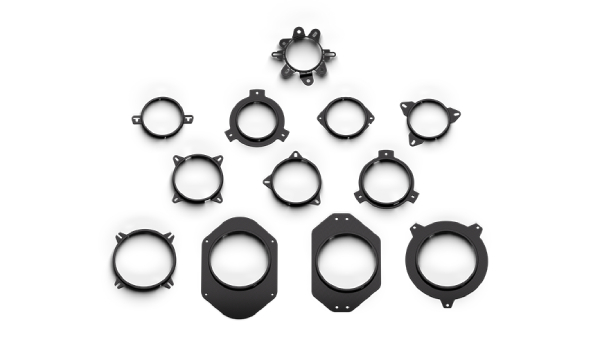

• Updated mounting flanges for direct fitment in new vehicles
• 3/4" (19 mm) Tetolon inverted dome tweeter for reliable performance under stress
• 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
• Santoprene half-roll surround for low distortion and unmatched fatigue resistance
• 15% glass-fiber reinforced PA66 injected molded composite basket
• Co-molded surround and cone body chemically bonded for high durability
• Ultra-flexible braded tinsel leads securely stitched to spider
• Fatigue and tear resistant linear Nomex spider
• Surface/flush tweeter cups use copper spring contacts for front-side servicing (tool included)
• Flush-mount threaded tweeter cup fits 3/8" thick panels using 1.5" hole-saw cutout
• Vented Kapton voice coil former for excellent heat dissipation
• Includes woofer phase plug when tweeter relocated to separate tweeter cup
• Overhung voice coil ensures consistent magnetic flux for less speaker distortion
• High strength Y35 ferrite motor structure (5mm larger over previous generation)

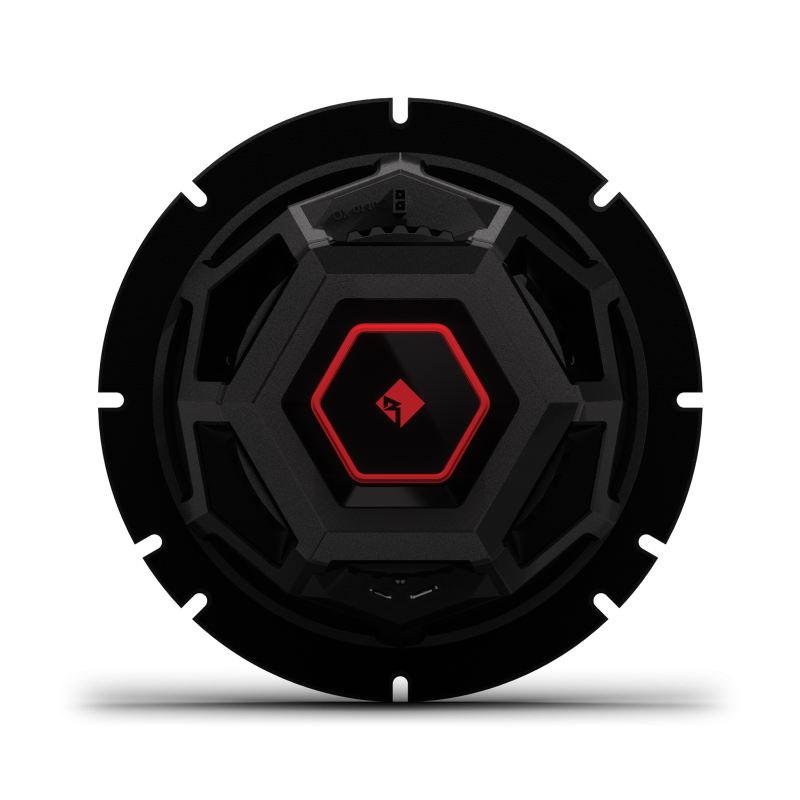

• Removable motor cover for fitment in tight applications
• ICC+ (internal concealed crossover) 6dB with 12dB external option and -3dB tweeter attenuation
• 2-pin micro-Molex crossover connection that are secured using screws or zip ties
• Co-molded basket terminals for secure connectivity
• Includes mounting hardware
• Includes cut-out template
• Grilles sold separately
• Sold in pairs (2 each)
• 2-Year Warranty

Technologies

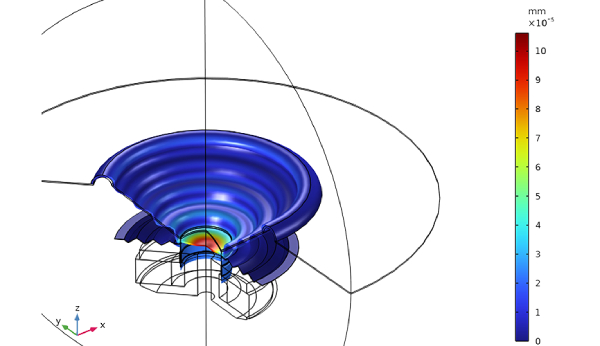

COMSOL Multiphysics

COMSOL software analyzes complex physical phenomena (Multiphysics) that uses FEM (Finite Element Method) to analyze structure strength, heat flow, and electromagnetics, while FFT (Fast Fourier Transform) converts the speaker's acoustical output into frequency components to show amplitude across bass, midrange, and treble ranges.

Auto Fit Architecture

Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our factory location mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

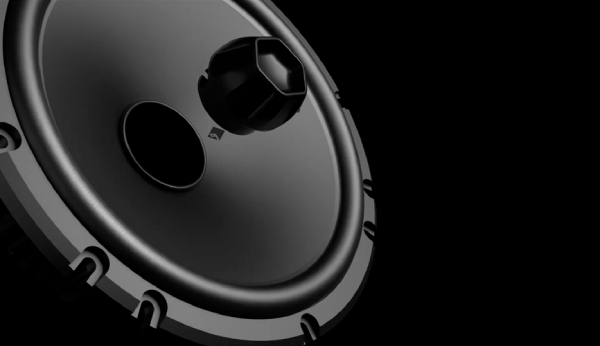

Point Source Alignment

The low-profile tweeter position improves high-frequency dispersion by aligning both voice coils more precisely. In component setups, a phase plug refines sound wave dispersion, enhancing high-frequency response and directional accuracy.

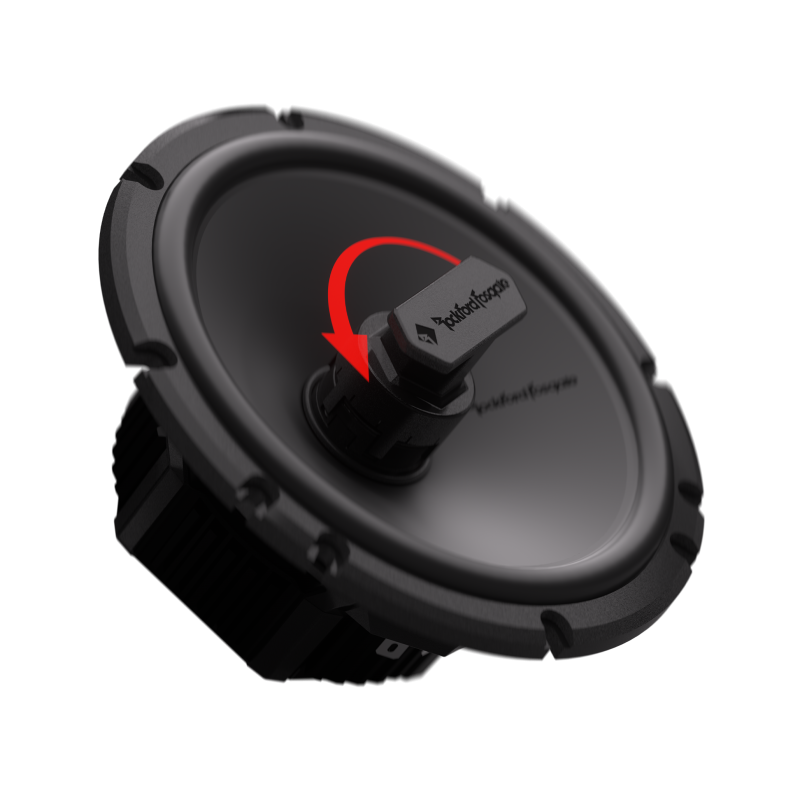

I.L.M. (Interchangeable Locking Mechanism)

The Interchangeable Locking Mechanism gives installers full control over tweeter placement by allowing the speaker to be configured as a coaxial or component, ensuring optimal output in any vehicle. The bayonet-style locking mechanism allows tweeter and phase plug to be quickly interchanged and is engineered to withstand high-frequency vibrations and mechanical shocks typical of automotive environments.

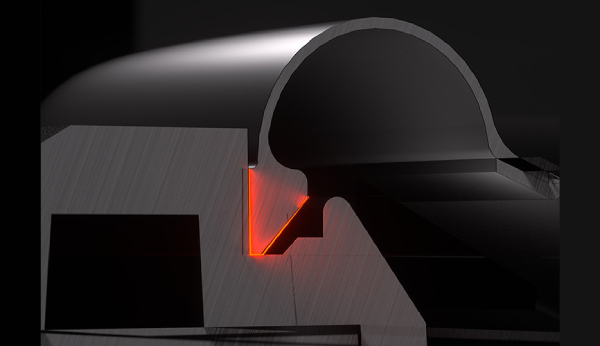

VAST 2.0

The Vertical Attach Surround Technique delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass.VAST 2.0 updates the surround's mounting location from an upside-down "T" shape to a "V" shape to increase the surround-to-frame gluing surface area in the pull-force direction.

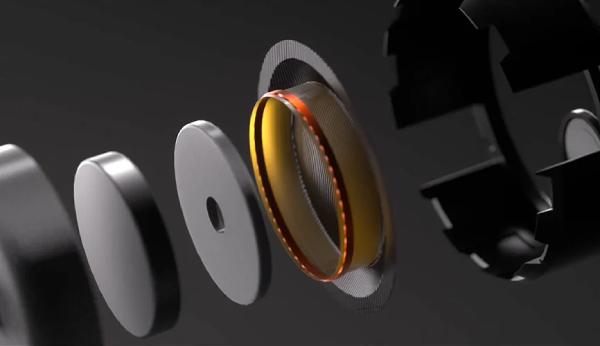

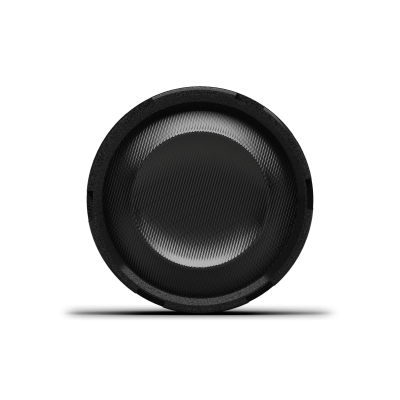

Edge Driven Tweeter

The inverted dome tweeter incorporates an edge-driven voice coil, engineered for high-performance audio systems. The dome enhances clarity and precision in high frequencies, while the coil ensures superior power handling and broader sound dispersion. Together, they deliver an immersive high-frequency response ideal for a wide range of installation applications.

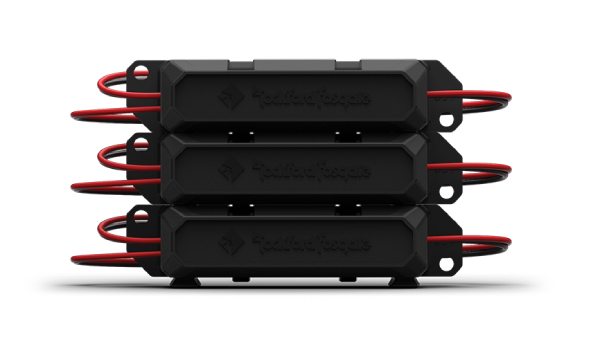

MC3 (Multi Configuration Crossover Chassis)

Allows the crossover to break down into separate units, giving you total freedom to route and wire your setup your way. The crossovers can be positioned independently in specific locations, allowing for flexible installation options. Alternatively, they can be snapped together to form a unified structure and used in one location, providing a seamless and integrated solution.
