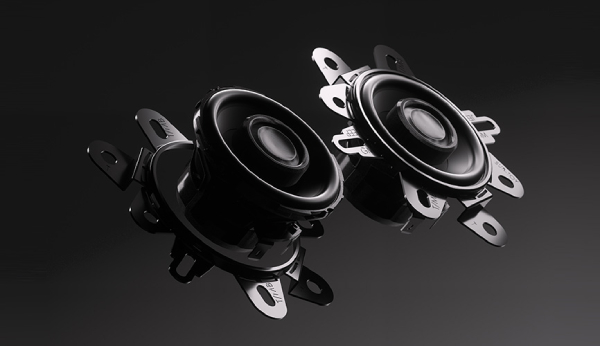

Rockford Fosgate Punch P3 2.5" Component Midrange Speaker - P3V2-25
P3V2-25
The family of P3 PUNCH speakers were engineered to fit and built to put you in control. The P3V2-25 is designed for 3-way speaker systems to deliver a precise and immersive audio experience. Three independent drivers ensure every frequency range is reproduced with exceptional clarity and accuracy. A larger cone area and ultra-durable materials deliver relentless output and uncompromising reliability.
Auto Fit Architecture: Everything was engineered to fit. A re-designed frame, mounting holes, and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.
Superior Flexibility: The Multi-Configuration Crossover Chassis (M.C.3) breaks down into separate units, giving you total freedom to route and wire your setup your way. Every detail has been carefully considered, from frame geometry to mounting holes and diameter all to ensure a seamless fit in most modern vehicles and to make installation as smooth and adaptable as possible.
Performance Driven: Powered by our advanced VAST 2.0 technology, the PUNCH series delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass. Rated at 75W RMS and 150W peak, PUNCH speakers deliver the output you demand, loud, clean, and relentless.
Built to Last: Every component. Every material. Chosen for strength. Built for the long haul. From reinforced polymer baskets to Santoprene surrounds and Nomex spiders, every part of the PUNCH speaker is engineered to be a workhorse. No matter how hard you drive them, the class-leading construction delivers relentless performance that lasts.
Overview
The P3 PUNCH offers high-fidelity performance in a premium OEM replacement. The P3V2-25 speakers are designed for vehicles equipped with a separate tweeter, midrange, and woofer. These are for drivers who want it all. Precision detail, powerful midrange, and accurate lows.
Kit Includes: • (2) 2.5" 4Ω Midrange• (2) Bass Blocker Crossovers• (2) Midbass Crossovers (2x MID) • (2) OEM Adaptors• Installation Hardware
- Midrange driver for use in center channel or 3-way component systems
- Updated mounting flanges for direct fitment in new vehicles

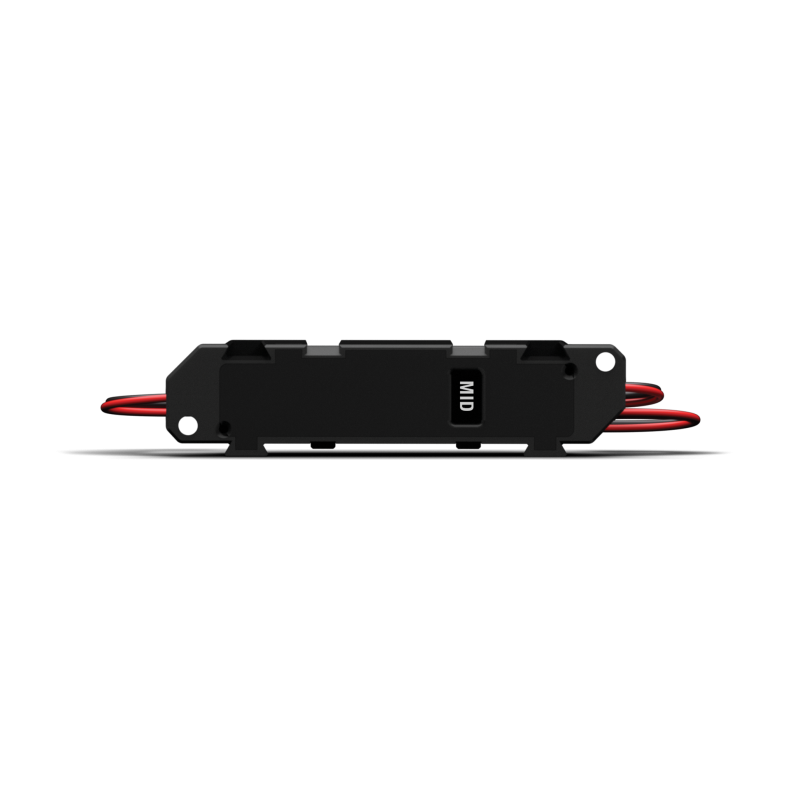

- External 6dB/octave Band-Pass crossover
- 2-pin micro-Molex crossover connection that are secured using screws or zip ties
- Includes mounting hardware
- Grilles sold separately
- Includes cut-out template
- Sold in pairs (2 each)
- 2-Year Warranty
Product Launch
This is the future of sound. The PUNCH speakers were engineered to fit and built to perform. Step in or step aside. PUNCH is back.
Product Overview
Take a closer look at the full line of PUNCH speakers from Rockford Fosgate. Engineered to fit. Built to perform. See how they integrate seamlessly into almost any ride and how they elevate your entire audio experience.
Product Comparison
Let’s take a deep dive into the new PUNCH speakers from Rockford Fosgate. Explore the P1, P2, and P3 lines to see which series was designed and engineered for you and your ride.
First Look
Get a feel for the new PUNCH 6.5″ speakers and a hands on look the latest in sound and best-in-class design from Rockford Fosgate. Engineered to fit. Built to perform.
Technologies

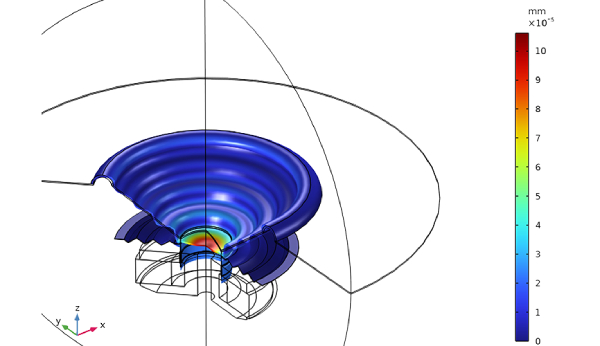

COMSOL Multiphysics
COMSOL software analyzes complex physical phenomena (Multiphysics®) that uses FEM (Finite Element Method) to analyze structure strength, heat flow, and electromagnetics, while FFT (Fast Fourier Transform) converts the speaker's acoustical output into frequency components to show amplitude across bass, midrange, and treble ranges.
Auto Fit Architecture
Everything was engineered to fit. A re-designed frame, mounting holes, removable motor cover and speaker diameter were all engineered to ensure seamless integration into today's modern vehicles. Our factory location mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

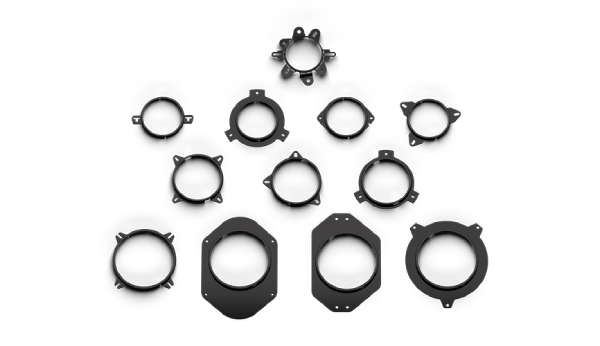

F.L.W.R.
Our Factory Location Woofer Ring (F.L.W.R.) and mounting flanges provide a flexible yet precise alignment for drop-in integration into most factory mounting locations.

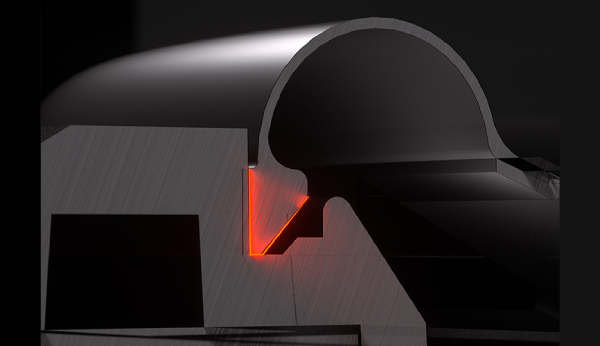

VAST 2.0
The Vertical Attach Surround Technique delivers a 25% increase in cone area, resulting in maximum output and deeper, more impactful bass.VAST 2.0 updates the surround's mounting location from an upside-down "T" shape to a "V" shape to increase the surround-to-frame gluing surface area in the pull-force direction.

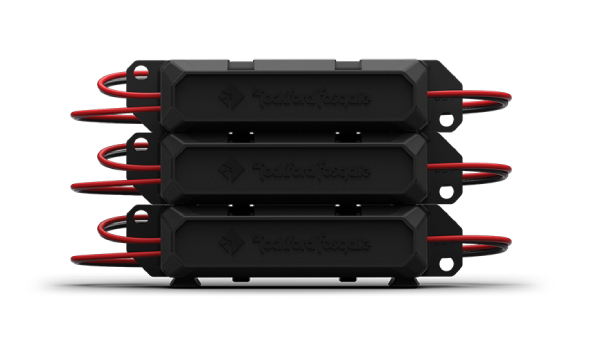

MC3 (Multi Configuration Crossover Chassis)
Allows the crossover to break down into separate units, giving you total freedom to route and wire your setup your way. The crossovers can be positioned independently in specific locations, allowing for flexible installation options. Alternatively, they can be snapped together to form a unified structure and used in one location, providing a seamless and integrated solution.
CTA-2031
Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested
Vibration Resistant
(ISO 60068-2-64) Components are able to withstand shock and vibration conditions common with outdoor vehicles.
| Specifications | |
|---|---|
| Speaker Type | Component System |
| Piezo Size (Nominal Diameter) | — |
| Tweeter Size (Nominal Diameter) | — |
| Midrange Size (Nominal Diameter) | 2.5" |
| Woofer Size (Nominal Diameter) | — |
| Nominal Impedance (Ohms) | 4Ω |
| Frequency Response (Hz) | 135Hz - 15kHz |
| Voice Coil Diameter (in/mm) | 1.00" (25.4 mm) |
| Crossover | MIDRANGE: ,• BP 600Hz - 6kHz @ 6dB/octave (external) ,,MIDRANGE BASS BLOCKER: ,• LP 1,200Hz @ 6 dB/Octave (33µF) |
| Fs (Hz) | 180 Hz |
| Sensitivity (dB @ 1W/1M) | 82 dB |
| Sensitivity (2.83V/1M) | 85 dB |
| Power Handling (Watts RMS) | 75 Watts RMS ,150 Watts Peak |
| Mounting Depth (No Motor Cover) | — |
| Mounting Depth (With Motor Cover) | — |
| Rear-Loading Depth (Twist-Lock Adaptor) | 1.47" (37.3 mm) |
| Front-Loading Depth (Twist-Lock Adaptor) | 1.60" (40.6 mm) |
| Midrange Front Side Clearance | 0.26" (6.5 mm) |
| Midrange Cutout Diameter | 2.54" (64.5 mm) |
| Removable Motor Cover | No |
| Grille/Trim Ring Included | No |
| Mounting Hardware | Yes |
| Included in the Box | (2) 2.5" 4Ω Speakers,(2) FLWR Twist-Lock Adaptors (multi),,(1) 2.5" Speaker Cut-Out Template,(2) Passive Crossover Network (Midrange),(2) 18" Crossover Wiring Extensions,(2) 33µF Non-Polarized Capacitor (Bass Blocker),(4) Self-Tapping Phillips #8x32mm (Speaker),(4) Self-Tapping Phillips #4x16mm (Crossover),(2) Zip Ties 4.8 mm x 350 mm,(2) 18 AWG Red/Black Speaker Wire, 205 mm,(3) 18 AWG (–) Female Crimp Spade Conn. (.187"),(3) 18 AWG (+) Female Crimp Spade Conn. (.250"),(6) 18 AWG Crimp Butt Connectors |
| Shipping Weight | 2 Lbs. (0.91 Kg.) |
