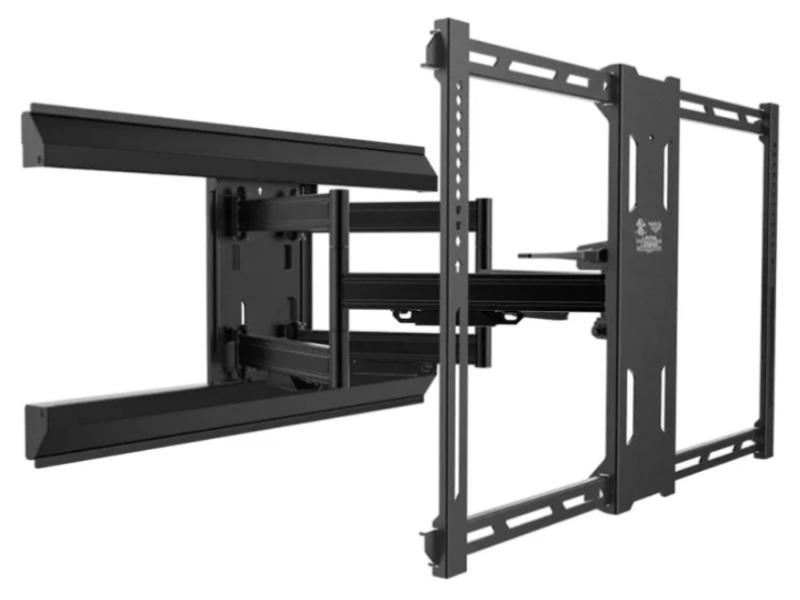

Don’t let the size of your TV dictate where you put it. Capable of supporting TVs up to 80”, the Kanto PMX680 features two articulating arms that can be horizontally offset to give you the utmost discretion over where your TV is placed. With 24” of extension, this full motion wall mount provides enough tilt and swivel movement to ensure you always have the perfect viewing angle. Its low profile design allows your TV to sit 2.5” from the wall when fully retracted and features cable management clips to keep your cables out of sight.

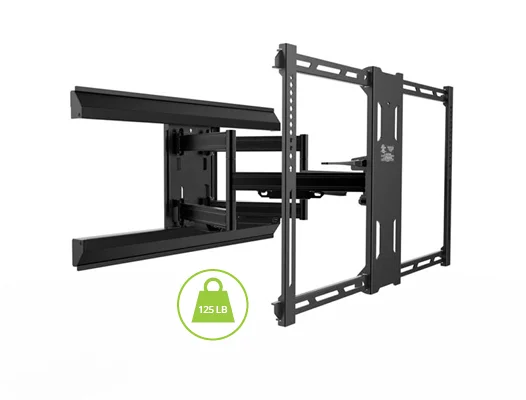

Supports 125 Pounds
The Kanto PMX680’s solid steel frame safely holds up to 125 lb (57 kg), even at full extension.

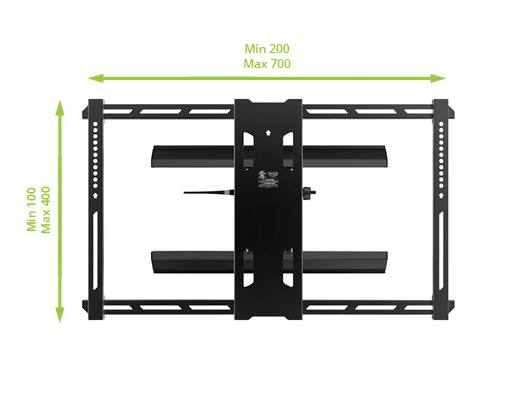

Fits VESA Sizes to 700 X 400
Featuring a specially designed H-frame mounting bracket, the Kanto PMX680 accommodates any VESA size between 200×100 to 700×400.

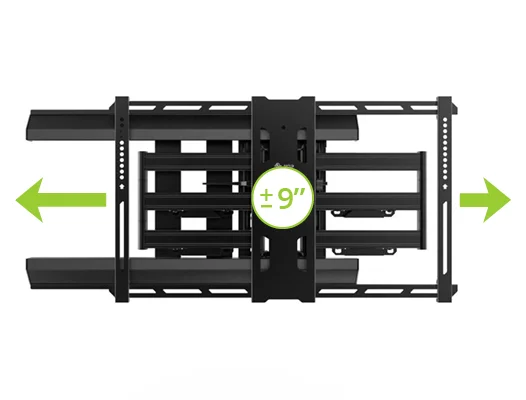

Horizontal Offset
Center your TV on the wall regardless of where your studs are located by adjusting the extendable, full motion TV mount’s arm assembly 9” (22.8 cm) left or right.

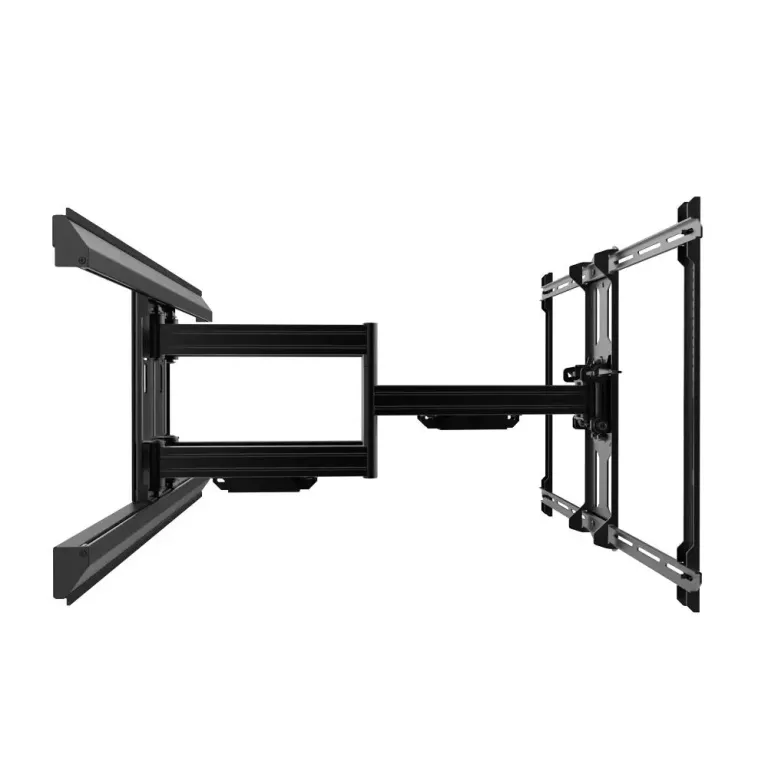

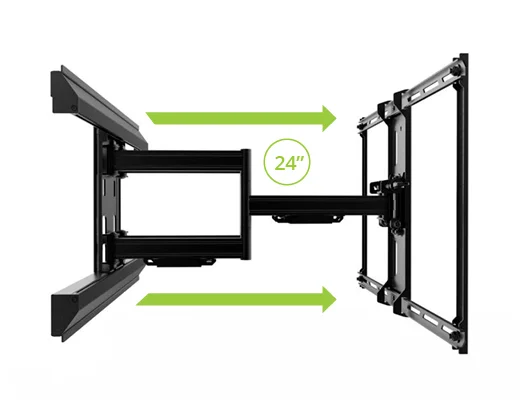

Extends 24 Inches
Easily reach over fireplaces or out of recessed locations with 24″ (61.3 cm) of extension.

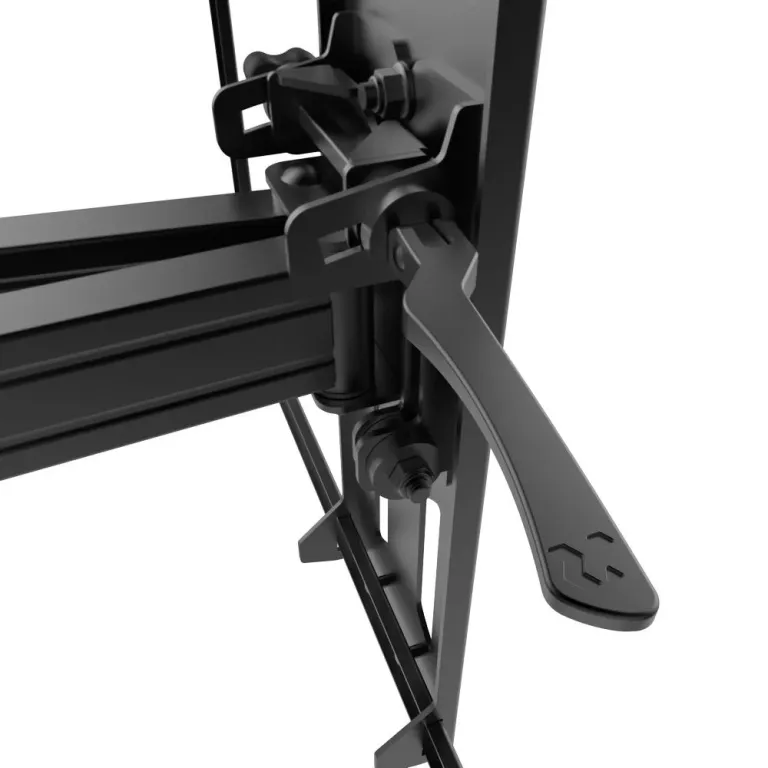

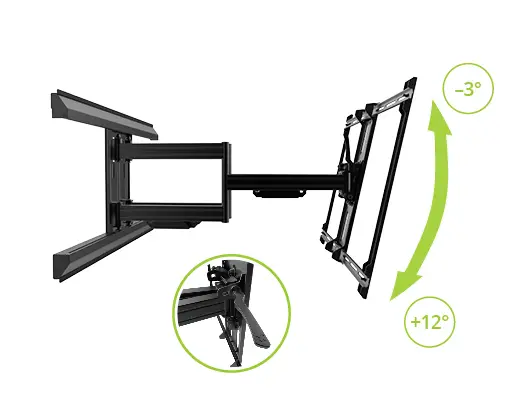

Toolless Tilt Mechanism
Effortlessly tilt your TV 12° forward or 3° backward with the extendable TV mount’s newly designed toolless tilt mechanism.

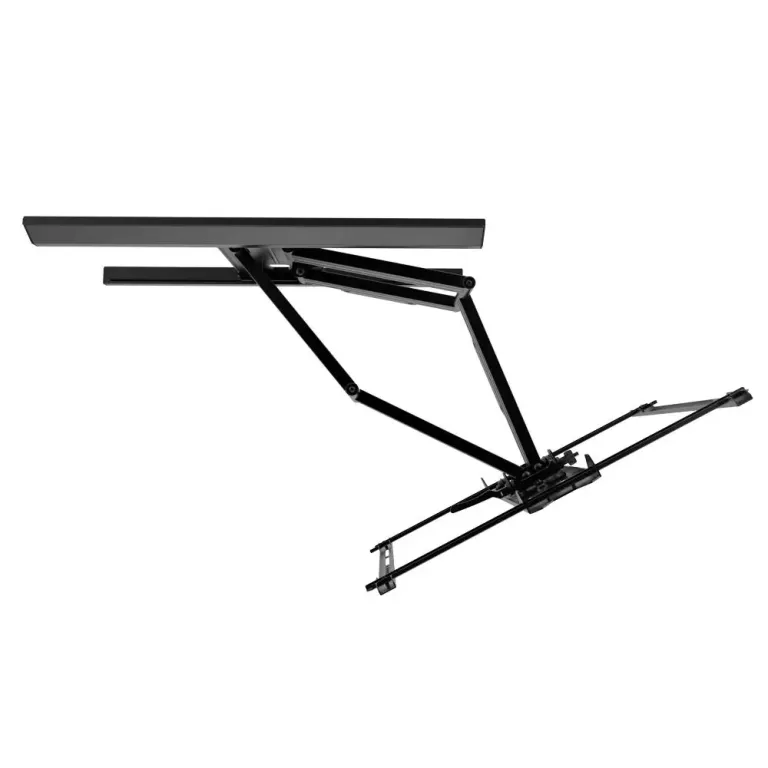

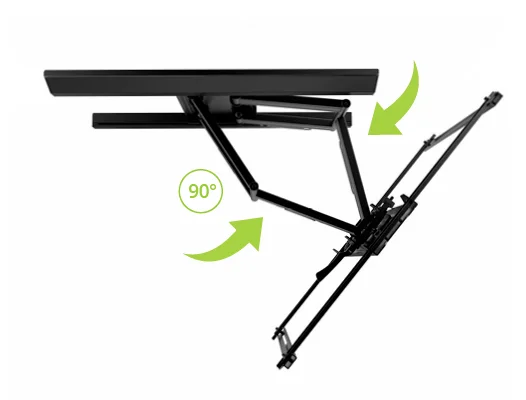

Swivels Up to 180 Degrees
Achieve the best viewing angle regardless of where you’re sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.

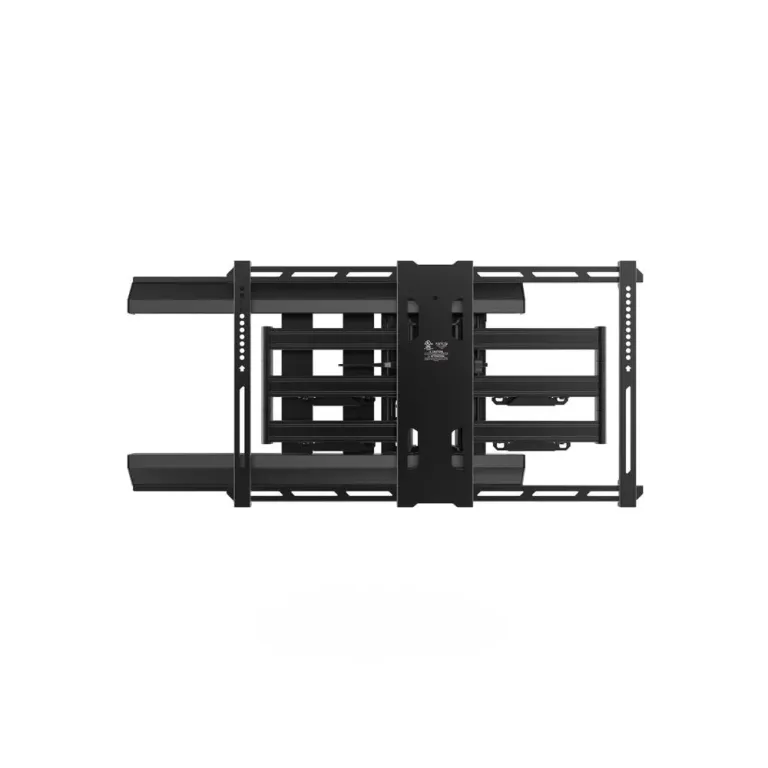

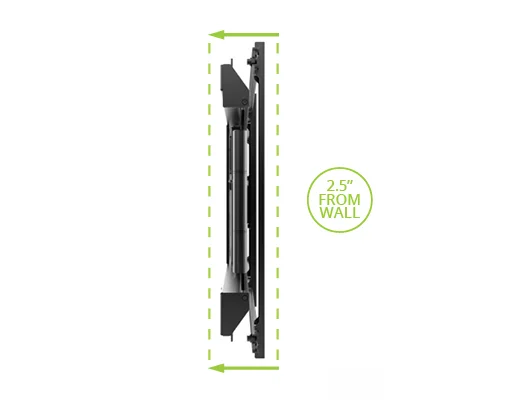

Low Profile Design
The unique design of the extendable, full motion TV mount allows your TV to sit 2.5 inches from the wall when fully pushed in.

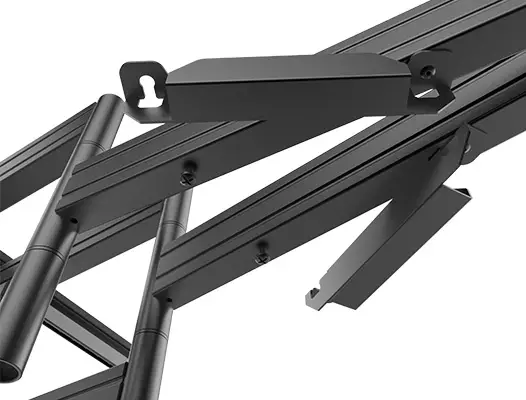

Sleek Cable Management
Four cable management raceways located on the bottom of each arm help to keep your viewing area tidy.

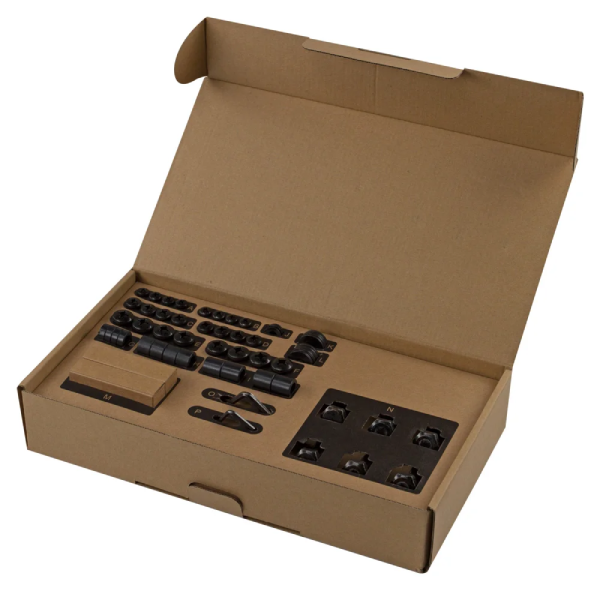

Convenient Bolt Pack
Because every installation is unique, the Kanto PMX680 extendable TV mount is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto PMX Series TV mounts.
| Specifications | |
|---|---|
| TV Sizes: | 39” to 80” |
| Weight Allowance: | 125 lbs (57 kg) |
| VESA Sizes: | 200×100 to 700×400 |
| Wall Plate: | 28.9″ (73.3 cm); Accommodates dual studs with up to 24″ spacing |
| MEASUREMENTS | |
| Shipping box weight: | 40.6 lb (18.4 kg) |
| Shipping box dimensions: | 34.8” x 18.5″ x 4.7” / (88.5 x 46.9 x 12 cm) |
| Product weight: | 32 lb (14.5 kg) |
| UPC: | 800152716633 |
| General Features | |
| What’s Included | Paper wall template for marking pilot holesInstallation ManualAll mounting hardware for wood stud and concrete installation |
| Tilt | +12° to -3° |
| Swivel | 180° |
| from the wall | 2.5″ |
| Extension: | 24″ (61.3 cm) from the wall |
| Horizontal Offset: | 18″ (43.6 cm) of total horizontal offset |
| Year Warranty | 10 |
