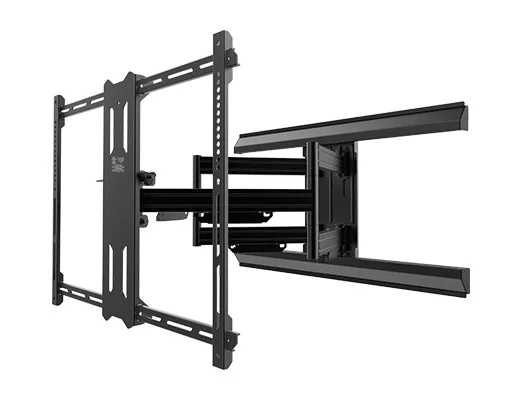

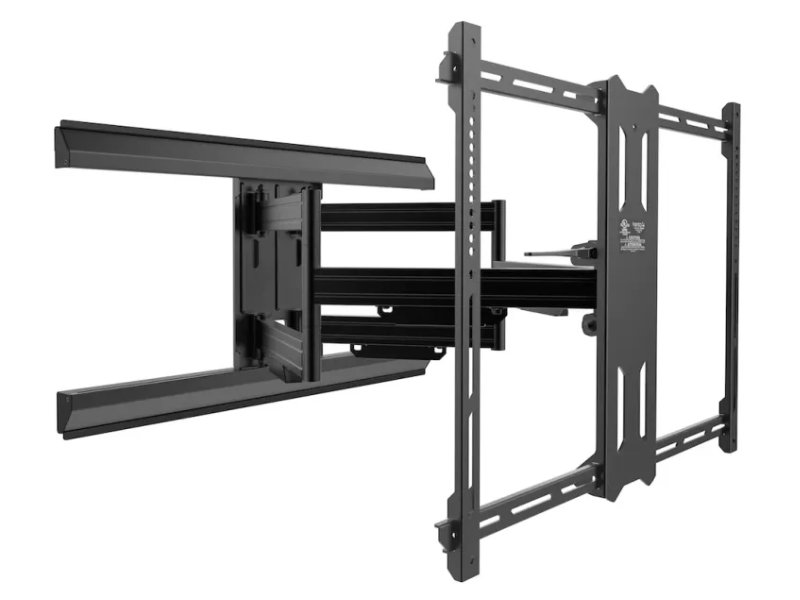

Don’t let the size of your TV dictate where you put it. Capable of supporting TVs up to 100”, the PMX700 features two articulating arms that can be horizontally offset to give you the utmost discretion over where your TV is placed. With 31.3” of extension, this full motion wall mount provides enough tilt and swivel movement to ensure you always have the perfect viewing angle. Its low profile design allows your TV to sit 2.6” from the wall when fully retracted and features cable management clips to keep your cables out of sight.

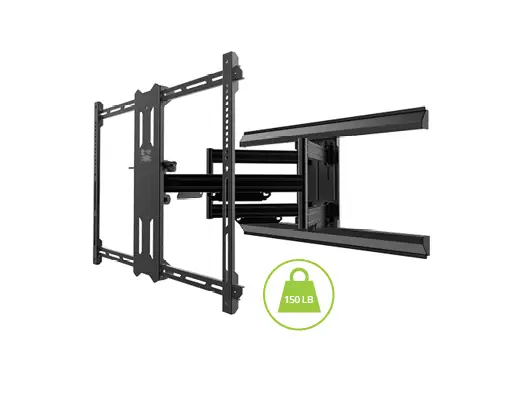

Supports 150 Pounds
The PMX700 full motion wall mount’s solid steel frame safely holds up to 150 lb (68 kg), even at full extension.

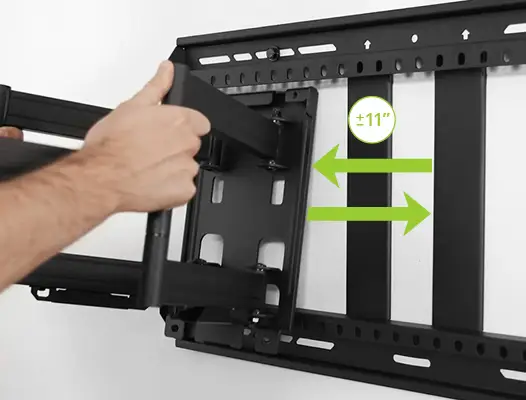

Horizontal Offset
Center your TV on the wall regardless of where your studs are located by adjusting the PMX700’s arm assembly 11” (27.9 cm) left or right.

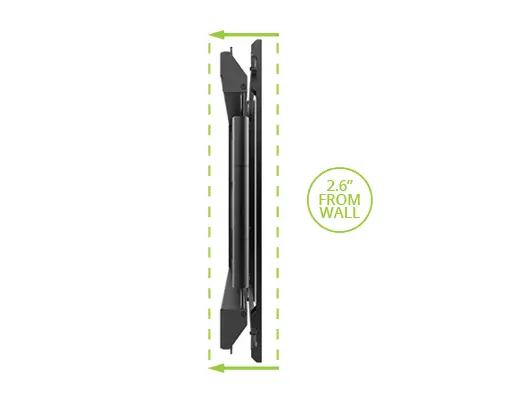

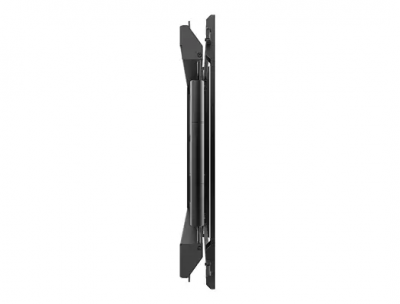

Low Profile Design
The unique design of this articulating wall mount allows your TV to sit 2.6 inches from the wall when fully pushed in.

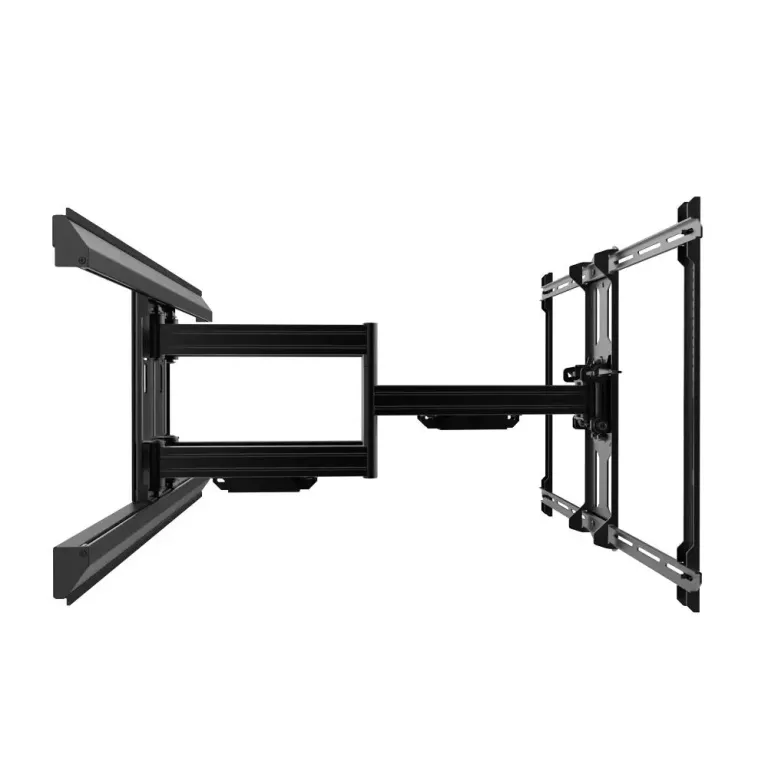

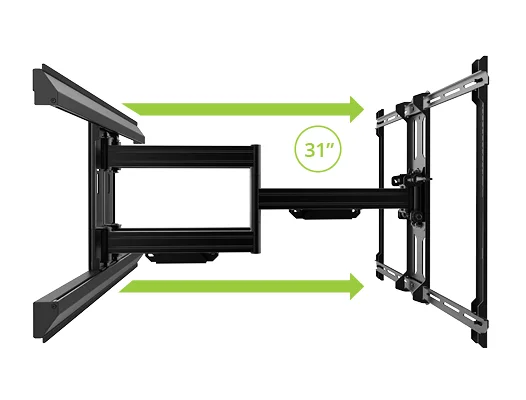

Extends 31 Inches
Easily reach over fireplaces or out of recessed locations with 31.3” (79.5 cm) of extension.

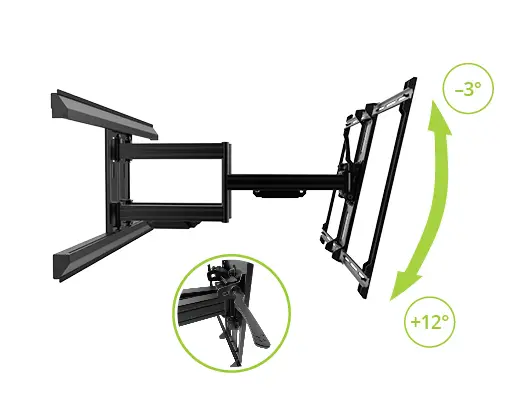

Toolless Tilt Mechanism
Effortlessly tilt your TV 12° forward or 3° backward with the PMX700’s newly designed toolless tilt mechanism.

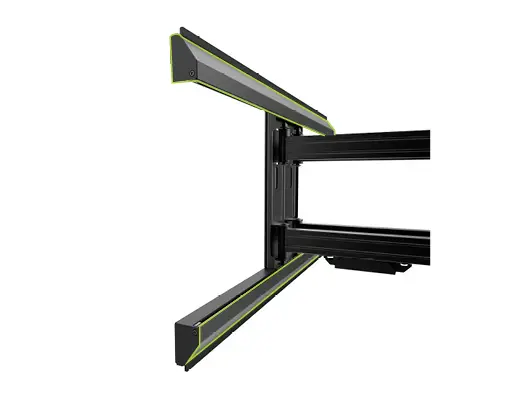

Aluminum Covers
Maintain a clean, finished appearance while hiding any sign of installation with the aluminum wall plate covers on this fully featured TV wall mount.

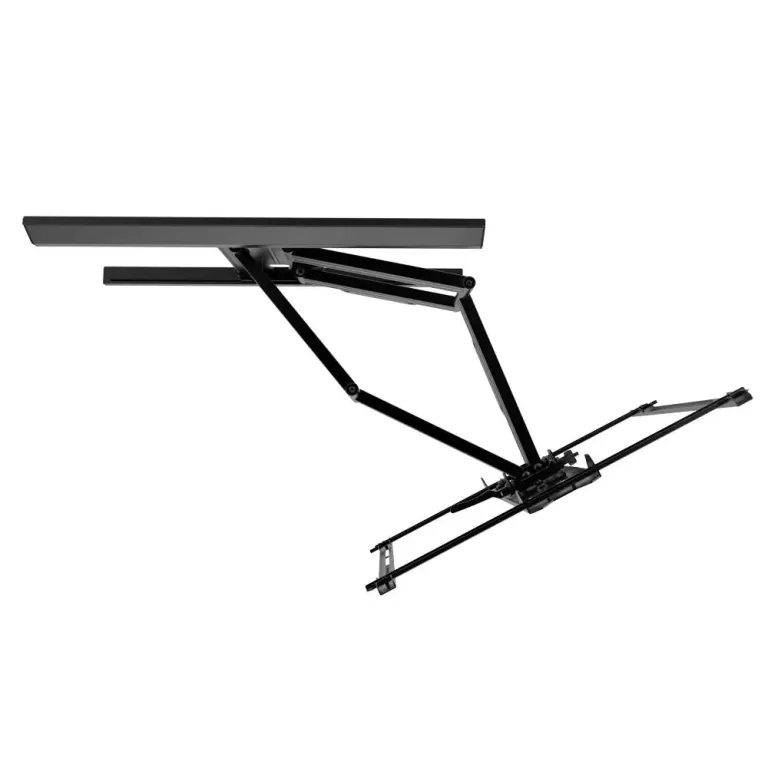

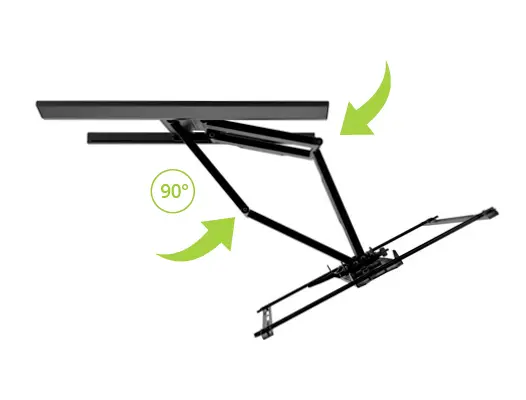

Swivels Up to 180 Degrees
Achieve the best viewing angle regardless of where you’re sitting by swivelling your TV up to 90 degrees left or right, depending on screen size.

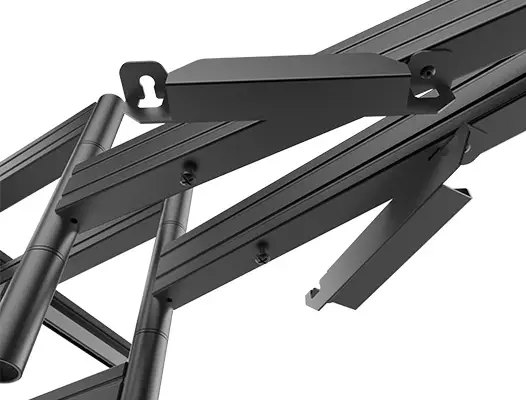

Sleek Cable Management
Four cable management raceways located on the bottom of each arm help to keep your viewing area tidy.

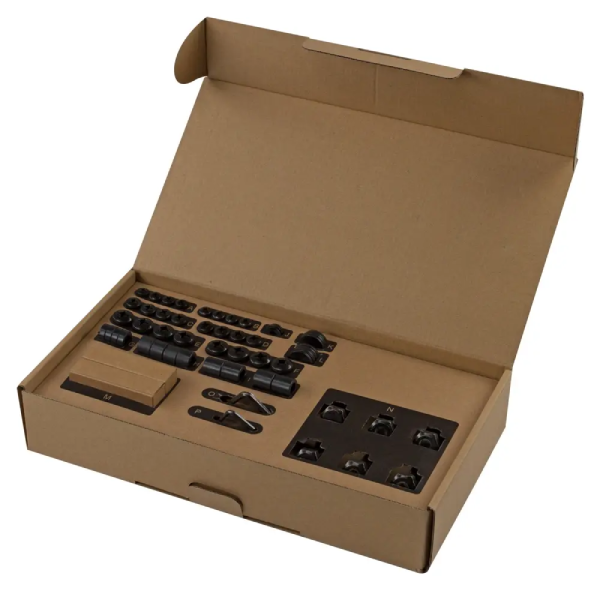

Convenient Bolt Pack
Because every installation is unique, this pro series full motion wall mount is carefully packaged with all the hardware you could need. Choose between a variety of bolt diameters and lengths, as well as several spacers to perfectly fit your TV. Lag bolts and concrete anchors are also provided for both wood studs and concrete walls.
Each mount includes a carefully packaged box containing all the lag bolts, anchors, washers, spacers and screws needed for installation. An included drill template makes marking holes for installation pain-free.
| Specifications | |
|---|---|
| TV Sizes: | 50” to 100” |
| Weight Allowance: | 150 lbs (68 kg) |
| VESA Sizes: | 200×100 to 700×500 |
| Wall Plate: | 32.4″ (82.3 cm); Accommodates dual studs with up to 24″ spacing |
| MEASUREMENTS | |
| Shipping box weight: | 56 lb (25.4 kg) |
| Shipping box dimensions: | 40” x 20.9” x 4.8” / (101.5 x 53.2 x 12.3 cm) |
| Product weight: | 44.5 lb (20.2 kg) |
| UPC: | 800152716640 |
| General Features | |
| What’s Included | Paper wall template for marking pilot holesInstallation ManualAll mounting hardware for wood stud and concrete installation |
| Tilt | +12° to -3° |
| Swivel at full extension (with 50″ TV) | 180° |
| Extension | 2.6″ - 31" |
| Horizontal Offset: | 22″ (55.8cm) of total horizontal offset |
| Specification | Integrated cable managementAdjustable horizontal levelingAluminum covers to hide lag boltscULus Certified |
| Year Warranty | 10 |
