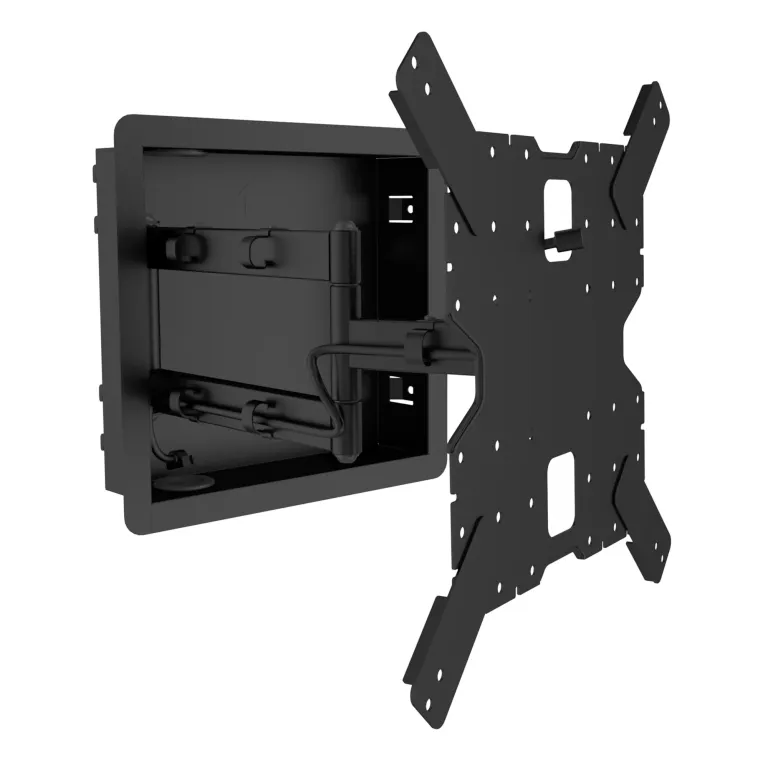

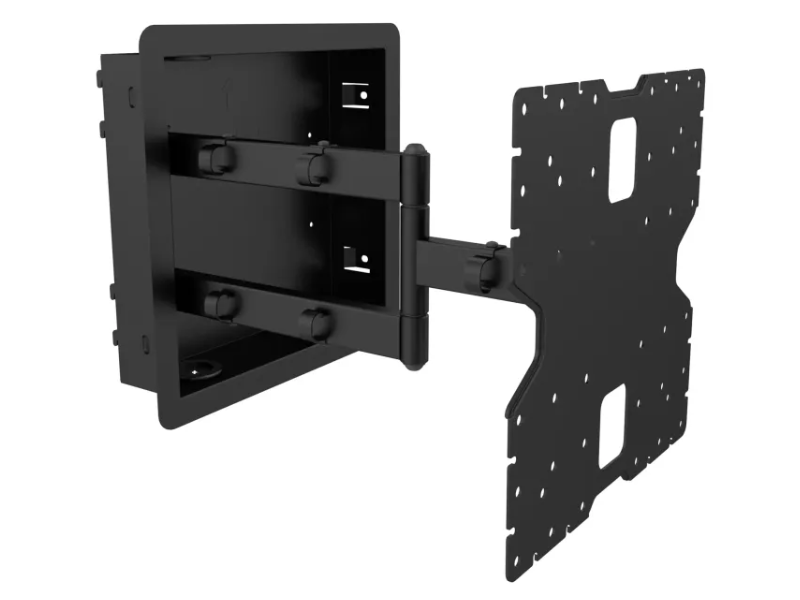

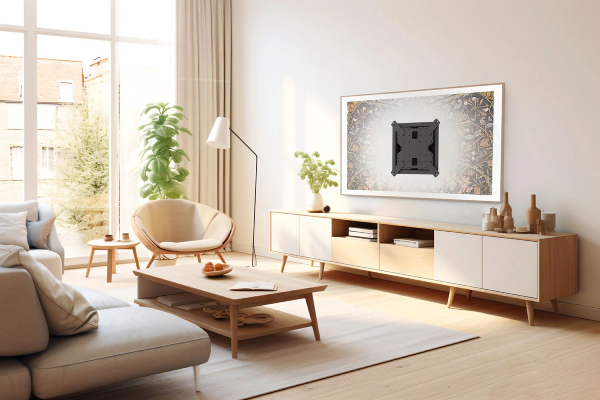

R400 is a mount made for Pro’s featuring a true no gap installation that allows your TV to sit perfectly flush against your wall for the ultimate low-profile look. Thin TVs like OLED appear to float like a picture frame with no visible hardware. With a recessed box that sits in-between studs, you can store streaming boxes and other small electronic accessories out of sight. Metal knockouts allow you to easily run a power outlet into the box, while rubber grommets handle all other cabling for a completely in-wall, wire-free experience. Durable metal cable management clips on the articulating arms take care of messy cables when the TV is pulled out to its full 18” of extension.
Achieve a perfectly flush TV installation

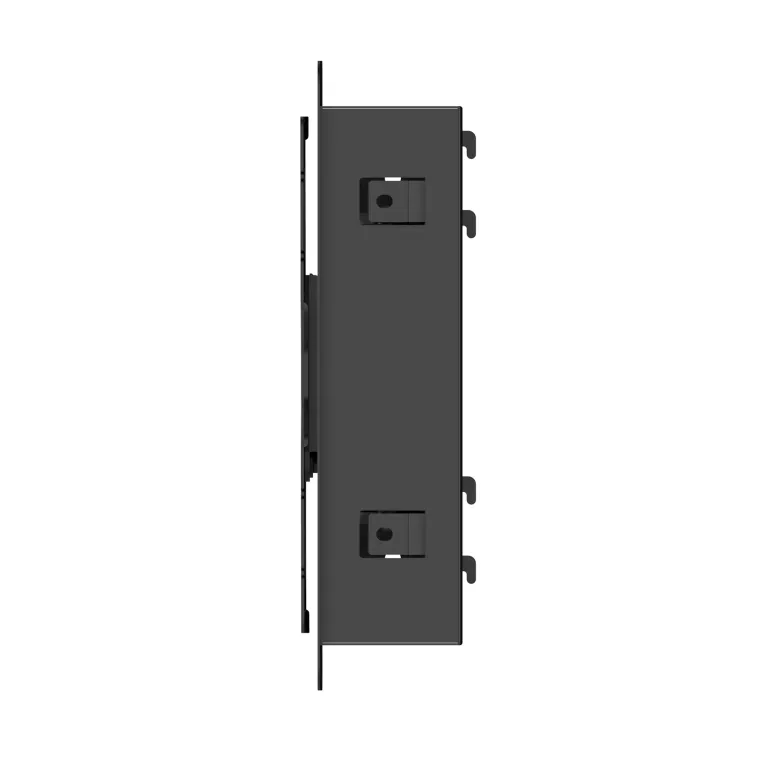

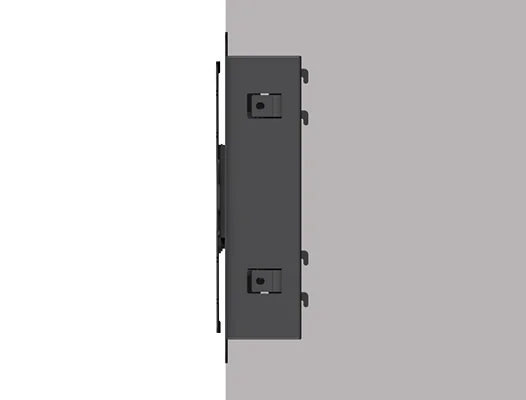

Perfectly Flush
R400 is a true zero gap TV mount that allows TVs with a VESA pattern of 300×300 or less to sit directly against the wall for a completely flush look.

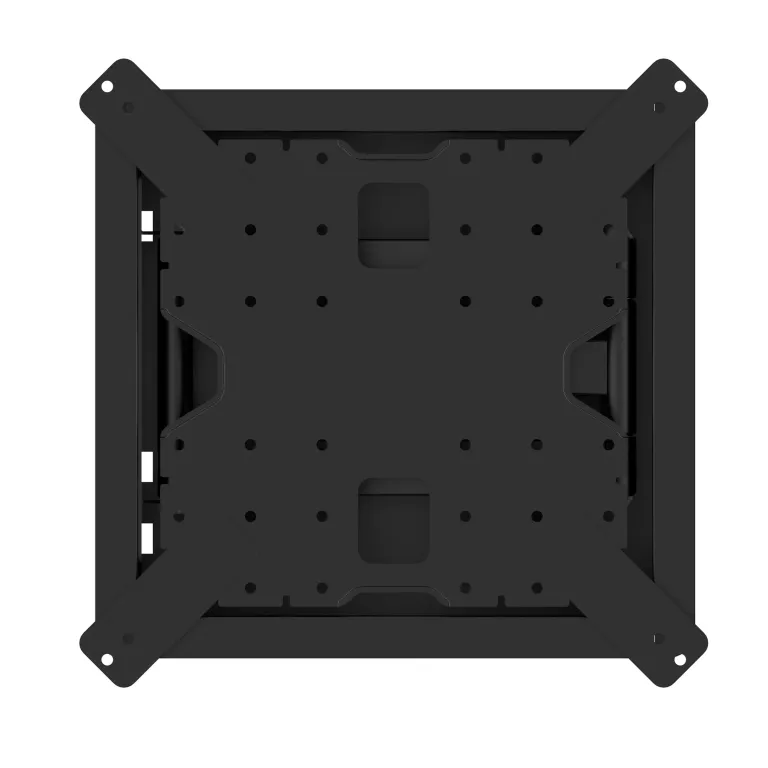

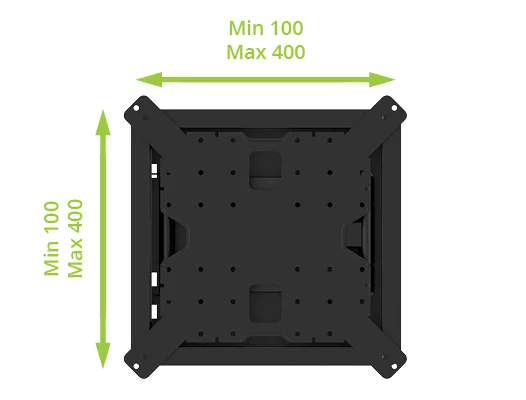

400x400 VESA Support
400×400 VESA patterns are supported with provided extensions. Using these only increases the profile to 0.3″

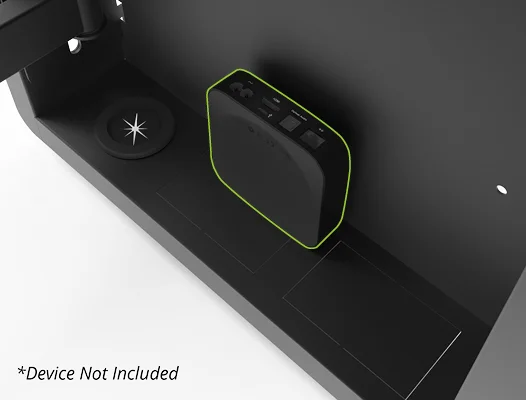

Out of Sight
The recessed box is deep enough to store streaming boxes and other small AV accessories behind the TV for a clean, modern setup.

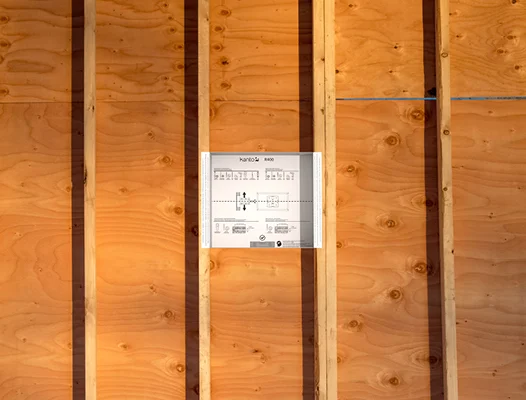

Contractor Friendly
A foldable, in-wall template for new construction can be temporarily placed between studs letting contractors plan cabling and drywall while the mount sits safely in its packaging until needed.

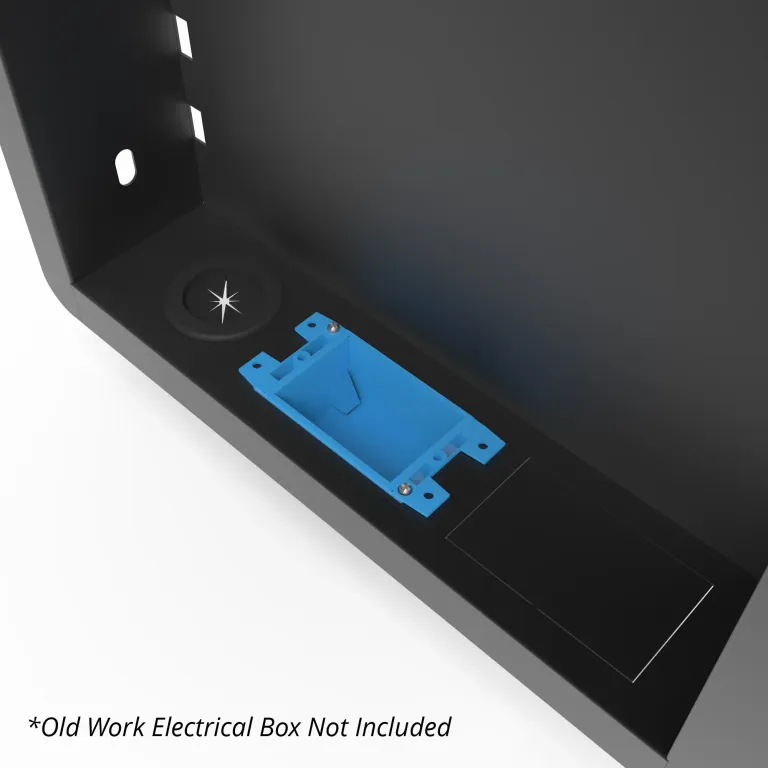

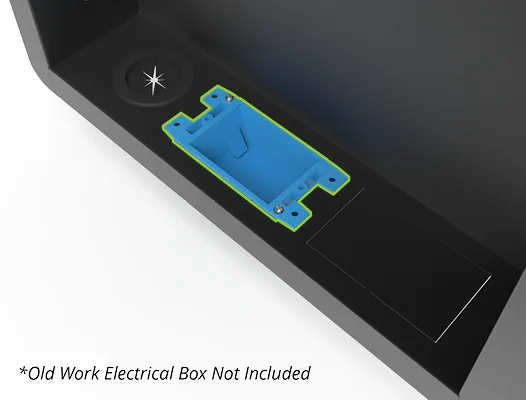

Power Where You Want
Metal knock-outs allow for the installation of power outlets inside the box so you can keep everything needed to power your equipment within the wall.

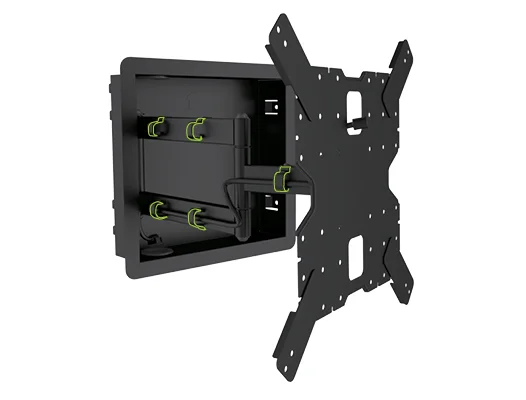

Clean Cabling
Metal cable management clips run along the length of the articulating arm while rubber grommets within the box help you to route your cabling without any mess.
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto R400 In-Wall Recessed TV mount to achieve a flush and professional viewing area.
| Specifications | |
|---|---|
| TV Sizes: | 35” to 65” |
| Weight Allowance: | 80 lb (36 kg) |
| VESA Sizes: | 100×100 to 400×400 |
| MEASUREMENTS | |
| Shipping box weight: | 25.3 lb (11.5 kg) |
| Shipping box dimensions: | 19.9” x 18.3” x 4.9” / (50.5 x 46.5 x 12.5 cm) |
| Product weight: | 23.1 lb (10.5 kg) |
| UPC: | 800152721651 |
| Specifications | |
| What’s Included | R400 Pro-Series Recessed In-wall TV MountDrywall TemplateIn-Wall TemplateHardwareManual(s) |
| Tilt Angle | +9° to -2° |
| Swivel in either direction (dependent on TV size) | 90° |
| Warranty | 10 Years |
