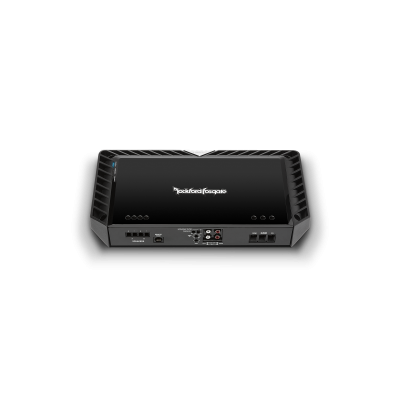

Rockford Fosgate Power Series 1,500 Watt Class-bd Constant Power Amplifier - T1500-1BDCP
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Andre's Electronic Experts offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
$1,619.99 CAD Save $290.00

Or as low as $135.00/month over 12 months. Apply Now


In-store

Literature

The Power T1500-1bdCP is a 1,500 Watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads. The frequency response of the T1500-1bdCP is optimized exclusively for use with subwoofers in cars and trucks.

Overview

The new Constant Power amplifiers are the most powerful amplifiers on the market PERIOD! The T1500-1bdCP is an amplifier for subwoofers based on the legendary T1500-1bd amplifier design with a proprietary "Constant Power" configuration delivering up to 25% more power (Watts) across all impedance loads. The listening experience is cleaner, louder and more impressive than ever before. At 1,500 watts, this monster will run any demo vehicle competing in Sound Pressure Level.Looking for more options? Check out all of our mobile power amps here.

  • 24dB/octave crossover
  • MOSFET power supply
  • MOSFET output stage
  • 4 Gauge power/ground connectors
  • Audiophile grade speaker connections
  • RCA pass-thru outputs
  • Infrasonic filter
  • 2-Year Warranty

Technologies

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

Constant Power

Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.

Class BD

Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

Punch Bass EQ

Pioneered by Jim Fosgate in the early 70's, Punch Bass compensates for acoustical problems common in all cars.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

TO-247 MOSFETs

(left-OLD | right-NEW) Rockford Fosgate amps use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in competitor amps.

Specifications
Number of Channels1
Total Power (Sum of Rated Power)1500 Watts RMS
Rated Power (RMS Continuous Power)1000 Watts x 1 @ 4-Ohm
1500 Watts x 1 @ 2-Ohm
1500 Watts x 1 @ 1-Ohm
Dynamic Power (PVC/PowerCube®)1045 Watts x 1 @ 4-Ohms
1549 Watts x 1 @ 2-Ohms
1715 Watts x 1 @ 1-Ohm
BridgeableNo
Frequency Response20Hz to 250Hz +/- 0.5dB
Input Sensitivity150 mV to 5 V
Circuit Topology ClassClass BD
Efficiency (average)86.2% @ 4-Ohm
74.6% @ 2-Ohm
63.0% @ 1-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0%
Signal InputLow level: 1 RCA pair
Signal OutputLow Level: 1 RCA pair
Tone ControlsBass: 0dB to +18dB @ 45Hz
Infrasonic Filter: -3dB @ 28Hz 12dB/Octave
Crossover ControlsLow-Pass (LP): 35-250Hz 24dB/octave Butterworth
Remote ControlsOptional Remote Punch Bass EQ
(overrides built-in Punch Bass EQ)
Visual IndicatorsPower
Thermal
Protect
Power Wire Gauge4 AWG
Power Input ConnectorBlock
Speaker Wire Gauge8 AWG to 18 AWG
Speaker Output ConnectorScrew terminal barrier strip
CoolingConvection
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)200 A
Average Current Draw (13.8V Music)100 A
Max. Current Draw (13.8V Sinewave)200 A
Suggested Alternator100 A
Dimensions (H x W x D)2.14 x 8.14 x 14.91 (in)
5.42 x 20.68 x 37.86 (cm)
Shipping Weight14.35 Lbs. (6.50 Kg.)
