Rockford Fosgate Power T2 Single 2-Ohm Subwoofer - T2S2-16

$1,79999
Save $32000
Or
as low as
$150.00
Per month over
12 months.


Online Only

Literature

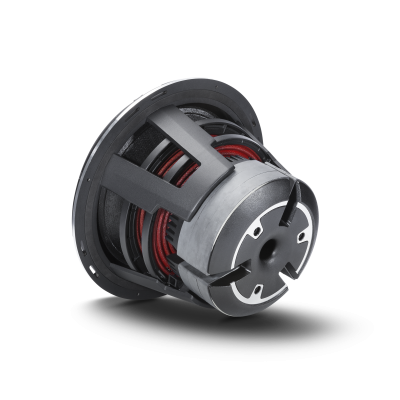

The Power T2S2-16 subwoofer features 16-inches of effective radiating cone area and a single 2-ohm voice coil for ease of wiring.

Overview

This subwoofer is not just another made with off-the-shelf parts, we wanted something better, and we knew our fanatics demand this as well. Since the original Power T2 subwoofer was designed by one of the leading loudspeaker engineers in the world, there were some lofty goals that had to be reached. Work was done from the ground-up to out-perform it's previous family members, while incorporating valuable feedback from our great network of Rockford Fosgate dealers. They wanted it bigger and badder with dual everything, and we feel that goal was crushed. Why 16-inches?  Well, this is a combination of the cone and surround assembly described as the "total effective radiating area".  Since this model is so massive, we incorporated dual spiders for exceptional travel of the cone assembly. The motor structure operates very linear for exceptional sonic quality and the IDHS heat-sink gives the subwoofer impressive power handling capacity. Top it off with proprietary input terminals for large gauge cables to efficiently deliver the needed voltage, and this subwoofer is ready to drop the doom! WARNING: Use caution when installing this subwoofer. It's heavier than Atlas holding a globe on his shoulders.

  • Three layer glass fiber/Aramid honeycomb/Glass fiber cone
  • Aluminum dustcap
  • Injection molded foam surround with VAST™
  • Proprietary surround mechanical clamping ring
  • Dual Nomex progressive spiders with integrated lead wires
  • Aluminum diecast frame with integrated heat sink fins
  • Custom push spring insulated 8 AWG terminals
  • Single layer edge wound aluminum 4" voice coil
  • Detachable die cast aluminum trim ring
  • Vented pole piece
  • Triple stack segmented ferrite motor structure
  • Integrated aluminum heat sinking shorting ring (IDHS)
  • 1 Year Warranty

Technologies

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

Inductive Damping Heat Sink

Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-Magnetic force). Also radiates heat to reduce voice coil temperature.

VAST Surround - Subs

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

FlexFit Basket - Subwoofer

The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.

Anodized Aluminum Voice Coil Former

Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

Stitched Tinsel Leads

Improved reliability and performance by reducing fatigue and possible shorting.

Specifications
Xmax (mm)34
Cutout Diameter15.04 in. (382 mm)
Qts0.49
SPL (dB @ 1w/1m)87
Magnet Weight (oz)529 oz. (15 Kg)
Size16"
Le (mH)0.91
Woofer Displacement0.289 cu. ft. (8.2 Liters)
Vas (Liters)90.1
Qms3.76
Qes0.56
Fs (Hz)28.5
Shipping Weight100.80 Lbs. (45.7 Kg.)
Mounting Depth10.47 in. (266 mm)
Speaker Connector8 AWG slot loaded
Voice Coil Diameter3.96" (100 mm)
Power Handling (Watts RMS)2500 Watts RMS
5000 Watts Max
Nominal Impedance2-Ohm
Re (Ohms)1.6
Sd (cm2)1034
Subwoofer TypeStandard
Voice Coil TypeSingle Voice Coil
Sealed Box Volume (Vb)2.4 cu. ft. (67.9 Liters)
Vented Box Volume (Vb)5.5 cu. ft. (155 Liters)
