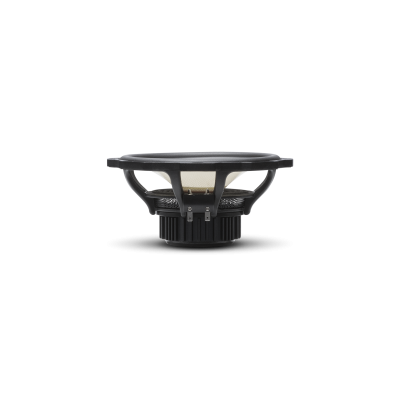

The T3652-S is an audiophile 6.5” 2-way component system designed for sound quality. Rated at 125 Watts RMS, the system includes two woofers with grilles, pair of tweeters, a multi-function crossover and mounting hardware.
Overview
The Power T3 Component Speakers are designed using nearly all the same design cues as it's biggest brother, the Power T5. The LCP (Liquid Crystal Polymer) woofer cones produce the best sound quality a car audio speaker can offer. Best of all, the crossover is easier to mount and features an on/off axis control for parallel door mounting or kick panel/window pillar installation. Need Rockford Fosgate power handling with audiophile sound quality? The T3 component systems are what you need.
- LCP (Liquid Crystal Polymer) fiber cone
- High Excursion Neo Motor Magnetics with Matched Suspension Design
- Integrated Woofer Shorting Ring with External Heat Sinking
- 1.5" (38mm) High Temp Aluminum Woofer Voice Coil Former
- Fatigue and tear resistant linear Nomex spider
- Die cast aluminum frame
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- FlexFit basket design
- Proprietary Dual Function Input Terminals
- 1" (25mm) treated silk surround LCP tweeter with neodymium motor
- DDC (Discreet Dual Clamp) tweeter mounting system
- Flush and surface (angled) tweeter mounting hardware included
- Asymetrical 18dB HP and 12dB LP external crossover network
- Selectable +2.0, -2.dB Tweeter Level Settings
- Selectable bi-amp switching
- Selectable on/off axis setting
- Grilles and mounting hardware included
- 1 Year Warranty
Technologies
VAST Surround (speakers)
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible speakers.
DDC™ Tweeter Mounting
Our DDC™ (Discreet Dual Clamp) Tweeter Mounting provides concentric clamping pressure around the perimeter of the mounting hole. This results in maximum ease of installation.
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
FlexFit Basket - Speaker
The slot mounted frame pattern allows for variable adjustments to the mounting position.
IDHS™ T3/T4 Inductive Damping Heat Sink
Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-magnetic force). Also radiates heat to reduce voice coil temperature.
Specifications | |
---|---|
Power Handling (RMS) | 125 Watts RMS 250 Watts Max |
Frequency Response (Hz) | 40Hz - 30kHz |
Speaker Type | Component System |
Mounting Hardware | YES |
Sensitivity (dB @ 1W/1M) | 87.5 |
Tweeter Mounting Depth | 0.91" (23 mm) |
Tweeter Size (Nominal Diameter) | 1" (25 mm) |
Midrange Mounting Depth | 2.79" (71 mm) |
Midrange Size (Nominal Diameter) | 6.5" |
Crossover | 3kHz 18dB/Octave High-Pass 12dB/octave Low-Pass |
Grille/Trim Ring Included | YES |
Shipping Weight | 9.95 Lbs. (4.51 kg.) |
Nominal Impedance (Ohms) | 4-Ohm |
