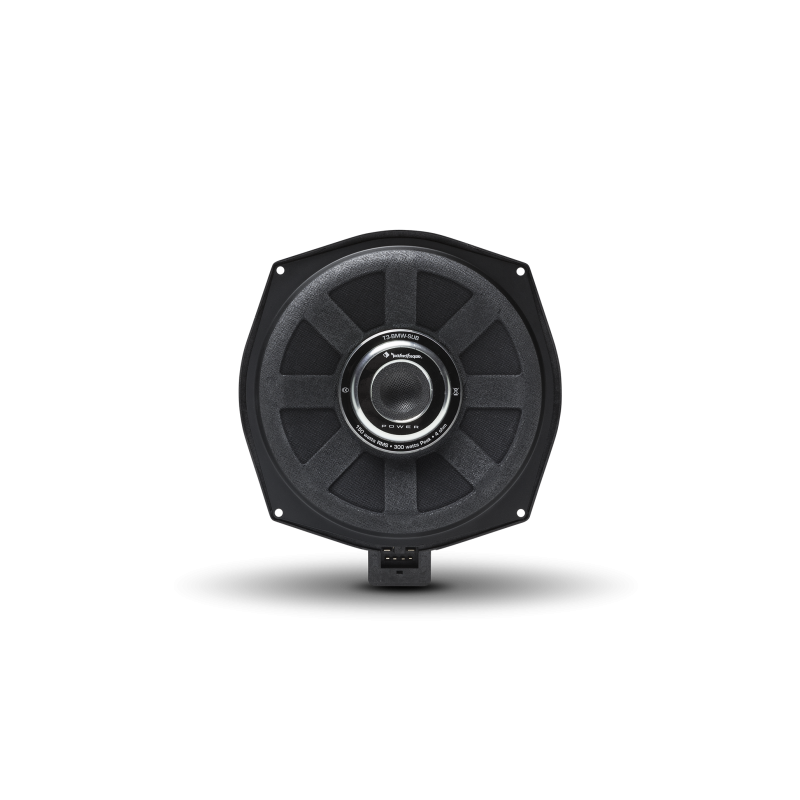

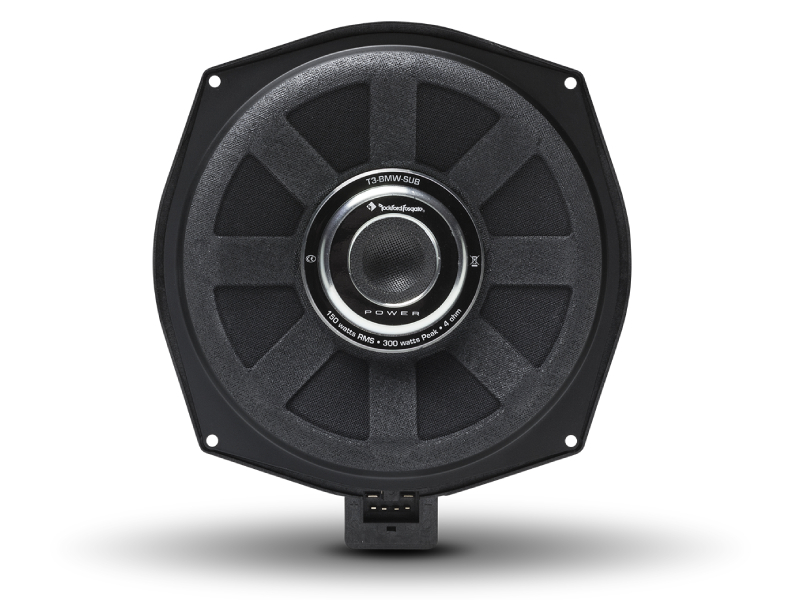

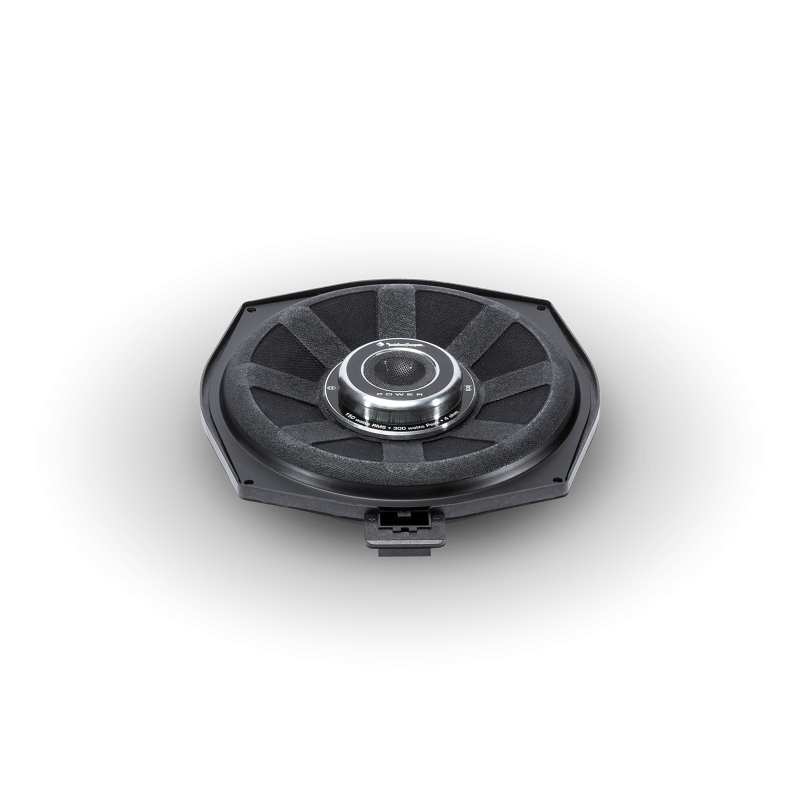

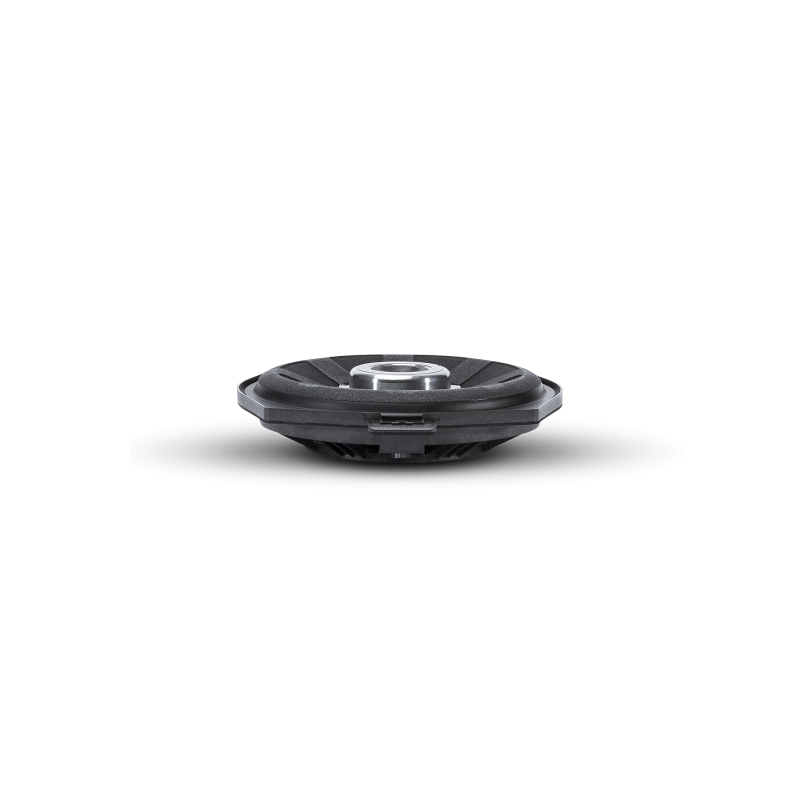

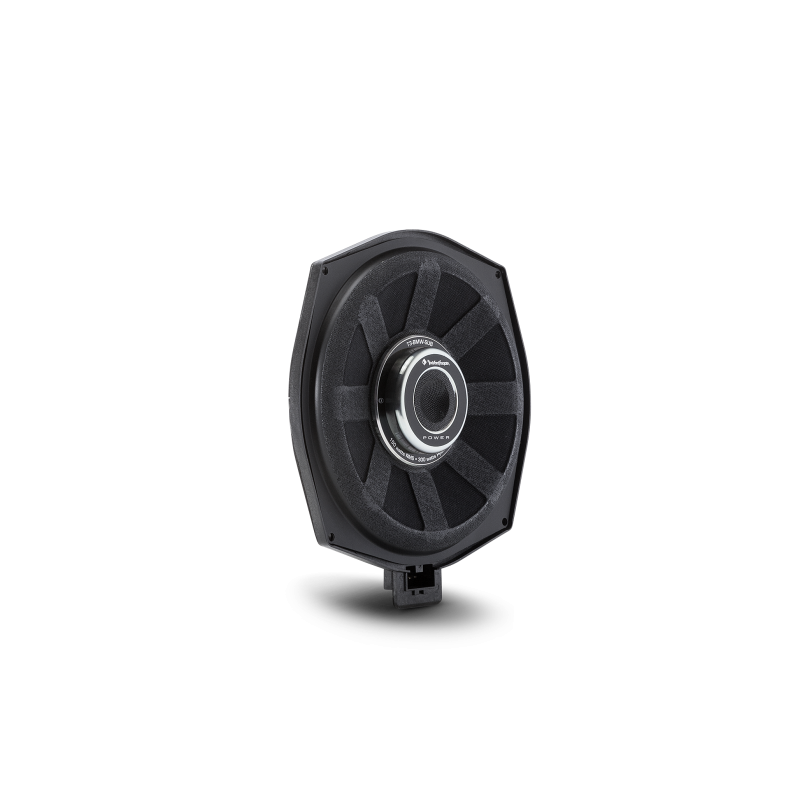

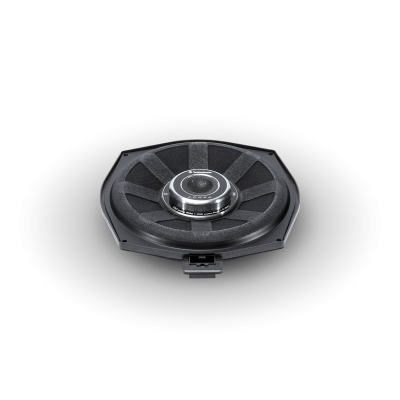

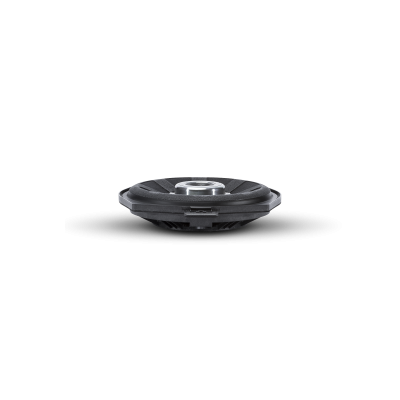

The Power T3-BMW-SUB is an 8” slim subwoofer designed as a direct fit replacement/upgrade for select BMW® models. Speaker features a BMW® factory connector and 150 watt power handling capacity.
Overview

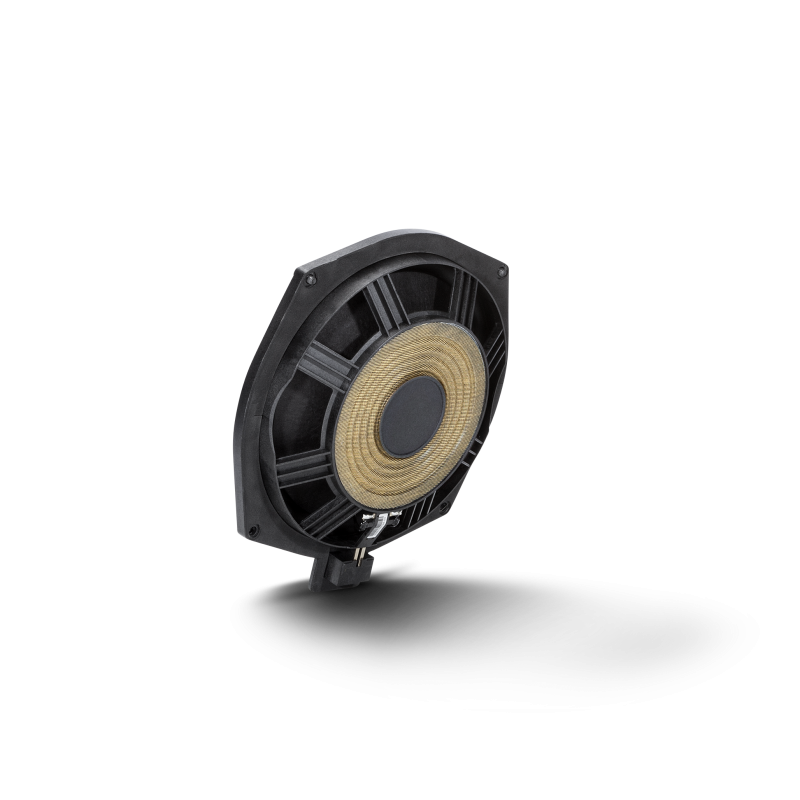

The T3-BMW-SUB is a direct fit subwoofer intended to replace or upgrade factory models installed in select BMW® vehicles (see compatibility chart). The speaker is designed using a neodymium motor and glass fiber sandwich cone and rubber surround. Sub features the BMW® factory connector for easy plug-n-play operation. Made in Germany.
- Glass fiber reinforced poly‐carbonate frame
- NBR rubber surround
- Bimax spider
- Neodymium magnet
- 2" voice coil with high temp aluminum former
- Designed to replace factory OEM BMW 8" woofer
- Includes original BMW connectors
- 1 Year Warranty
Technologies
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

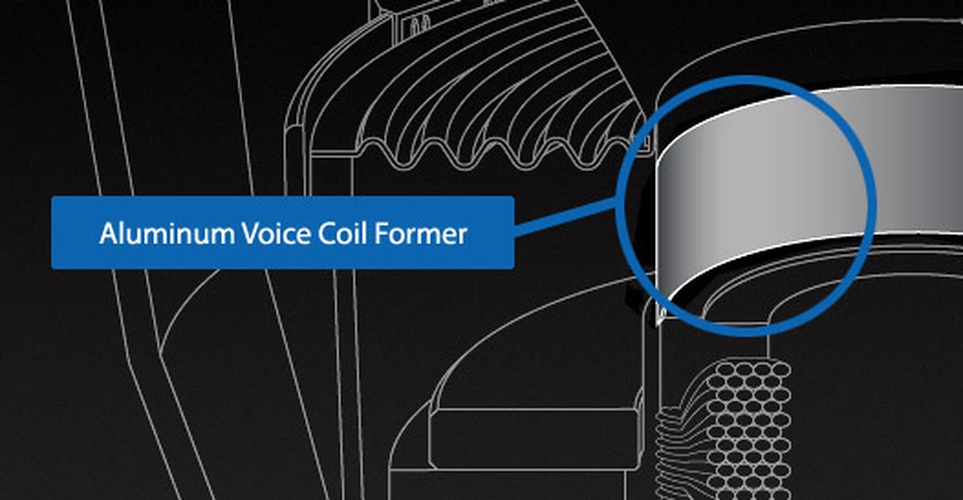

Anodized Aluminum Voice Coil Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
| Specifications | |
|---|---|
| Size | 8" |
| Power Handling (Watts RMS) | 150 Watts RMS 300 Watts Max |
| Speaker Connector | Custom BMW® Terminal |
| Shipping Weight | 3.85 Lbs. (1.7 Kg.) |
| Fs (Hz) | 38 |
| Qes | 0.63 |
| Cutout Diameter | 7.7 in. (195 mm) |
| Nominal Impedance | 4-Ohm |
| Voice Coil Diameter | 2.0" (50.80 mm) |
| Mounting Depth | 1.2 in. (31.2 mm) |
| Qts | 0.49 |
| Qms | 2.26 |
| SPL (dB @ 1w/1m) | 88 |
| Vas (Liters) | 40.6 |
| Xmax (mm) | 7 |
| Re (Ohms) | 3.7 |
| Le (mH) | 0.61 |
| Sd (cm2) | 243 |
