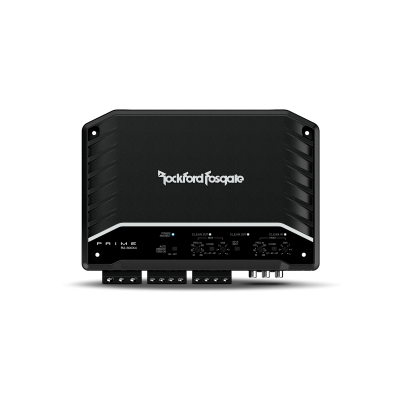

Primed for Performance, the R2-300X4 amplifier is a 300 watt, full-range class-D, capable of operating at 4Ω or 2Ω stereo, and 4Ω bridged/mono. This amplifier is extremely efficient because of its class D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases. R2 Amplifier Product Overview
Overview
The Prime Series were developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.
- Balanced Differential Inputs with RCA Pass Through Outputs
- High Level Input Capable
- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
- Features C.L.E.A.N. Set-up
- 2/4 Channel Input Selection Switch
- Front and Rear Variable Input Gain adjustment level
- Top Mounted Control Panel
- Short Circuit & Over Current Protection
- CEA-2006 Compliant & CE Compliant
- Cast aluminum heat sink
- Full Range Class D
- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
- 1 Year Warranty
Technologies
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
Full Range Class-D
A full-range version of the Class-D topology which is a high efficiency amplifier design that reduces current consumption from the charging system.
P.O.W.E.R.
Power supply circuit design that allows the amplifier to increase output power as voltage increases.
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.
MEHSA 4 (Maximum Efficiency Heat Sink Application)
MEHSA4 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
| Specifications | |
|---|---|
| Speaker Wire Gauge | 8 AWG |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Compression Terminal Block |
| Visual Indicators | Power/Protect C.L.E.A.N. In C.L.E.A.N. Out (front) C.L.E.A.N. Out (rear) |
| Remote Controls | No |
| Signal Output | Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input) |
| Tone Controls | No |
| Crossover Controls | Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Rear High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth All-Pass: Yes |
| Circuit Topology Class | Class D |
| Total Harmonic Distortion (THD+Noise) | 4Ω: <1.0% 2Ω: <1.0% |
| Signal Input | Front Low-Level: 4 RCA Front High-Level: 4-Pin Molex Rear Low-Level: 4 RCA Rear High-Level: 4-Pin Molex Input Switch: 2/4 Input (works for RCA/hi-level inputs) |
| Frequency Response | 20 Hz - 20 kHz |
| Input Sensitivity | Low-Level: 150 mV - 4 V High-Level: 450 mV - 12 V |
| Bridgeable | Yes |
| Dynamic Power (PVC/PowerCube®) | 70 Watts x 4 @ 4Ω 115 Watts x 4 @ 2Ω 230 Watts x 2 @ 4Ω Bridged/Mono |
| Rated Power (RMS Continuous Power) | 50 Watts x 4 @ 4Ω 75 Watts x 4 @ 2Ω 150 Watts x 2 @ 4Ω Bridged/Mono |
| Number of Channels | 4 |
| Total Power (Sum of Rated Power) | 300 Watts |
| Speaker Output Connector | Compression Terminal Block |
| Cooling | Convection |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 60 A |
| Max. Current Draw (13.8V Sinewave) | 39 A |
| Dimensions (H x W x D) | 1.9" x 6.8" x 10.1" (4.9 cm x 17.3 cm x 25.5 cm) |
