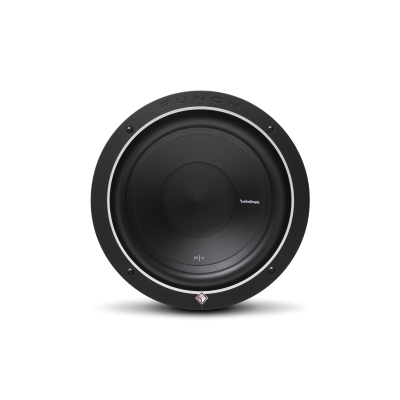

Rockford Fosgate P1 10” is the first in a family of famous “Punch” subwoofers. The P1S2-10 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.
Overview
Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS tri trim ring.
- Linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Rubberized ABS trim ring with optional grille
- Custom 10-AWG nickel plated push terminals
- Extended pole piece and bumped vented backplate
- Protective PVC textured magnet cover
- 1 Year Warranty
Technologies
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Anodized Aluminum Voice Coil Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

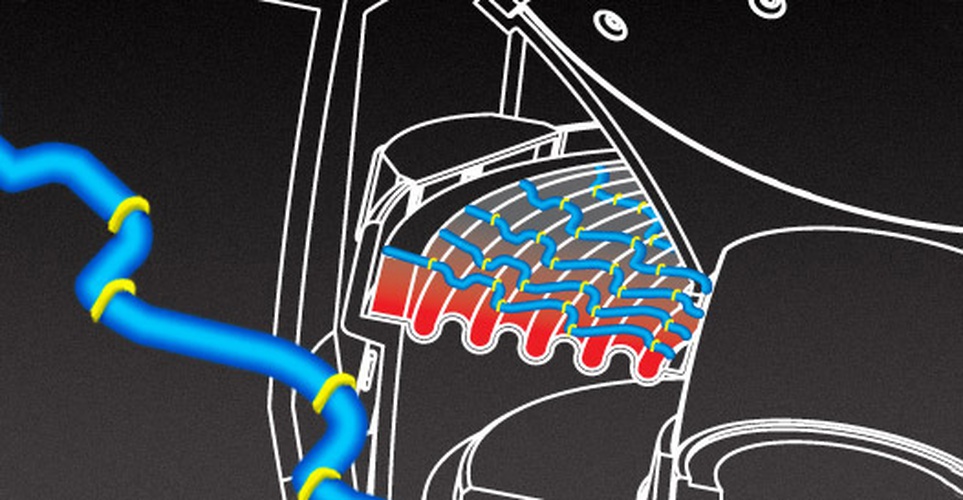

Stitched Tinsel Leads
Improved reliability and performance by reducing fatigue and possible shorting.
FlexFit Basket - Subwoofer
The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
Specifications | |
---|---|
Nominal Impedance | 2-Ohm |
Power Handling (Watts RMS) | 250 Watts RMS 500 Watts Max |
Voice Coil Diameter | 2.0" (51.6 mm) |
Mounting Depth | 5.33 in. (135.4 mm) |
Shipping Weight | 11.1 Lbs. (5.03 kg) |
Fs (Hz) | 30 |
Qms | 2.70 |
Xmax (mm) | 9.0 |
Re (Ohms) | 1.60 |
Size | 10" |
Magnet Weight (oz) | 45 oz. (1.28 kg.) |
Speaker Connector | Dual 10 AWG compression |
SPL (dB @ 1w/1m) | 85 |
Qts | 0.52 |
Qes | 0.75 |
Cutout Diameter | 9.14 in. (232 mm) |
Woofer Displacement | 0.056 cu. ft. (1.6 Liters) |
Vas (Liters) | 1.4 |
Le (mH) | 1.16 |
Sd (cm2) | 370 |
Subwoofer Type | Standard |
Voice Coil Type | Single Voice Coil |
Sealed Box Volume (Vb) | 0.59 cu. ft. (16.7 Liters) |
Vented Box Volume (Vb) | 1.4 cu. ft. (39.6 Liters) |
