Rockford Fosgate Punch 400 Watt Full-Range 4-Channel Amplifier - PBR400X4D
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Andre's Electronic Experts offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
$409.99 CAD Save $80.00

Or as low as $68.33/month over 6 months. Apply Now


In-store

Literature

The Punch PBR400X4D is a 400 Watt full-range amp designed for compact systems. This efficient 4-channel amp packs a Punch in UTVs, motorcycles, and hybrid-electric vehicles without sucking a lot of juice from your electrical system.

Overview

The Rockford PBR400X4D is a full-range 4-channel amplifier designed for stereo front/rear systems that requires little space. The BRT (Boosted Rail Technology) is an ultra efficient design that generates 400 Watts of power! The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. Great for motorcycles and recreational vehicles.

  • Full Range Class D
  • Differential inputs with high level auto turn-on feature
  • 8 AWG power/ground connector
  • Remote-Out feature when using high level inputs
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Real time output and power supply thermal sensing
  • Extruded aluminum heatsink
  • Selectable Fixed 12dB/Octave Butterworth Crossovers
  • Muted turn on
  • Rockford Fosgate proprietary protection
  • Discrete surface mount technology
  • Compact design for stealth installations
  • CEA-2006 and CE compliant
  • 1 Year Warranty

Technologies

Full Range Class-D

A full-range version of the Class-D topology which is a high efficiency amplifier design that reduces current consumption from the charging system.

CEA-2006 (amplifier)

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

DSM

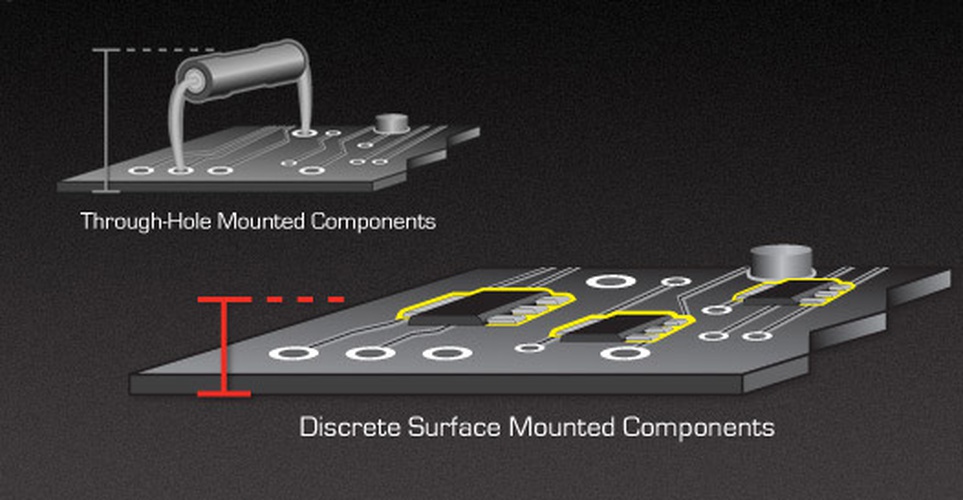

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.

Specifications
Number of Channels4
Total Power (Sum of Rated Power)400 Watts
Rated Power (RMS Continuous Power)50 Watts x 4 @ 4-Ohm
100 Watts x 4 @ 2-Ohm
200 Watts x 2 @ 4-Ohm Bridged
Dynamic Power (PVC/PowerCube®)75 Watts x 4 @ 4-Ohm
130 Watts x 4 @ 2-Ohm
270 Watts x 2 @ 4-Ohm Bridged
BridgeableYes
Frequency Response20Hz - 20kHz +/- 1dB
Input Sensitivity150 mV to 12 V
Circuit Topology ClassClass D
Efficiency (average)> 75%
Total Harmonic Distortion (THD+Noise)4-Ohm < 1.0
2-Ohm < 1.0
Signal InputInput Switch: 2ch/4ch input switch
Hi-Level: Variable DC offset sensitivity
High-Level: Harness
Low-Level: 2 Pair RCA
Signal Output
Tone Controls
Crossover ControlsHigh-Pass: 60Hz or 80Hz @ 12dB/Octave
Low-Pass: 80Hz @ 12dB/Octave
Remote Controls
Visual IndicatorsPower: Blue
Protect: Red
Input Clip: Red
Output Clip: Blue/Violet/Red
LED Color Legend
BLUE: <0.5% TDH
VIOLET: 1% THD
RED: ≥10% THD
Power Wire Gauge8 AWG
Power Input ConnectorDetachable Compression Terminal
Speaker Wire Gauge16 AWG
Speaker Output ConnectorFront: 4-Pin Harness
Rear: 4-Pin Harness
CoolingConvection
HeatsinkExtruded Aluminum
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)60 A
Average Current Draw (13.8V Music)27 A
Max. Current Draw (13.8V Sinewave)50 A
Suggested Alternator75 A
Dimensions (H x W x D)1.53 x 4.25 x 6.75 (in)
3.9 x 10.79 x 17.16 (cm)
Shipping Weight3.1 Lbs. (1.4 Kg.)
