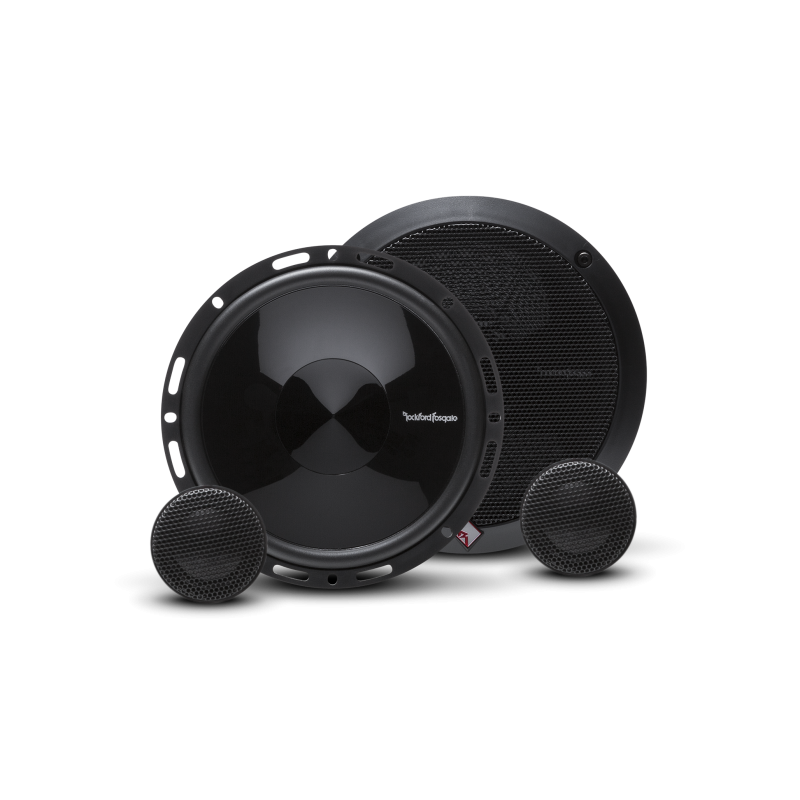

The Punch P165-SI is a P1 component system with a separate tweeter and a true 6.5" midrange optimized for a wide variety of U.S., European, and import vehicles. Supplied with integral tweeter crossover.
Overview
Car audio fanatics will love the Punch series 6.5" component system. It features a Flex Fit2™ basket to ensure compatibility with U.S., European, and import vehicles. European installers will love this new "European Basket" to easily fit a variety of VW, Citroen, and Vauxhall models. The system also features an ICC (Integrated Concealed Crossover), eliminating the need to mount any black boxes.

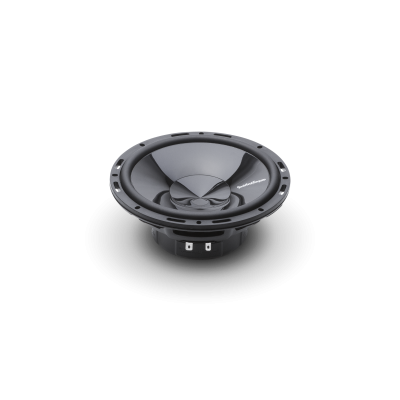

- Injection molded mineral filled polypropylene cone
- Linear high excursion matched motor magnetics and suspension design

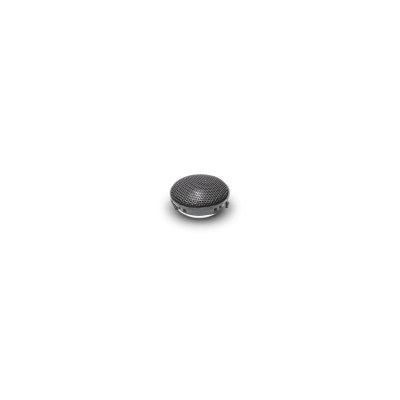

- 1" treated PEI dome tweeter
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Santoprene rubber surround
- FlexFit 2 mounting
- Integrated concealed 12dB/Octave crossover components
- Stamp-cast aluminum frame
- DDC (Discreet Dual Clamp) tweeter mounting system
- Flush and surface (angled) tweeter mounting hardware included

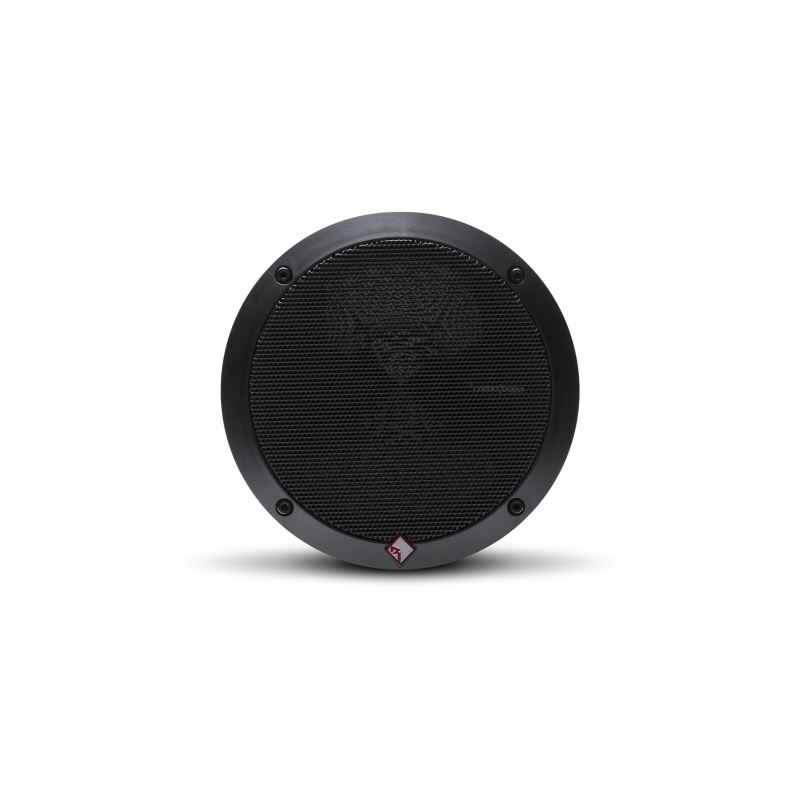

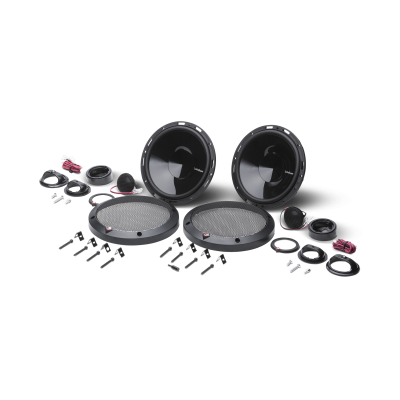

- Grilles and mounting hardware included
- 1 Year Warranty
Technologies
DDC™ Tweeter Mounting
Our DDC™ (Discreet Dual Clamp) Tweeter Mounting provides concentric clamping pressure around the perimeter of the mounting hole. This results in maximum ease of installation.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible speakers.
VAST Surround (speakers)
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
FlexFit 2 Basket - Speaker
The slot mounted frame pattern allows for variable adjustments to the mounting position, especially for Euro-Fit installations.
| Specifications | |
|---|---|
| Midrange Size (Nominal Diameter) | 6.5" |
| Tweeter Mounting Depth | 0.50" (13 mm) |
| Crossover | Tweeter crossover built into midrange basket 12dB/octave |
| Sensitivity (dB @ 1W/1M) | 88 |
| Mounting Hardware | Yes |
| Shipping Weight | |
| Nominal Impedance (Ohms) | 4-Ohm |
| Speaker Type | Component System |
| Midrange Mounting Depth | 2.24" (57 mm) |
| Power Handling (RMS) | 60 Watts RMS 120 Watts Max |
| Grille/Trim Ring Included | Yes |
| Tweeter Size (Nominal Diameter) | 1.0" (25.4 mm) |
| Frequency Response (Hz) | 44Hz - 20kHz |
