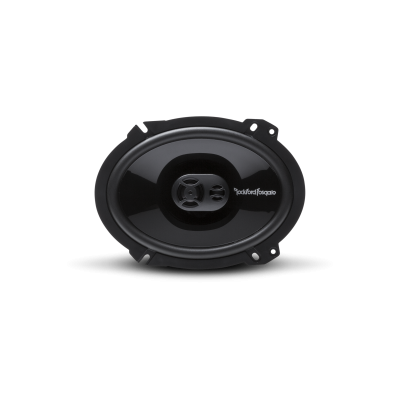

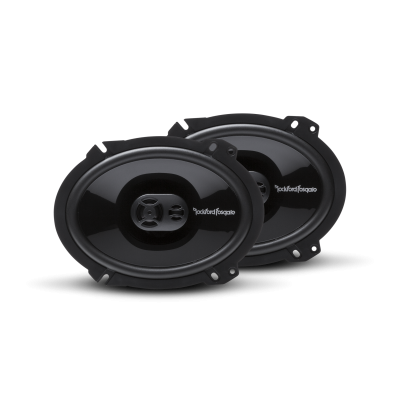

The P1683 is a 6"x8" 3-way full-range speaker rated at 65 watts RMS designed for fanatics needing a quality factory replacement driver. Includes two speakers, integrated high-pass crossovers and mounting hardware.
Overview
Fanatics that need a great sounding speaker to replace factory installed garbage will certainly benefit from this Punch series full-range speaker. The P1683 offers a Flex Fit™ basket to ensure compatibility with odd shaped factory speaker locations and an ICC (Integrated Concealed Crossover), eliminating the need to mount any black boxes.
- FlexFit basket design
- OEM adapter plate included
- PEI dome tweeter
- Butyl midrange rubber surround
- Injection molded mineral filled polypropylene cone
- 1 Year Warranty
Technologies
VAST Surround (speakers)
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible speakers.
| Specifications | |
|---|---|
| Nominal Impedance (Ohms) | 4-Ohm |
| Speaker Type | 3-Way Coax |
| Midrange Size (Nominal Diameter) | 6"x8" |
| Crossover | n/a - tweeter has built-in crossover |
| Sensitivity (dB @ 1W/1M) | 90dB |
| Sensitivity (dB @ 1W/1M) | 90dB |
| Grille/Trim Ring Included | No |
| Mounting Hardware | Yes |
| Shipping Weight | 4.9 Lbs. (2.22 Kg.) |
| Midrange Mounting Depth | 2.28" (58mm) |
| Tweeter Size (Nominal Diameter) | 0.75" (19.0mm) |
| Power Handling (RMS) | 65 Watts RMS 130 Watts Max |
