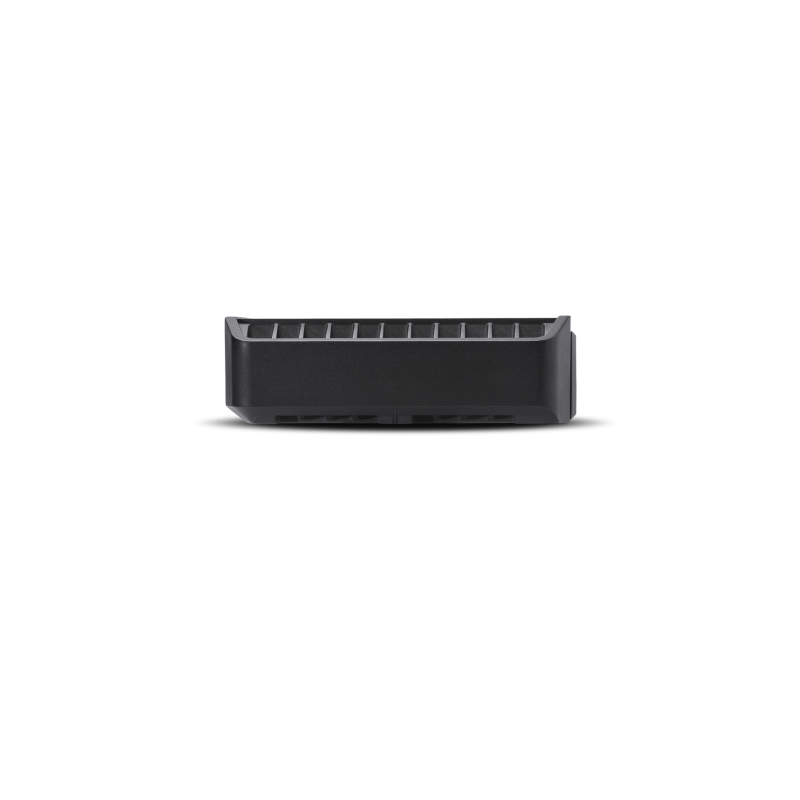

Rockford Fosgate Punch 600 Watt 4-Channel Amplifier - P600X4

$82999
Or
as low as
$138.33
Per month over
6 months.


  • Delivery
    Pick Up
    You have selected the option to deliver this product.

    At this point of time, online shopping is available only in British Columbia.

    Add to cart
    Enter the postal code
Available to order

Literature

The Punch P600X4 is a 4-channel amplifier producing 150 Watts into all four channels at 2-Ohm. The P600X4 is perfect for a 4-way full-range system or a 3-way system having a front stage with subwoofers on the rear channels.

Overview

The Punch P600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.

  • High level input capable with Auto Turn-On circuit
  • RCA pass-thru outputs
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • 1 Year Warranty

Technologies

CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).

CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

Balanced Differential Inputs

Differential inputs eliminate noise picked up by signal cables.

TRANS•ana

Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.

DTM

Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

MEHSA3

MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD

NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

C.L.E.A.N. Set-Up

C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Specifications
CoolingConvection
Speaker Output ConnectorCaptive C-Clamp
Speaker Wire Gauge8 AWG to 18 AWG
Power Wire Gauge4 AWG
Power Input ConnectorCaptive C-Clamp
Visual IndicatorsPower/Protect/Thermal LED
Input Clip LED3
Output Clip LED1,2,3
LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Remote ControlsOptional Punch Level Control (PLC2) Ready
Crossover ControlsFront/Rear High-Pass (HP): 50Hz-250Hz @ 12dB/octave Butterworth
Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth
All-Pass: Yes
Signal OutputLow level: 1 RCA pair
Tone ControlsFront Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
Function depends upon LP/AP/HP switch position
Signal InputHi/Low level: 2 RCA pair
Circuit Topology ClassClass A/B
Efficiency (average)68% @ 4-Ohm
Total Harmonic Distortion (THD+Noise)4-Ohm: <1.0%
2-Ohm: <1.0%
Input Sensitivity150 mV - 12 V
Frequency Response20Hz to 20kHz +/- 1.0dB
BridgeableYes
Dynamic Power (PVC/PowerCube®)129 Watts x 4 @ 4-Ohms 0° Res
211 Watts x 4 @ 2-Ohms 0° Res
Rated Power (RMS Continuous Power)75 Watts x 4 @ 4-Ohm
150 Watts x 4 @ 2-Ohm
300 Watts x 2 @ 4-Ohm Bridged
Total Power (Sum of Rated Power)600 Watts
Number of Channels4
Operating Voltage9 - 16 VDC
Recommended Fuse (not included)100 A
Average Current Draw (13.8V Music)45 A
Max. Current Draw (13.8V Sinewave)90 A
Suggested Alternator75 A
Dimensions (H x W x D)2.38 x 7.76 x 13.28 (in)
6.05 x 19.71 x 33.73 (cm)
Shipping Weight12.8 Lbs. (5.80 Kg.)
