Rockford Fosgate Punch Marine Compact AM,FM,WB Digital Media Receiver Display - PMX-2
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Andre's Electronic Experts offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
$609.99 CAD Save $110.00

Or as low as $101.67/month over 6 months. Apply Now


Available to order

Literature

The PMX-2 is an AM/FM/WP tuner and compact digital media receiver with a 2.7" full color display.

Overview

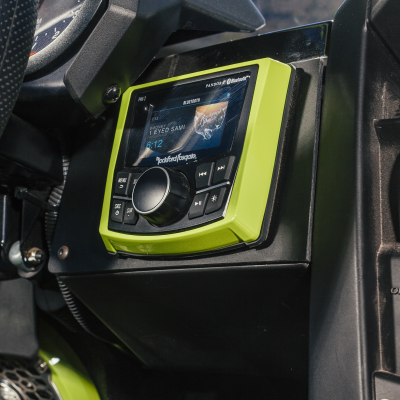

The PMX-2 compact digital media receiver is designed for marine and motorsports applications. The PMX-2 features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such Pandora control capabilities and Bluetooth audio steaming with album art support1 this unit becomes a true command center of any system. 1Android devices equipped with limited functionality. Please refer to owners manual for details. Output flexibility comes with a 4x50W @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of after-market amplifiers for more power and output. Add-in the EEPROM memory system, custom GUI interface, and wired remote expansion capabilities and you have the only media receiver you'll ever need.

  • ISO8846/SAE J1171 Ignition Protection Certified
  • Pandora Internet Radio
  • A2DP and AVRCP Bluetooth Wireless Streaming
  • FCC, CE, IC, and C-Tick Certified
  • Multi Region Radio Frequencies
  • Low Voltage Warning Alert
  • AUX and USB Inputs with USB Charging
  • On Board Punch EQ Control
  • iPod playback with on-screen display
  • Independent Subwoofer Level Control
  • Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
  • IPX6 Marine Grade for prevention of water intrusion
  • 7-Band Graphic EQ
  • 2.7" full color display w/ auto dimming backlightning
  • AM / FM / WB Tuner
  • Zone Control: 1 Zone / 1 Source (F/R or Sub)
  • *Antenna not included
  • 2-Year Warranty

Technologies

Pandora®

Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.

Element Ready™ - Source Units

These source units are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

Made for iPod/iPhone

This device supports the Apple "Made for iPod/iPhone" protocol.

Built In Bluetooth®

Built In Bluetooth®

Made for Android

This device supports the Google "Made for Android" protocol.

USB Playback

This source unit supports playback from a USB device.

ASTM B117 & D4329 Tested

ASTM B117 & D4329 Tested

IPX6 Water Intrusion Rating

IPX6 Water Intrusion Rating

FLAC

The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that audio is compressed in FLAC without any loss in quality.

Specifications
FM TUNER Sensitivity8 dB
AM TUNER Frequency Range530 kHz - 1710 kHz
AM TUNER Usable Sensitivity40 dB
RCA Output Voltage2V RMS
Does not clip at full output
RCA Output Impedance500Ω
Operating Voltage10.5 V - 16 V
Speaker Impedance2-Ohms
Fuse Rating20 A
Dimensions (HxWxD)Width 4.5" (11.5cm)
Face Depth 1.5" (3.8cm)
Mount Depth 2.9" (7.4cm)
Height 4.2" (10.6cm)
USB Capacity32Gb max
999 Folders max
999 Songs max
MEDIA PLAYER Audio Format CompatibilityMP3
WMA
FLAC
AAC
DRM
TUNERN/A
Compatible RemotesPMX-1R
PMX-0R
(3 Remote Limit, 100 ft Total Wired Distance)
Android CompatibilityBluetooth® Only
SPEAKER OUTPUTSYes
Device TypeDigital-Media Receiver
Pandora® Internet Radio (Yes/No)Yes
Bluetooth® (Yes/No)Yes
3.0+EDR, A2DP 1.3
WB TUNER Frequency Range162.40 - 162.55
(US & Canada)
TUNER Number Of Presets18 FM / 12 AM / 6 WB
USB Version2.0
USB Charging (Yes/No)Yes
Steering Wheel Control Ready(Yes/No)No
Frequency Response20 Hz - 20 kHz
Multi-Zone/Multi-Source (Yes/No)No
FM TUNER Frequency Range87.5 MHz - 107.9 MHz
Clock (Yes/No)No
Speaker Outputs (Yes/No)Yes (4-channel)
Made for iPod ModelsiPod Touch (5th generation)
iPod Touch (4th generation)
iPod Nano (7th generation)
iPod Nano (6th generation)
RCA OUTPUTS(1 pr) Front
(1 pr) Rear (or Sub-out)
Display Size2.7" Color TFT
SiriusXM-Ready® (Yes/No)No
USB Output Current1A
FEATURESN/A
Made for iPhone ModelsiPhone XS (pending)
iPhone XS Max
iPhone XR (pending)
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
iPhone 6s Plus
iPhone 6
iPhone 6 Plus
iPhone 5S
iPhone 5C
iPhone 5
iPhone 4
iPhone 4S
Phone 3GS
Apple®/Android™ Compatible (Yes/No)Yes
Limited functionality on Android. See owners manual.
AUX Input (Yes/No)Yes (1pr)
GENERALN/A
Back Panel Cutout3" (77mm)
Shipping Weight3 Lbs. (1.36 Kg)
